RDL01 LED Downlight

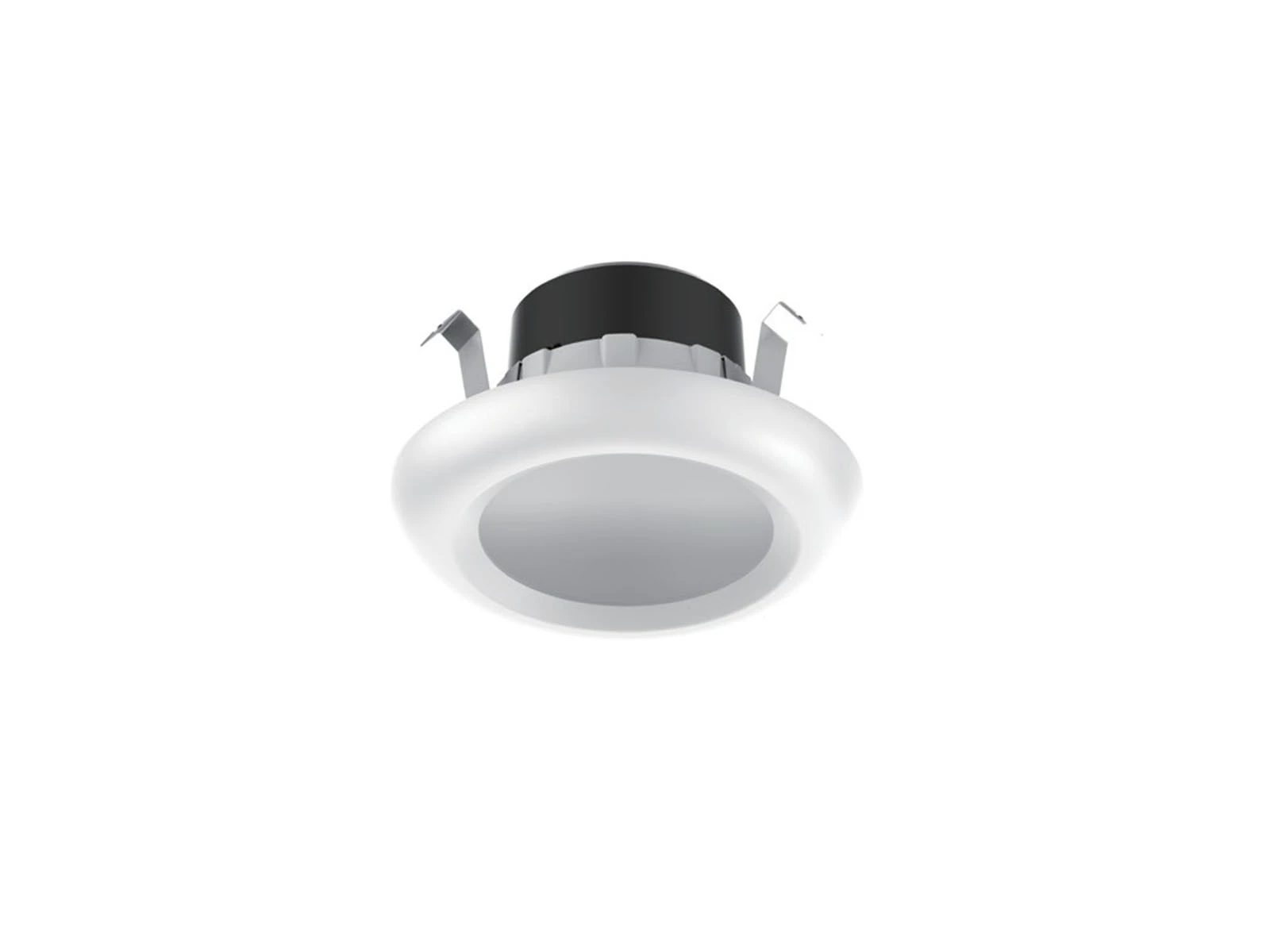

RDL01 LED Downlight 2
RDL01 LED Downlight 3
RDL01 LED Downlight 4
RDL01 LED Downlight
RDL01 LED Downlight 2
RDL01 LED Downlight 3
RDL01 LED Downlight 4
RDL01 LED Downlight
LED Downlights

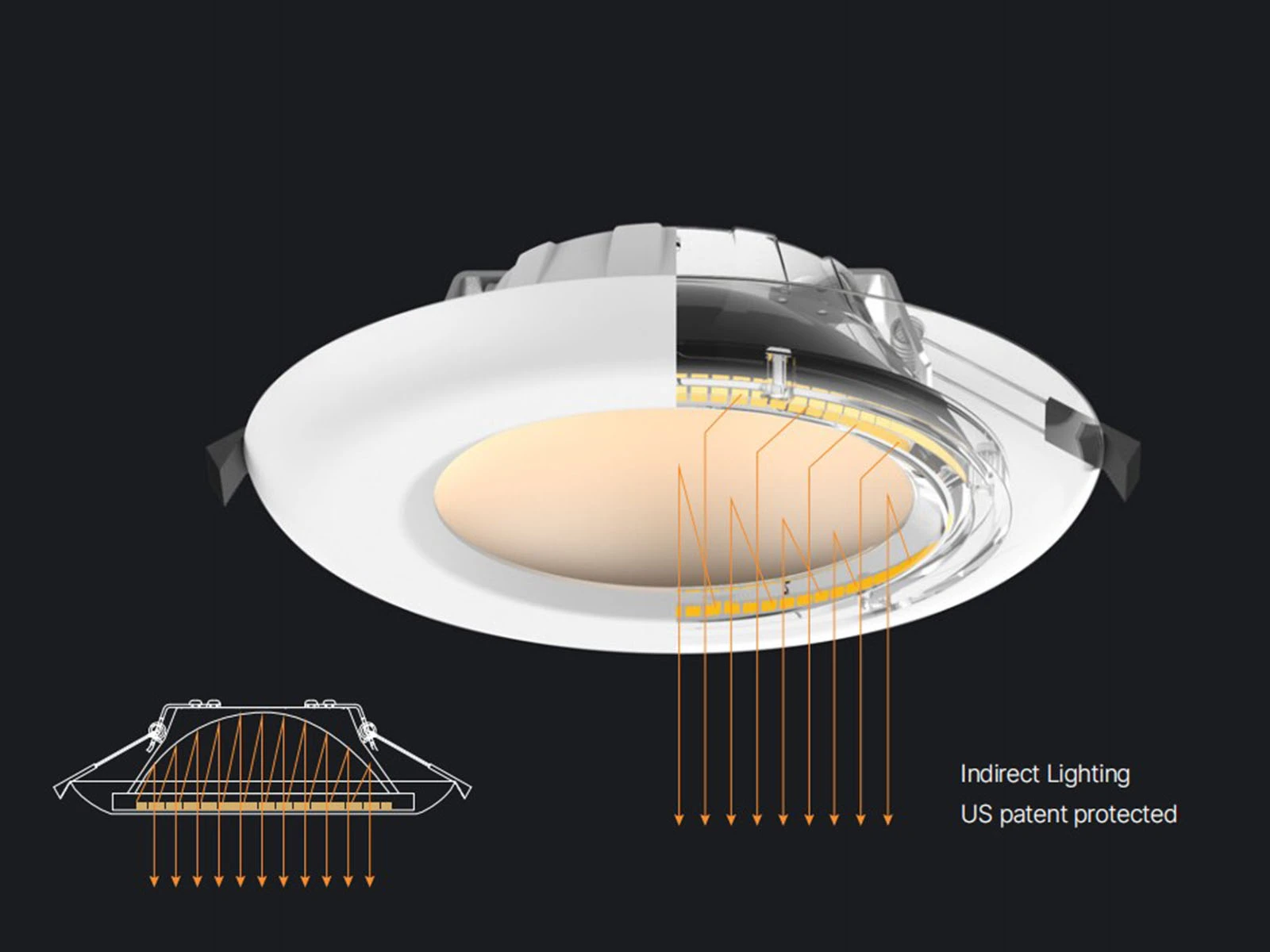

RDL01 is a patented indirect lighitng design comprehensive LED downlight module compatible with 4", 5", and 6" aperture recessed downlights, ideal for new construction, remodels, and retrofit installations. Its impact-resistant frosted acrylic diffuser ensures uniform illumination. Adding to its convenience, a field-selectable color temperature switch lets users choose from five different color temperatures to suit their needs. An E26 medium screw-base connector is available for both Haiou and spring styles.
etl5warranty3cct-selecttriacdry-location90cri110degpatent
Datasheet IES Testing Report

Features

  • Expected Life: Projected life of at least 50, 000 hours.
  • Lens: Frosted, impact-resistant acrylic.
  • Electrical: Universal voltage (100-130VAc)input, 50/60 Hz.
  • Driver: High-performance driver features over-voltage over-current, and  short-circuit protection.
  • Finish: All reflective surfaces are finished with a high-reflectance, lighting  fixture white polyester powder.  Certification: ETL.
  • Warranty: Limited 5-Year Warranty.

Dimension

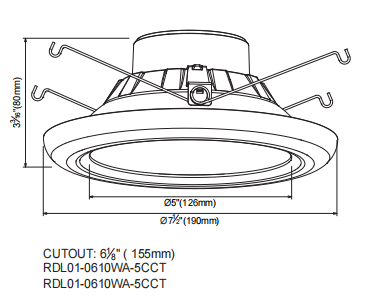

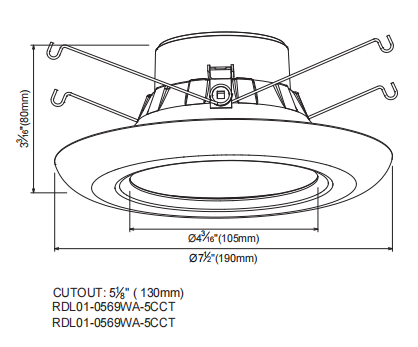

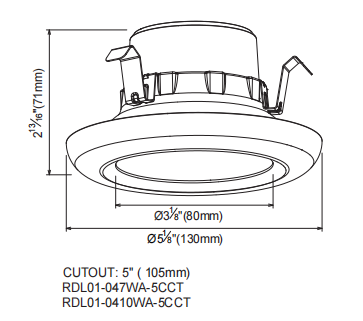

RDL01 047WA downlight sizeRDL01 0610WA downlight sizeRDL01 0569WA downlight size

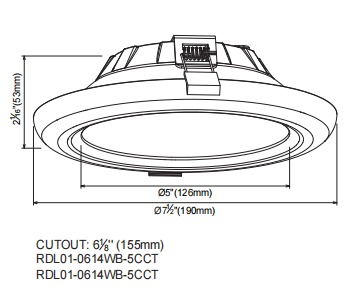

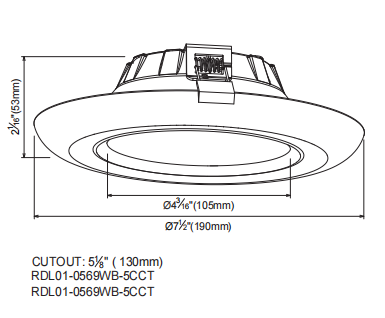

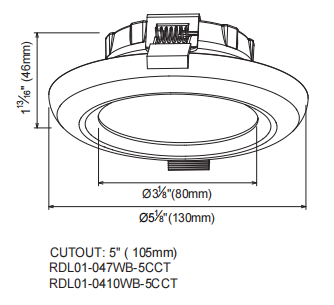

RDL01 047WB downlight sizeRDL01 0614WB downlight sizeRDL01 0569WB downlight size

Performance Summary

Part NO. Length Max power Luminous Flux Luminous Efficacy Dimming Input voltage Certufucale
RDL01-047WA-5CCT-WH 4” A 7W 580-630LM 90LM/W Triac 100-130VAC ETL
RDL01-569WA-5CCT-WH 5”& 6” A 9W 725-785LM 100LM/W
RDL01-0610WA-5CCT-WH 6” A 10W 905-985LM 100LM/W
RDL01-047WB-5CCT-WH 4” B 7W 590-645LM 90LM/W
RDL01-569WB-5CCT-WH 5”& 6” B 9W 700-755LM 90LM/W
RDL01-0610WB-5CCT-WH 6”  B 10W 975-1015LM 100LM/W
RDL01-0410WA-5CCT-WH 4” A 10W 750-825LM 90LM/W
RDL01-5612WA-5CCT-WH 5”& 6” A 12W 1020-1125LM 100LM/W
RDL01-0614WA-5CCT-WH 6” A 14W 1270-1400LM 100LM/W
RDL01-0410WB-5CCT-WH 4” B 10W 820-900LM 90LM/W
RDL01-5612WB-5CCT-WH 5”& 6” B 12W 1060-1155LM 100LM/W
RDL01-0614WB-5CCT-WH 6” B 14W 1160-1315LM 95LM/W

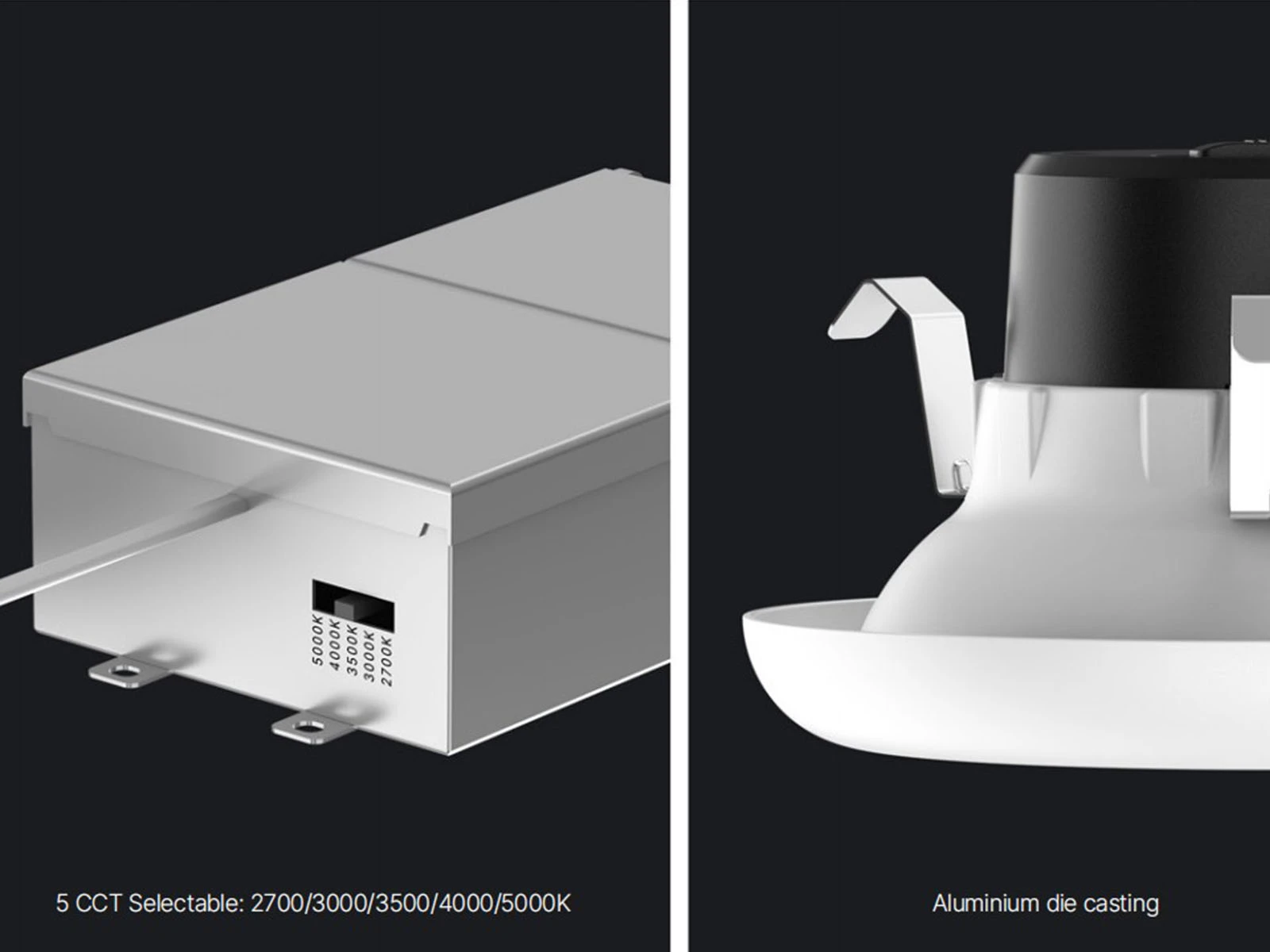

photo metric CCT 5CCT Selectable: 2700K/3000K/3500K/4000K/5000K
Beam Angle 130°
Ra >90
R9 >0
DUV ≤0.006
Electrical Lifetime Rated voltage 100-130V
Frequency 60Hz
THD ≤20%
surge protection 2KV
power Factor 0.9
constant voltage 30-40V
L80 ≥50000
warranty 5 years
operation start Time ≤  1S
operating Temp ﹣4'F~104'F
storage Temp ﹣40'F~140'F
Environment Indoor
IP Rating Dry location
Material Housing/case Aluminium die casting+Galvanized steel
optical-Lens /
