CBL05 LED Under Cabinet Light

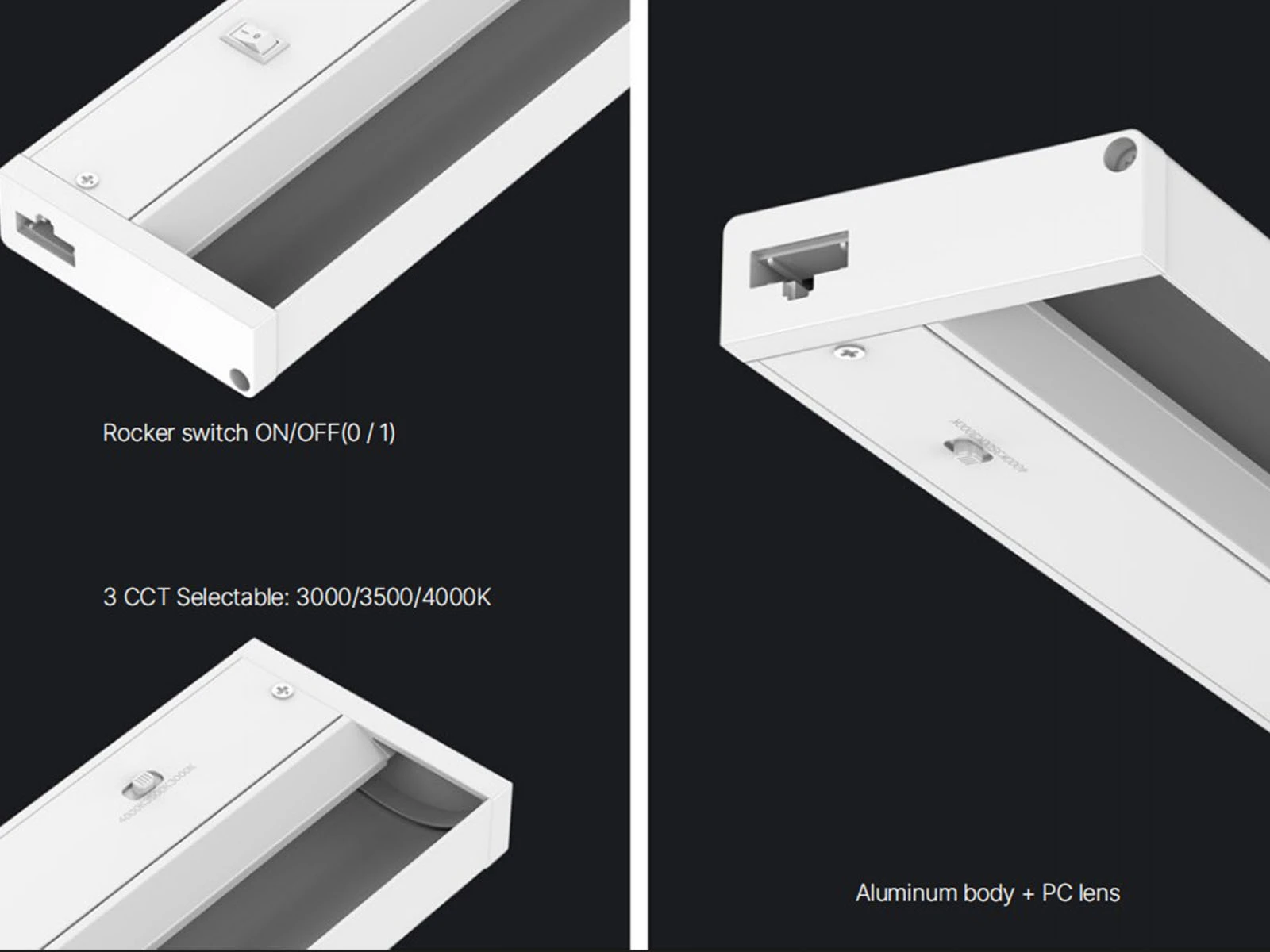

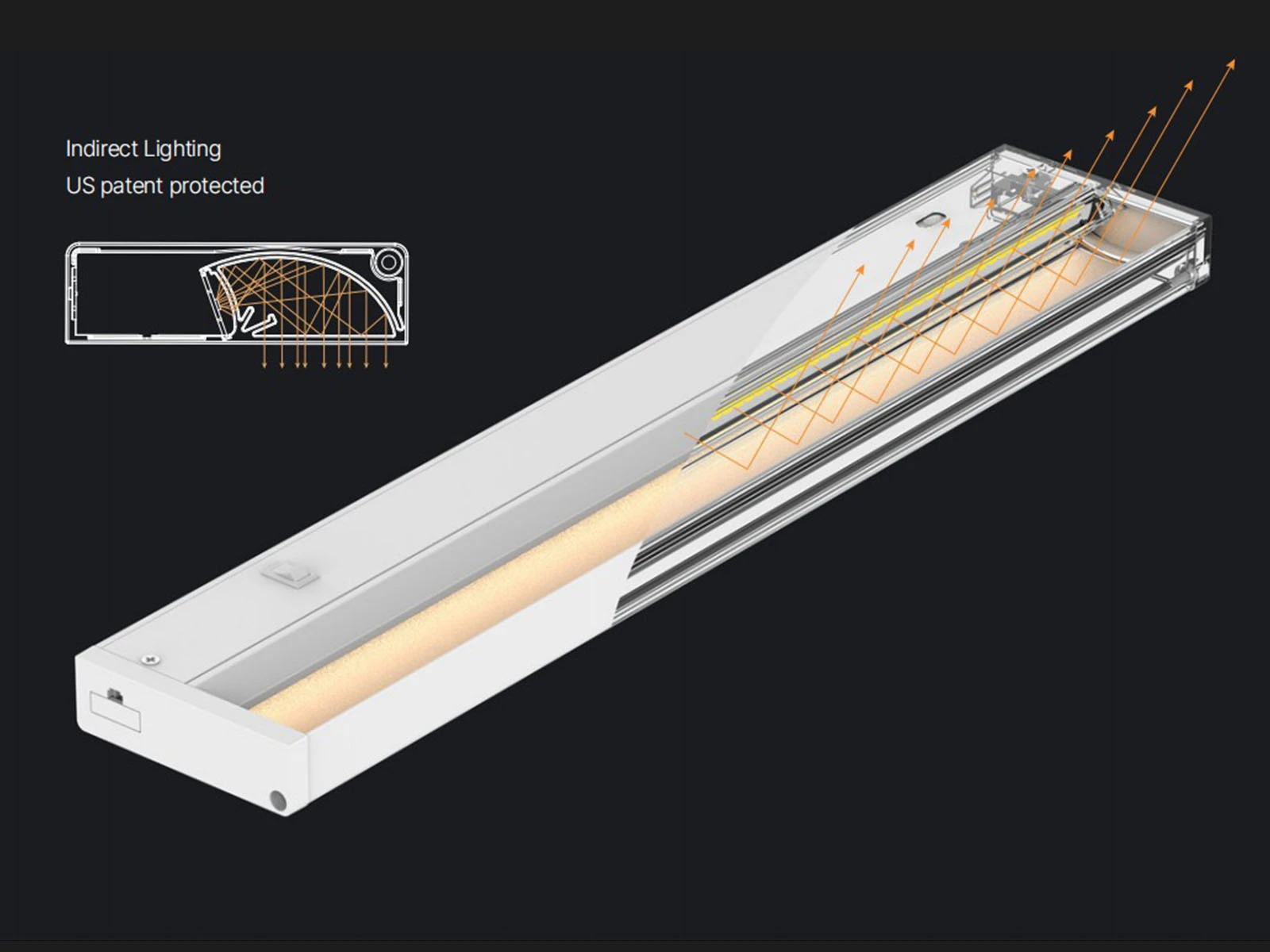

CBL05 is an patented indirect lighitng design under cabinet light, adopts diffuse reflection structure technology to ensure very soft lighting, no dazzling， The internal structure of the product is made of aviation aluminum, which makes the whole product full of advanced sense. Splicing function is available, 3 adjustable color temperatures is suitable for auxiliary lighting requirements in different environments. Each product Equipped with an independent switch to better control the use of a single lamp.

Datasheet

Features

Expected Life: Projected life of at least 50, 000 hours.
Lens: Frosted, impact-resistant acrylic.
Electrical: Universal voltage (100-130VAC) input, 50/60 Hz.
Driver: High-performance driver features over-voltage, over-current, and short-circuit protection.
Finish: All reflective surfaces are finished with a high-reflectance, lighting fixture white polyester powder.
Certification: ETL.
Warranty: Limited 5-Year Warranty.

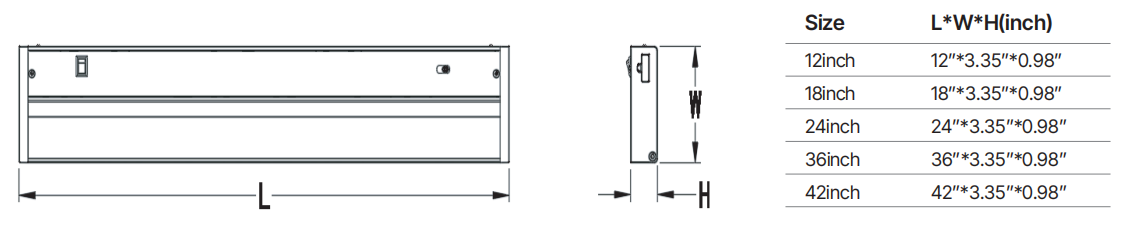

Dimension

Performance Summary

Part No.		Length	Max Power	Luminous Flux	Luminous Efficacy	Dimming	Input voltage	Certufucale
AHCL01-1207WN-CCT-WH		12”	7W	560Lm	80Lm/W	No	100-130VAC	ETL
AHCL01-1811WN-CCT-WH		18”	11W	880Lm
AHCL01-2415WN-CCT-WH		24”	15W	1200Lm
AHCL01-3622WN-CCT-WH		36”	22W	1760Lm
AHCL01-4226WN-CCT-WH		42”	26W	2080Lm
AHCL01-1208WD-CCT-WH		12”	8W	640Lm		Yes
AHCL01-1812WD-CCT-WH		18”	12W	960Lm
AHCL01-2416WD-CCT-WH		24”	16W	1280Lm
AHCL01-3624WD-CCT-WH		36”	24W	1920Lm
AHCL01-4228WD-CCT-WH		42”	28W	2240Lm
Photo metric	CCT	3000K/3500K/4000K
	Beam Angle	110°
	Ra	≥ 90
	R9	> 0
	Duv	≤ 0.006
Electrical Lifetime	Rated voltage	100- 130VAV
	Frequency	50/60Hz
	THD	≤ 20%
	surge protection	2KV
	power Factor	0.9
	constant voltage	60- 74V
	L70	≥ 50000
	L90	≥ 36000
	warranty	5 Years
Operation	Start Time	≤ 1S
	Operating Temp	- 4°F~104°F
	Storage Temp	- 40°F~140°F
	Environment	Indoor
	IP Rating	IP20
Material	Housing/case	Steel
Material	optical-Lens	PC/ Clear
