CDL06 LED Downlight
LED Downlights

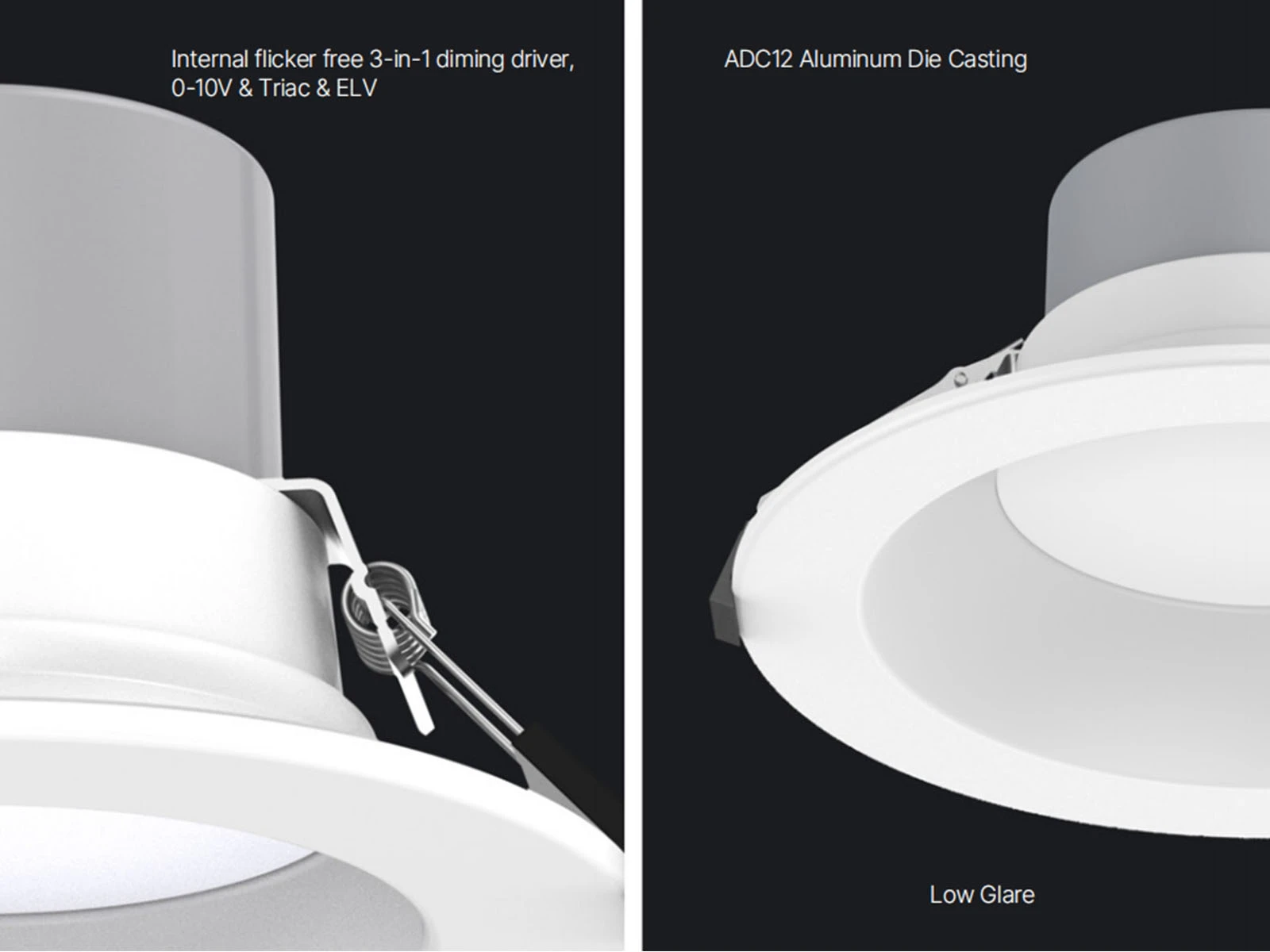

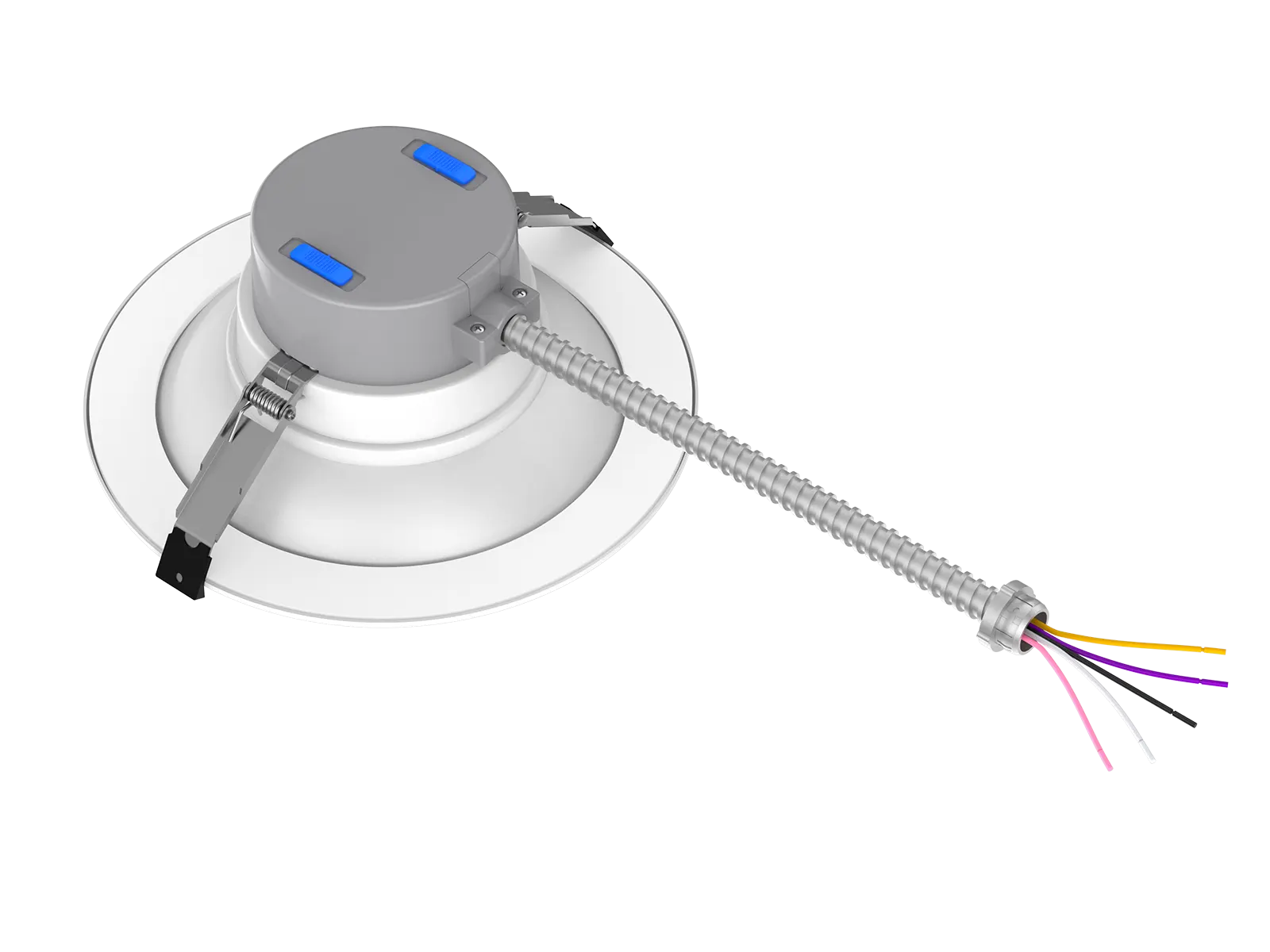

CDL06 commercial 3-in-1 dimming downlight, with 0-10V, Triac, and ELV dimming options, its compatible multi-dimmers for Lutron/ Leviton/ Insteon big brand. Designed with an integral whip to connect directly to a junction box.With integrated driver, retrofits existing commercial housings and is field accessible from below the ceiling.

etlfccenergy-staric-ratedtitle245warranty5cct-select5w-select0-10vtriacwet-location80cri90cri90deg95deg100deg
Datasheet IES Testing Report

Features

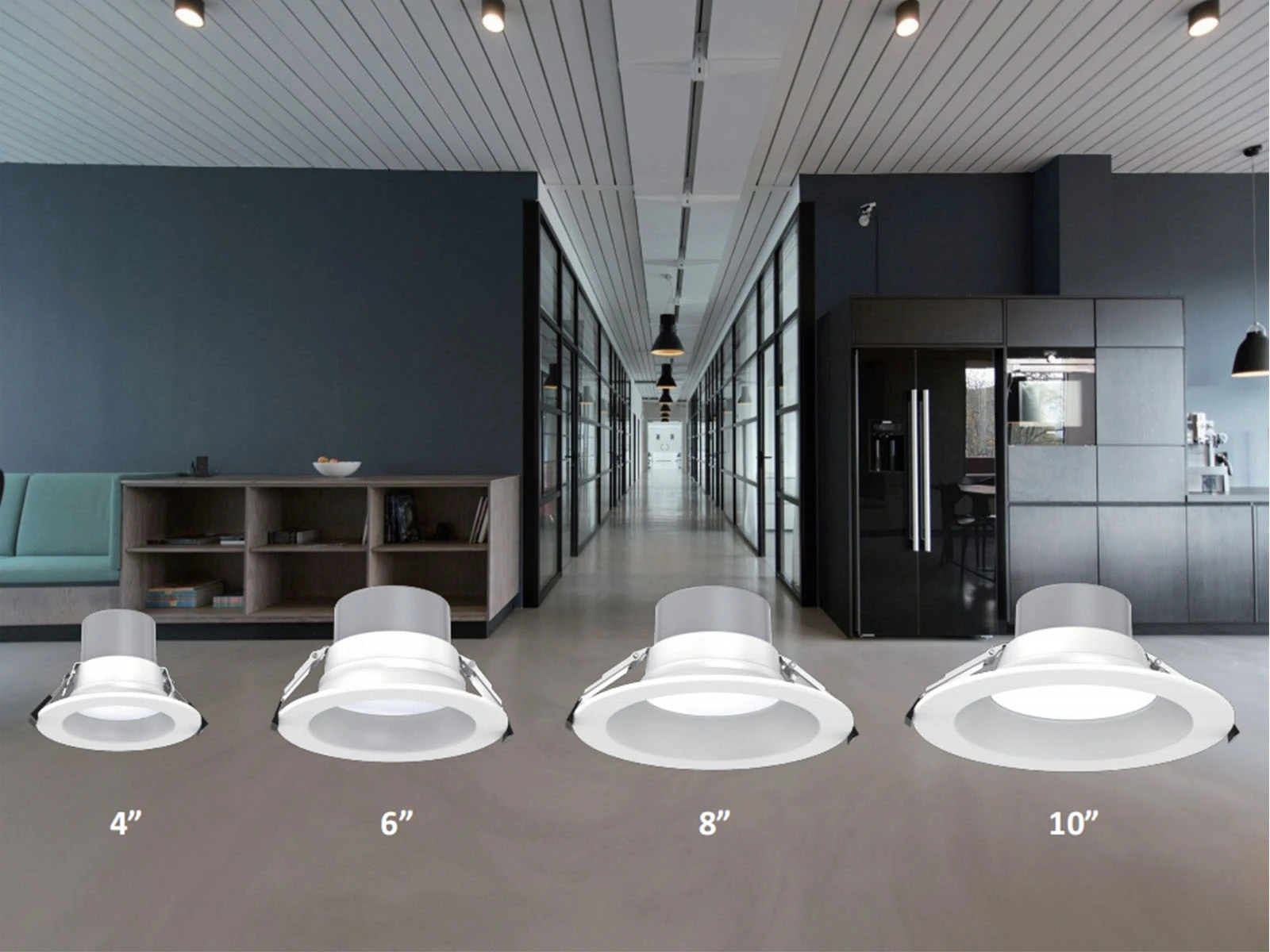

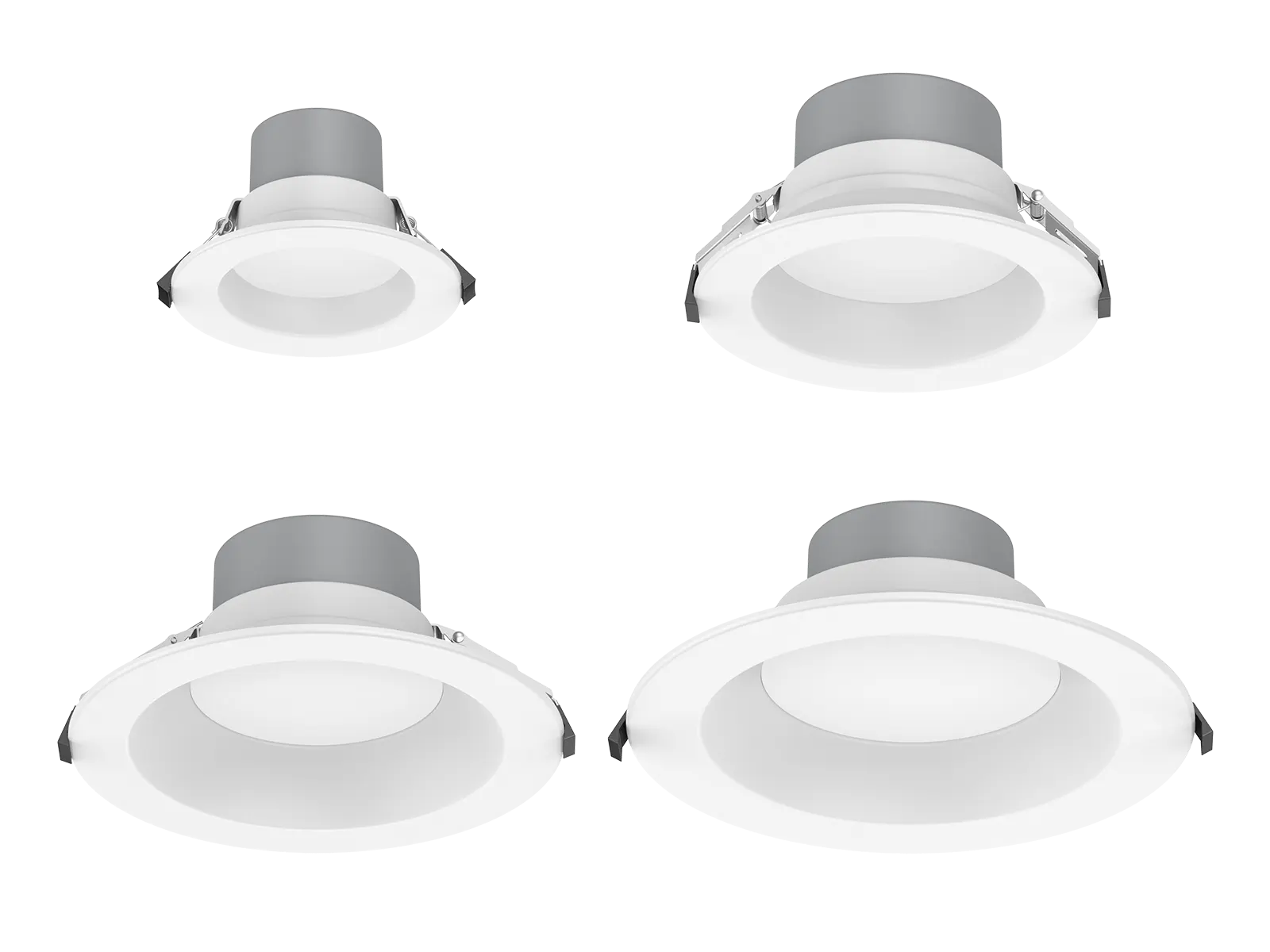

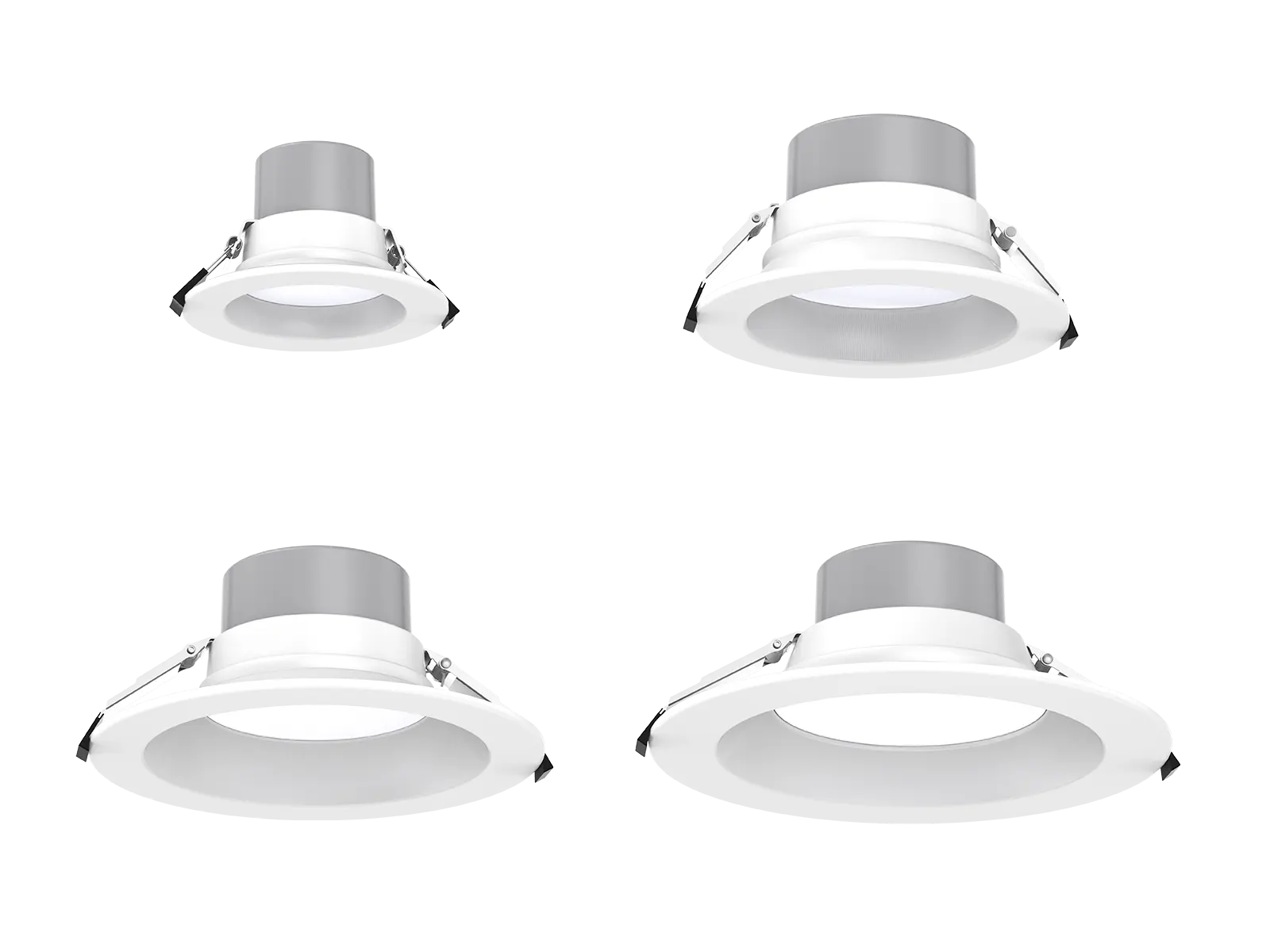

  •  The product is available in 4"/6"/8"/10" sizes to meet different venue needs.

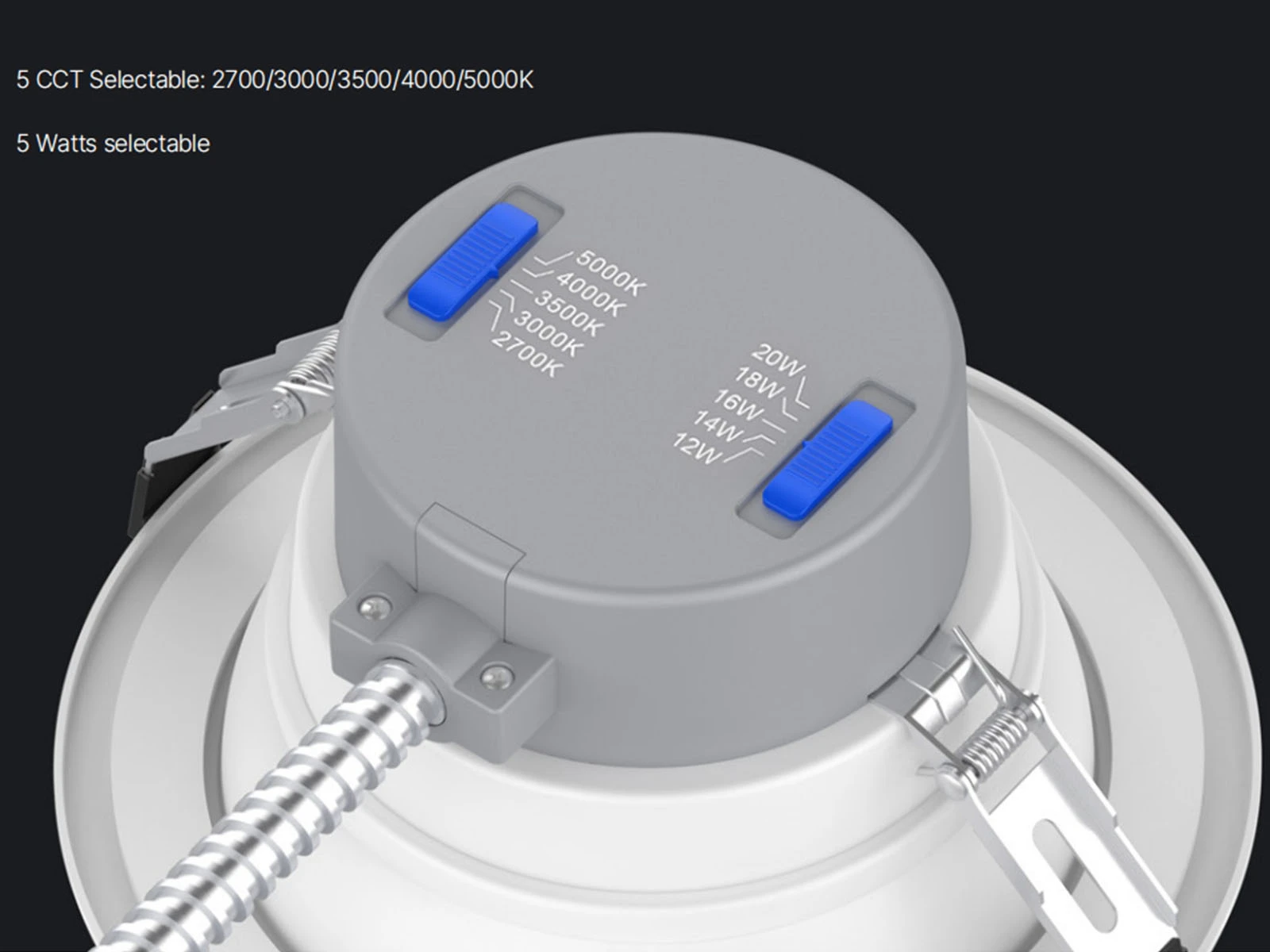

  •  5 Wattage and 5 CCT are selectable by dip switch, one product with multiple uses.
  •  High light efficiency 100-120 LM/W, with flicker-free driver.
  •  Integrated lamp design, giving it a simple and elegant overall appearance.
  •  Suitable for new buildings, renovation projects, and upgrades.
  •  Two trim options: Smooth and Baffle styles.
  •  Type lC rated.
  •  Wet Location.

Dimension

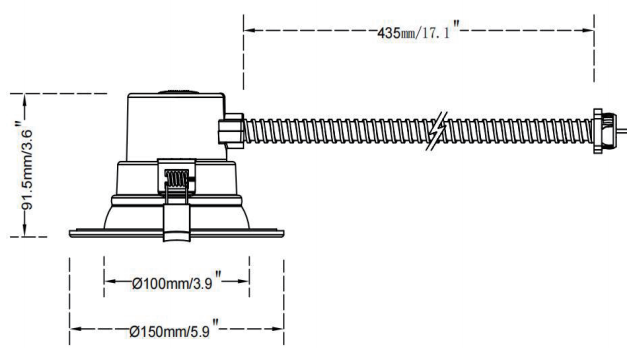

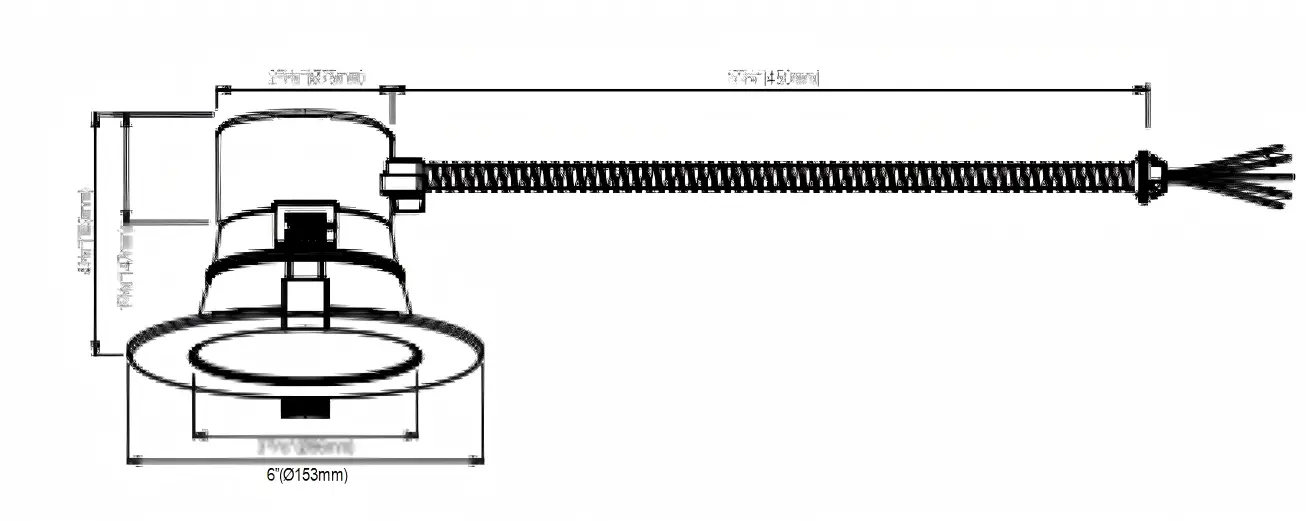

CDL06 downlight 4 inch size(1)

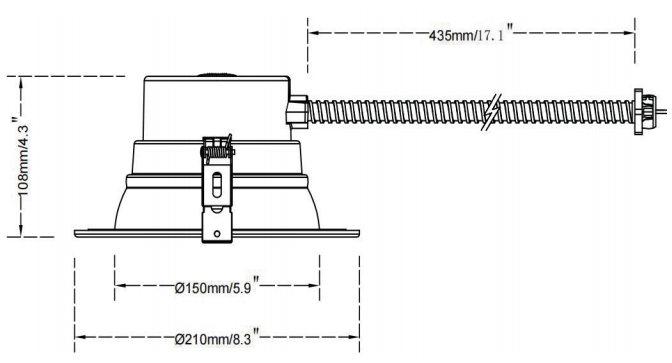

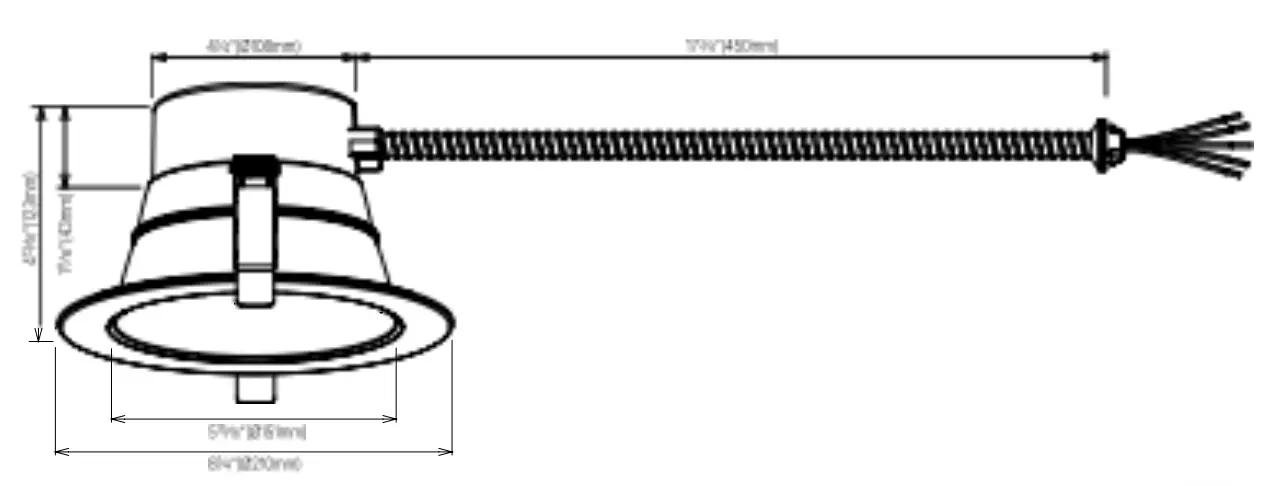

CDL06 downlight 6 inch size

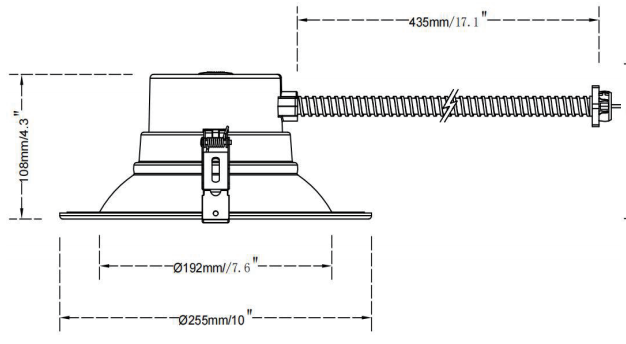

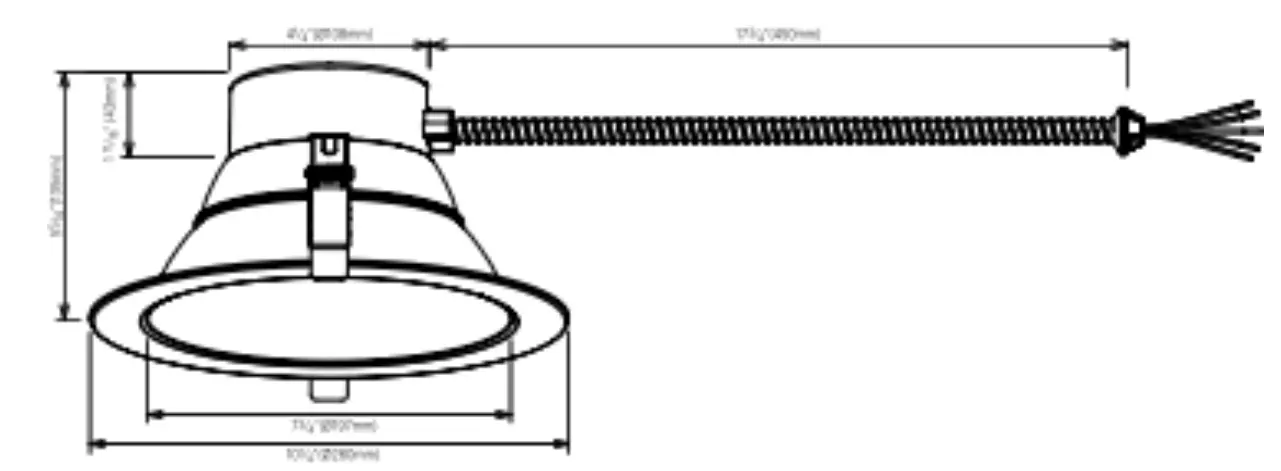

CDL06 downlight 8 inch size

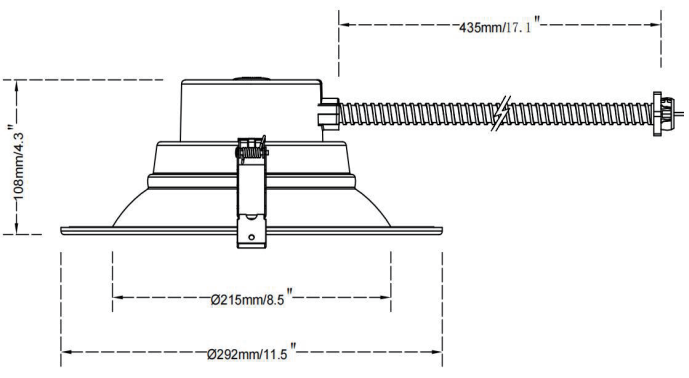

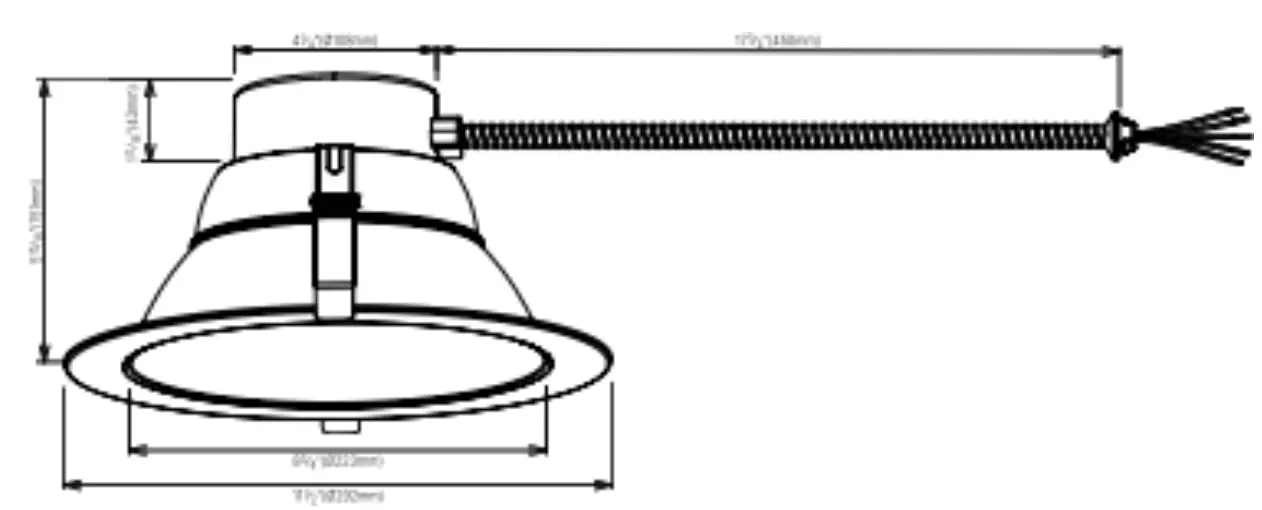

CDL06 downlight 10 inch size

Performance Summary

Model NO.

Watts

CCT

Efficacy

(lm/W)

Lumens (±10%)

Voltage

DIM

CRI

Beam

angle



CDL06-4-16W-A5C5

4 Wattage selectable

16W/14W/10W/8W











5CCT Selectable

2700K+3000K+3500K

+4000K+5000K

100-110

16W: 1550~1700

14W: 1400~1550

10W: 1000~1150

8W: 860~920

AC120-277V











0-10V@120-277V

0-10V@120-347V

Triac/ELV@120V













80





80。



CDL06-6-30W-A5C5

5 Wattage selectable

30W/26W/22W/18W/15W



100-110

30W: 2650~3100

26W: 2500~2800

22W: 2200~2500

18W: 2000~2150

15W: 1650~1800









AC120-277V

AC120-347V



CDL06-8-35W-A5C5

5 Wattage selectable

35W/30W/25W/20W/15W



110-120

35W: 3800~4200

30W: 3400~3700

25W: 2950~3200

20W: 2400~2600

15W: 1900~2050







90°



CDL06-10-40W-A5C5

5 Wattage selectable

40W/35W/30W/25W/20W



110-120

40W: 4050~4500

35W: 3800~4200

30W: 3400~3700

25W: 2950~3200

20W: 2400~2600
