CLD001/PD02 LED Downlight
LED Downlights

CLD001 (Code PD02) LED Cylinder combines versatile installation with an interchangeable metal trim and acrylic diffuser system. It offers 3 selectable wattages and 5CCT selectable options, with CRI90 performance. Triac dimming ensures seamless ambiance control—perfect for adaptive, precision lighting across environments, with precise beam angle settings of 15°/24°/40°/60° to suit specific needs.

5warranty5cct-select90critriac3w-select15-55deg60degetl
Datasheet IES Testing Report

Features

  •  The fixture delivers elegant, direct illumination with high CRI LED performance.

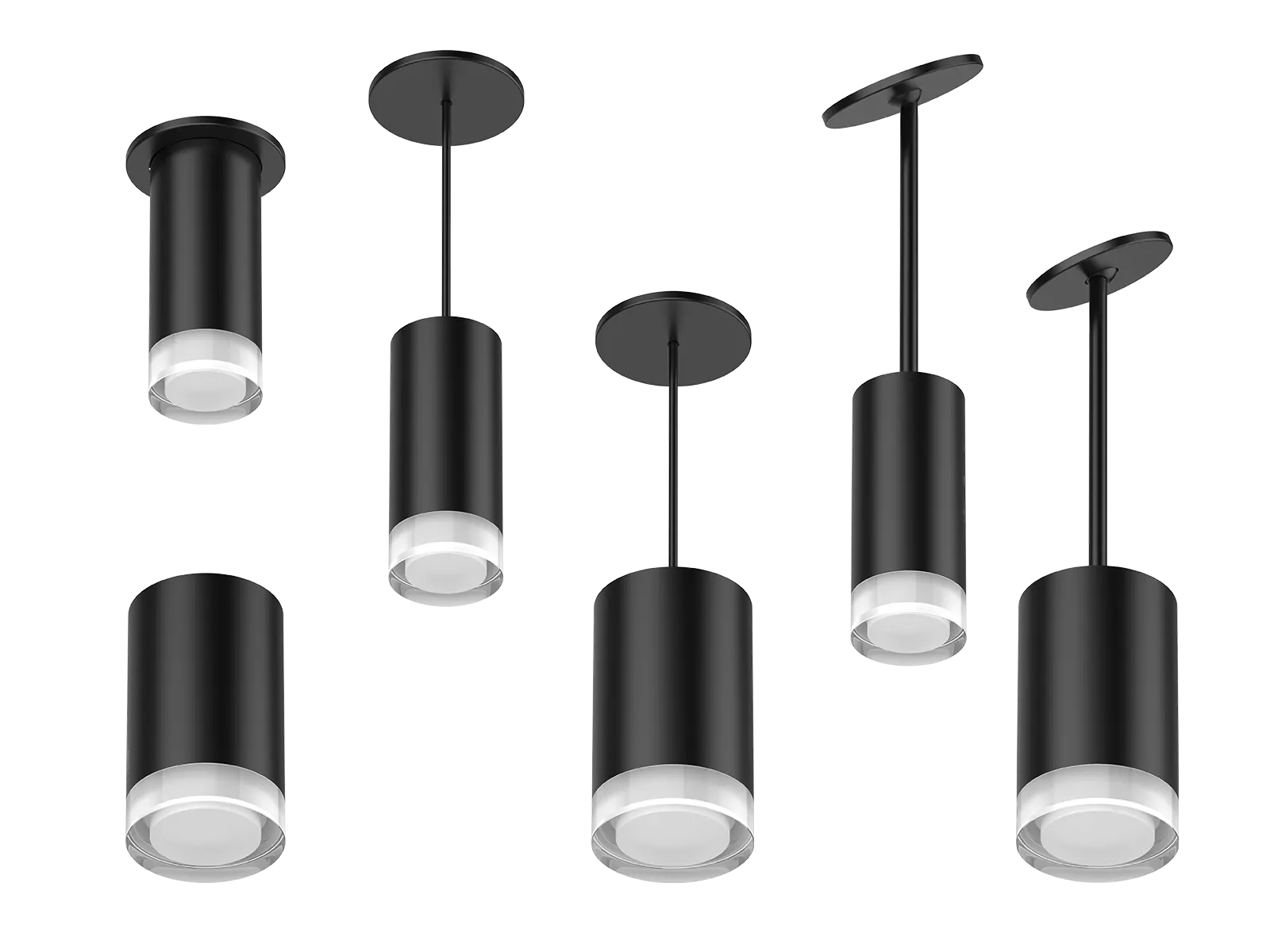

  •  Interchangeable metal trim and acrylic diffuser-perfect for tailoring the look to match diverse environments or design preferences.
  •  Easily switch between 2700K / 3000K / 3500K / 4000K / 5000K to meet the mood or task of any setting.
  •  3 field-adjustable wattage .

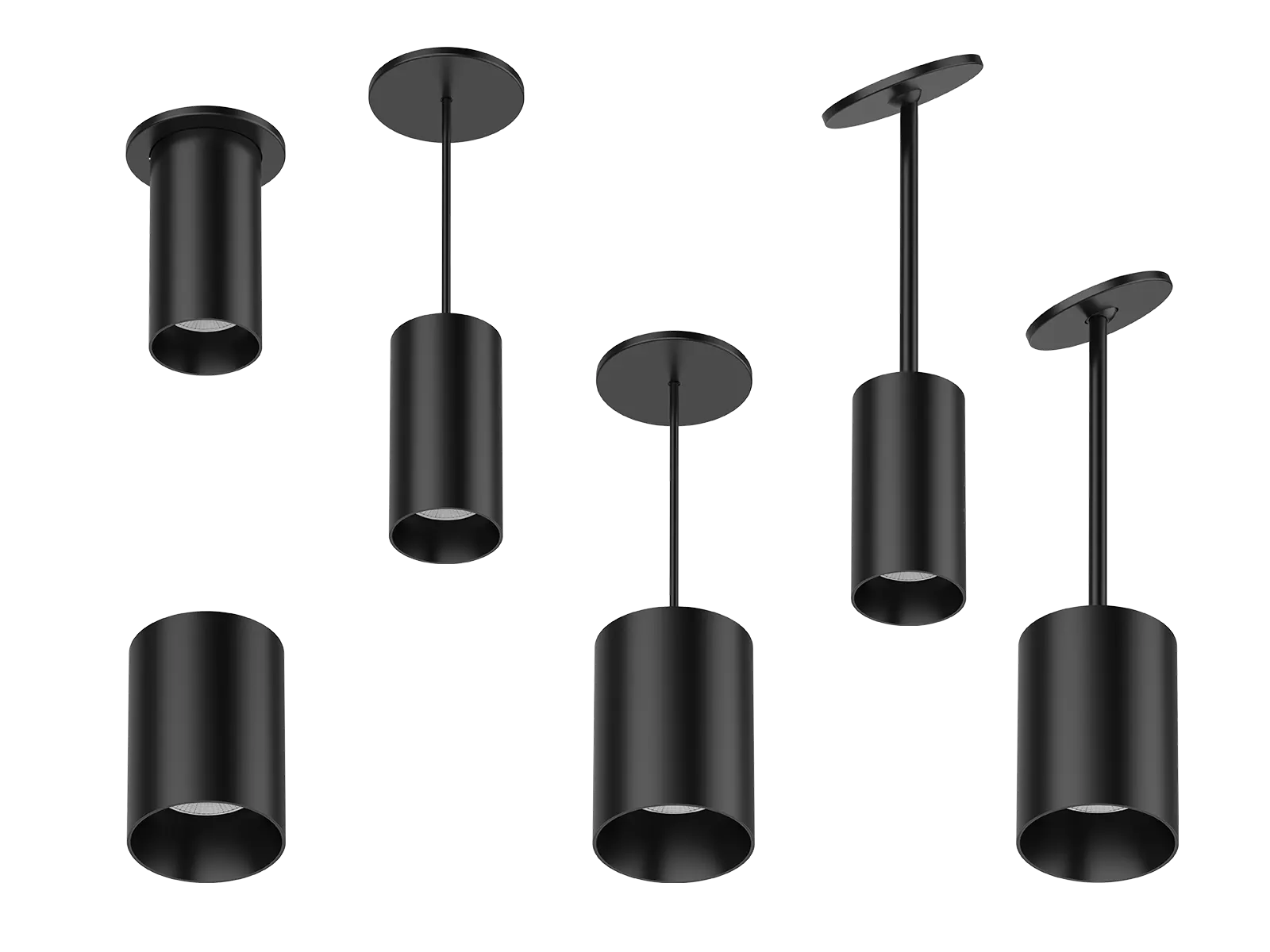

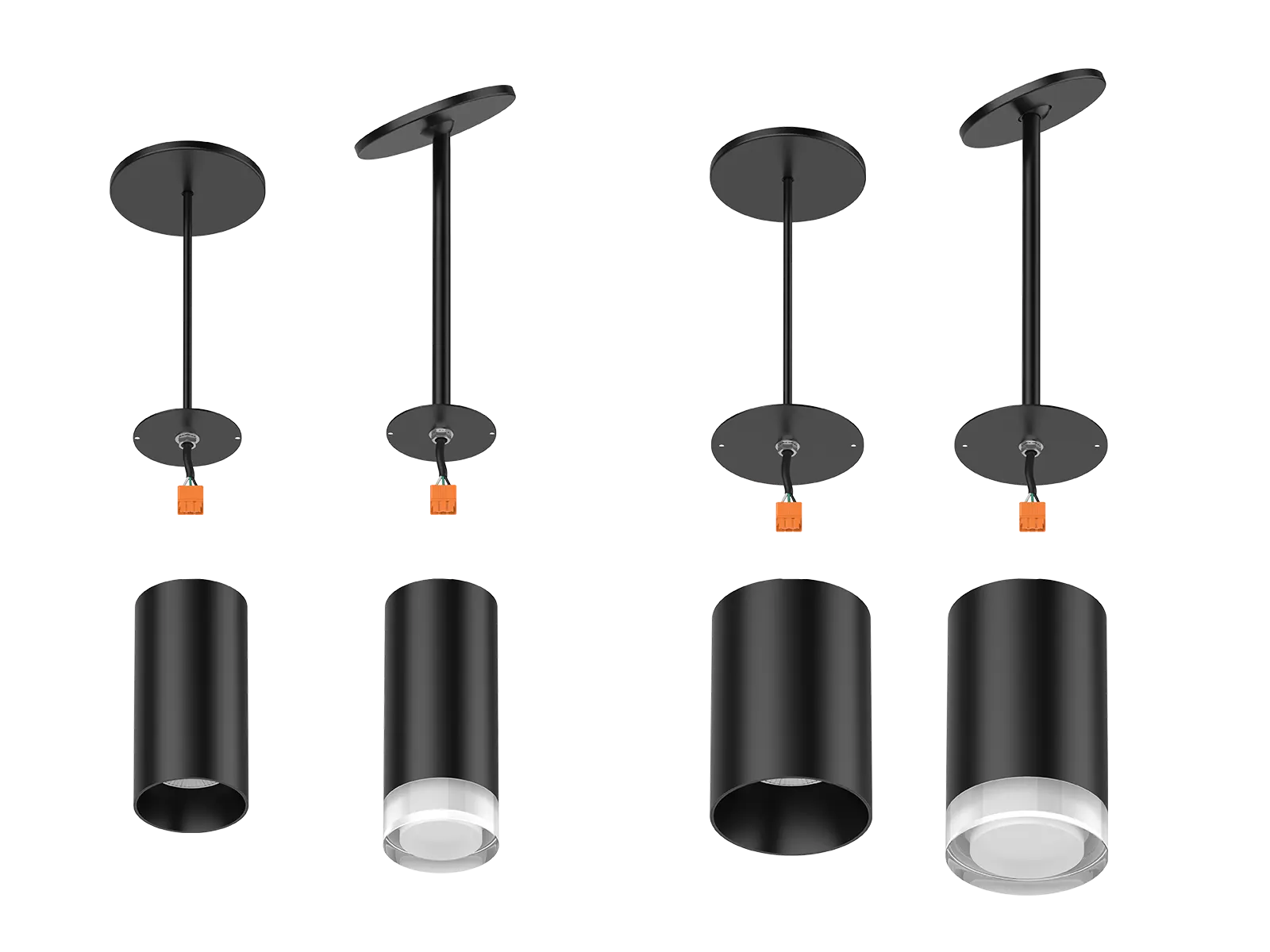

  •  Surface-mounted downlight can be converted to pendant & stem pendant installation with optional accessories.
  •  120V Triac Dimmable.

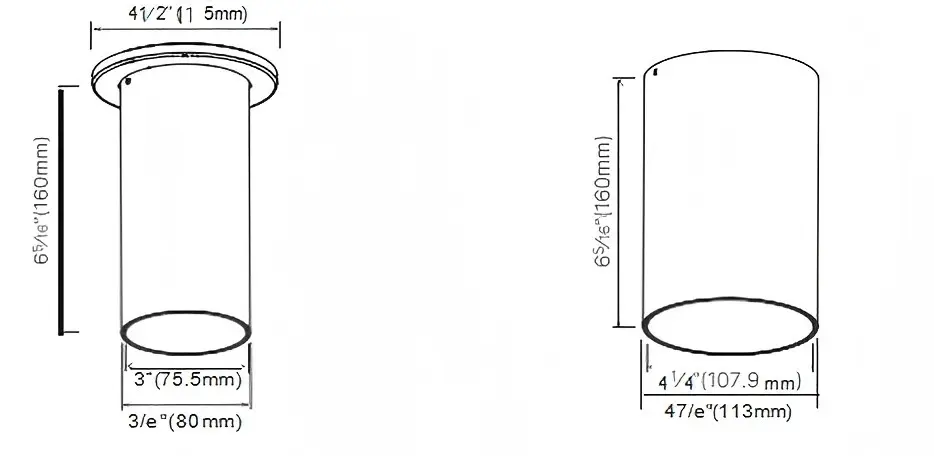

Dimension

CLD001 downlight 3 inch + 4.5 inch size (1)

Performance Summary

Model NO.

Size (inch)

Watts

CCT

Efficacy

(lm/W)

Lumens (±10%)

Voltage

DIM

CRI

Beam

angle

CLD001-3-10W-D3C5

41⁄2"×65⁄16"

3 Wattage selectable

10W/8W/6W





5CCT Selectable

2700K+3000K+3500K

+4000K+5000K

85lm/W

10W: 610-910

8W: 535-725

6W: 400-535





AC120V





Triac





90





15°/ 24°/

40°/ 60°

CLD001-3-20W-D3C5

41⁄2"×65⁄16"

3 Wattage selectable

20W/15W/10W

83lm/W

20W: 1400-1650

15W: 970-1130

10W: 820-950

CLD001-4.5-30W-D3C5

47⁄16"×65⁄16"

3 Wattage selectable

30W/25W/20W

89lm/W

30W: 2230-2790

25W: 1920-2500

20W: 1665-2105
