CBL01 LED Under Cabinet Light
Under Cabinet Lights
CBL01 LED cabinet light series is a lamp specially used for auxiliary lighting of cabinets and shelves. The product has a built-in triac dimming driver to meet the illumination requirements of different scenes. 3 adjustable color temperatures is suitable for auxiliary lighting requirements in different environments. Each product Equipped with an independent switch to better control the use of a single lamp.
etlfcc5warranty3cct-selecttriacdamp-location80cri100deg
Datasheet IES Testing Report

Features

  • 3CCT Selectable (3000K/4000K/5000K), reduce SKU.

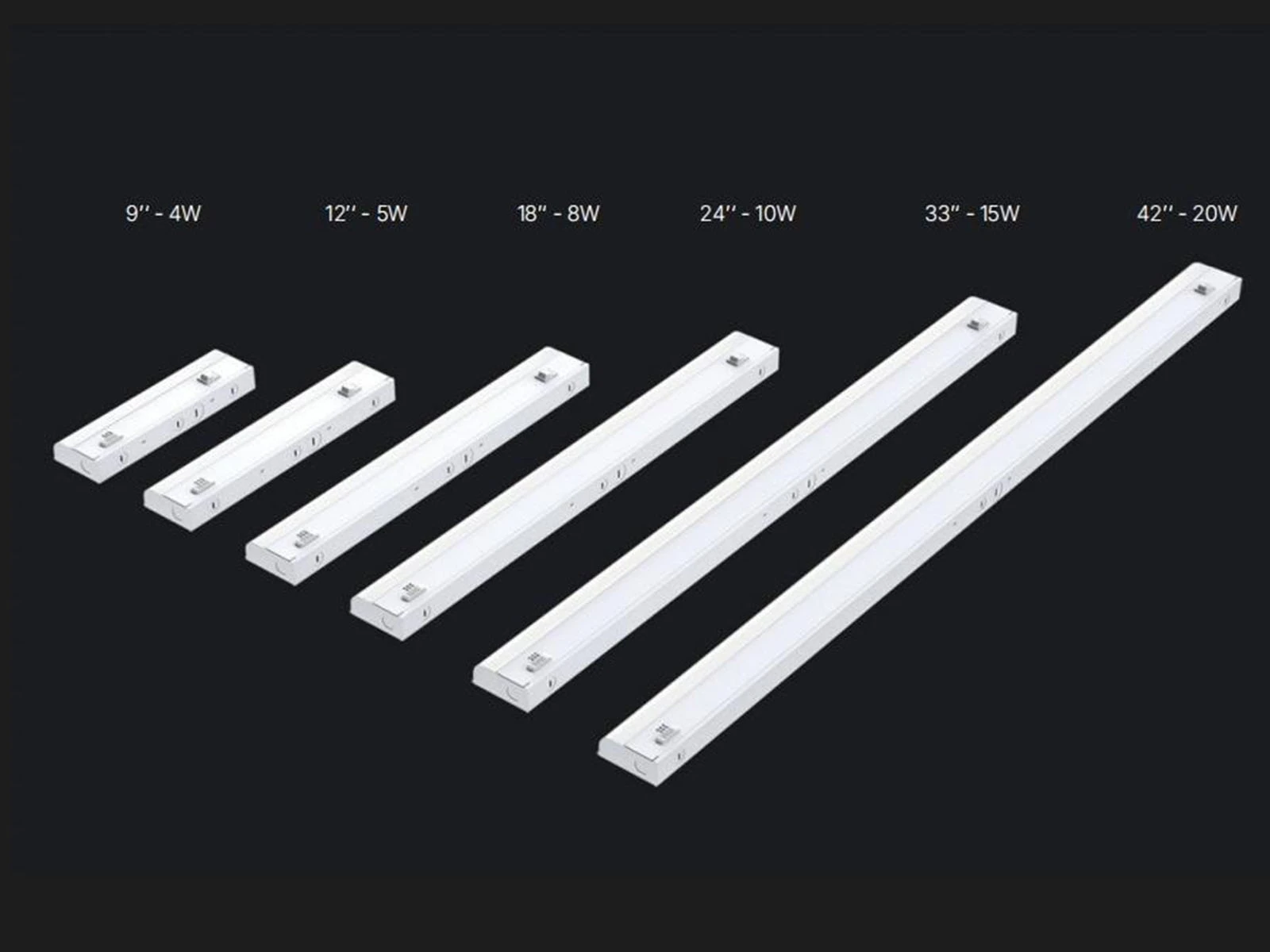

  • Full product sizes, 9˝, 12˝, 18˝, 24˝, 33˝, 42˝ .
  • Compact design, thin profile, thickness less than 1.1˝ .
  • Integrated ON/OFF switch for easy to control.
  • Built-in LED triac dimming driver and large knock-out plate on the back make installation easy.
  • Anti-UV PC material diffuser to avoid yellowing during use and further ensure the ideal lighting effect of the lamp.
  • Separate modules structure makes facilitate installation and maintenance more convenient.

Dimension

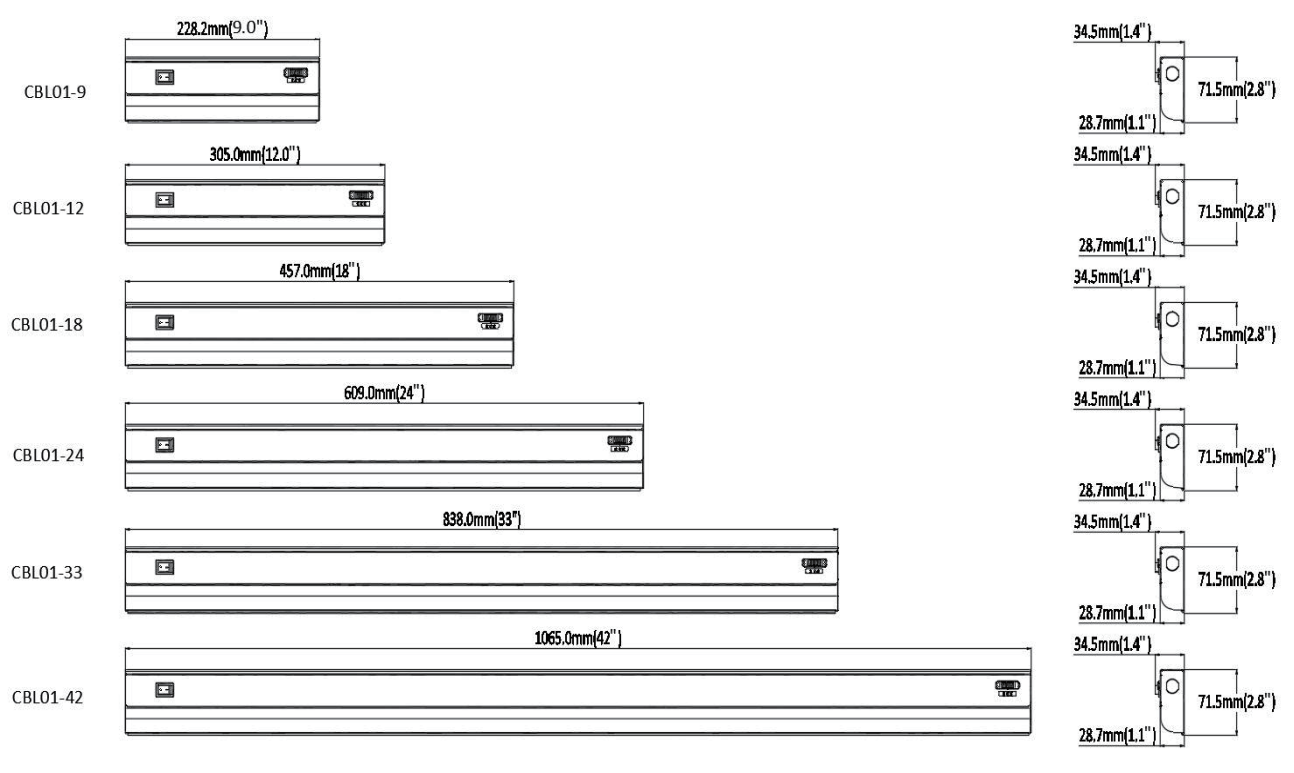

CBL01 under cabinet light size

Performance Summary

Model NO. # Size (mm) Watts CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
CBL01-9-4W-C3-XX 228.2*71.5*28.5 4W 3000K/4000K/5000K  Selectable 105LM/W 420LM AC120V Triac >80 110°±10°
CBL01-12-5W-C3-XX 305*71.5*28.5 5W 3000K/4000K/5000K Selectable 105LM/W 525LM AC120V Triac >80 110°±10°
CBL01-18-8W-C3-XX 457*71.5*28.5 8W 3000K/4000K/5000K Selectable 105LM/W 840LM AC120V Triac >80 110°±10°
CBL01-24-10W-C3-XX 609*71.5*28.5 10W 3000K/4000K/5000K Selectable 105LM/W 1050LM AC120V Triac >80 110°±10°
CBL01-33-15W-C3-XX 838*71.5*28.5 15W 3000K/4000K/5000K Selectable 105LM/W 1575LM AC120V Triac >80 110°±10°
CBL01-42-20W-C3-XX 1065*71.5*28.5 20W 3000K/4000K/5000K Selectable 105LM/W 2100LM AC120V Triac >80 110°±10°

Remarks: All above eficacy and lumens are subject to white finish @4000K, please check IES files for accurate data.

                 CCT & Power Selectable models ship preset at the highest CCT.
