CDL05 LED Downlight
CDL05 LED Downlight 2
CDL05 LED Downlight 3
CDL05 LED Downlight 4
CDL05 LED Downlight
CDL05 LED Downlight 2
CDL05 LED Downlight 3
CDL05 LED Downlight 4
CDL05 LED Downlight
LED Downlights
CDL05 series canless Square Recessed Commercial Downlight is economical LED options with field-adjustable lumen output and color temperature. Available in 6 and 8" options. Offered with either 80 or 90 CRI, universal voltage AC120-277V.
etlic-rated5warranty5cct-select5w-select0-10vwet-location80cri90cri90deg100deg
Datasheet IES Testing Report

Features

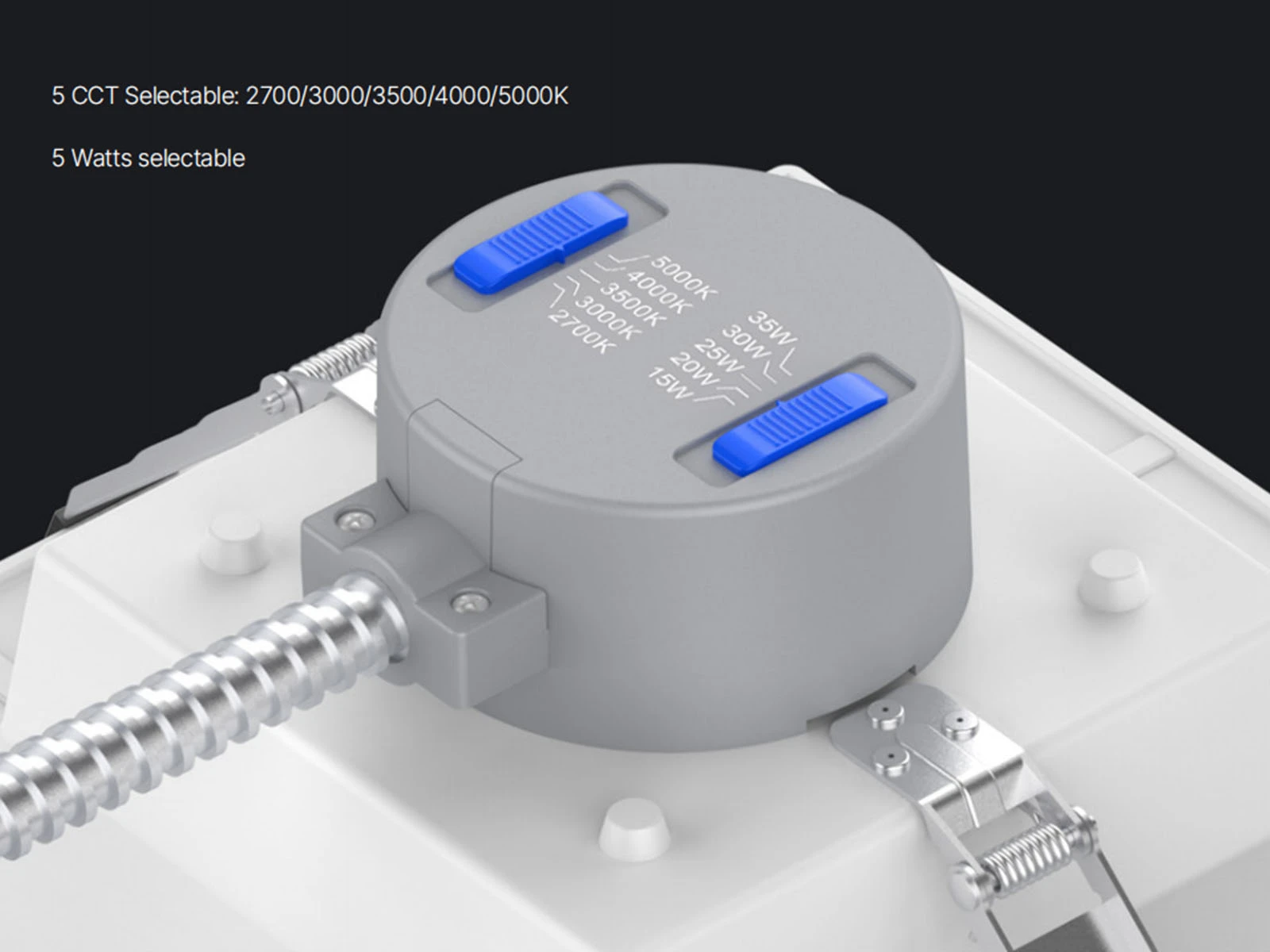

  • 5 Wattage Select and 5 CCT Select technologies offer SKU reduction.
  • High light efficiency 105LPW. • Ideal for new construction, remodel, and retrofit applications.
  • Smooth reflector trim offers clean, modern appearance.

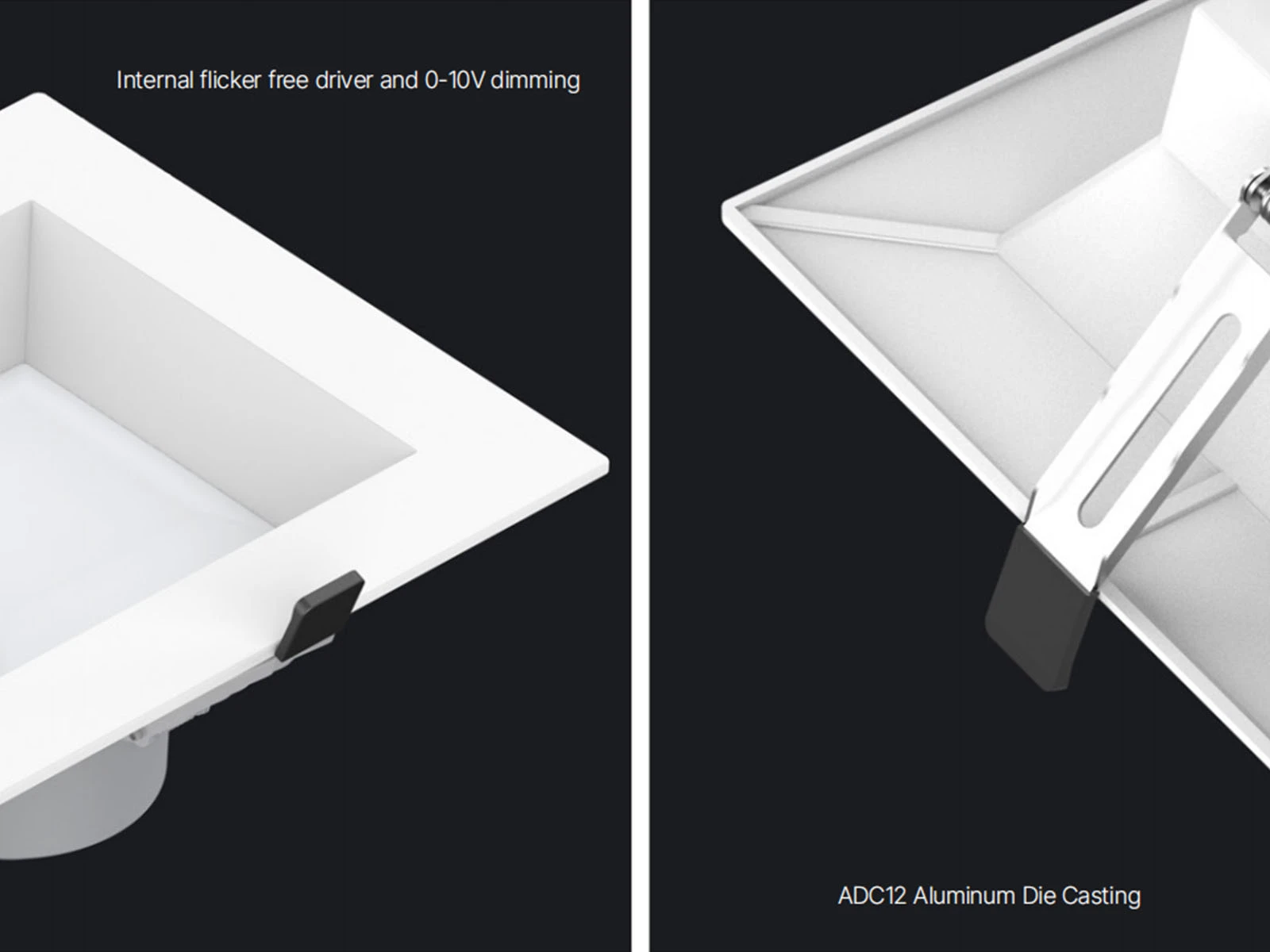

  • Universal voltage AC120-277V, 0−10V dimming LED driver.
  • Type IC rated.
  • Wet Location.

Dimension

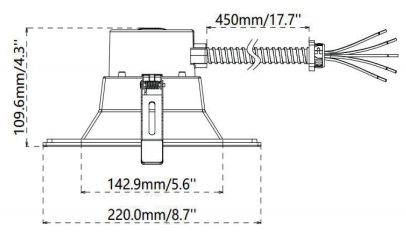

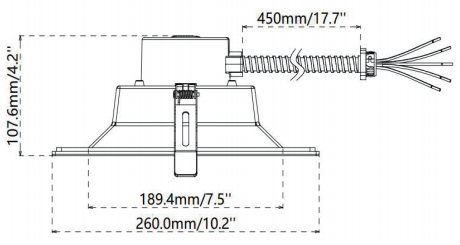

CDL05 downlight 6 inch sizeCDL05 downlight 8 inch size

Performance Summary

Model NO. # Size (inch) Watts CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
CDL05-6-30W-A5C5 6" 12/16/22/26/30W Selectable 5CCT Selectable
2700K
3000K
3500K
4000K
5000K		 105lm/W 3150 LM @30W AC120-277V 0-10V

>80

>90

 90°
CDL05-8-35W-A5C5 8" 16/22/26/30/35W Selectable 105lm/W 3675 LM @35W 100°
Remarks: All above efficacy and lumens are subject to white finish @4000K CRI90, please check IES files for accurate data.

CCT & Power Selectable models ship preset at the highest CCT.
