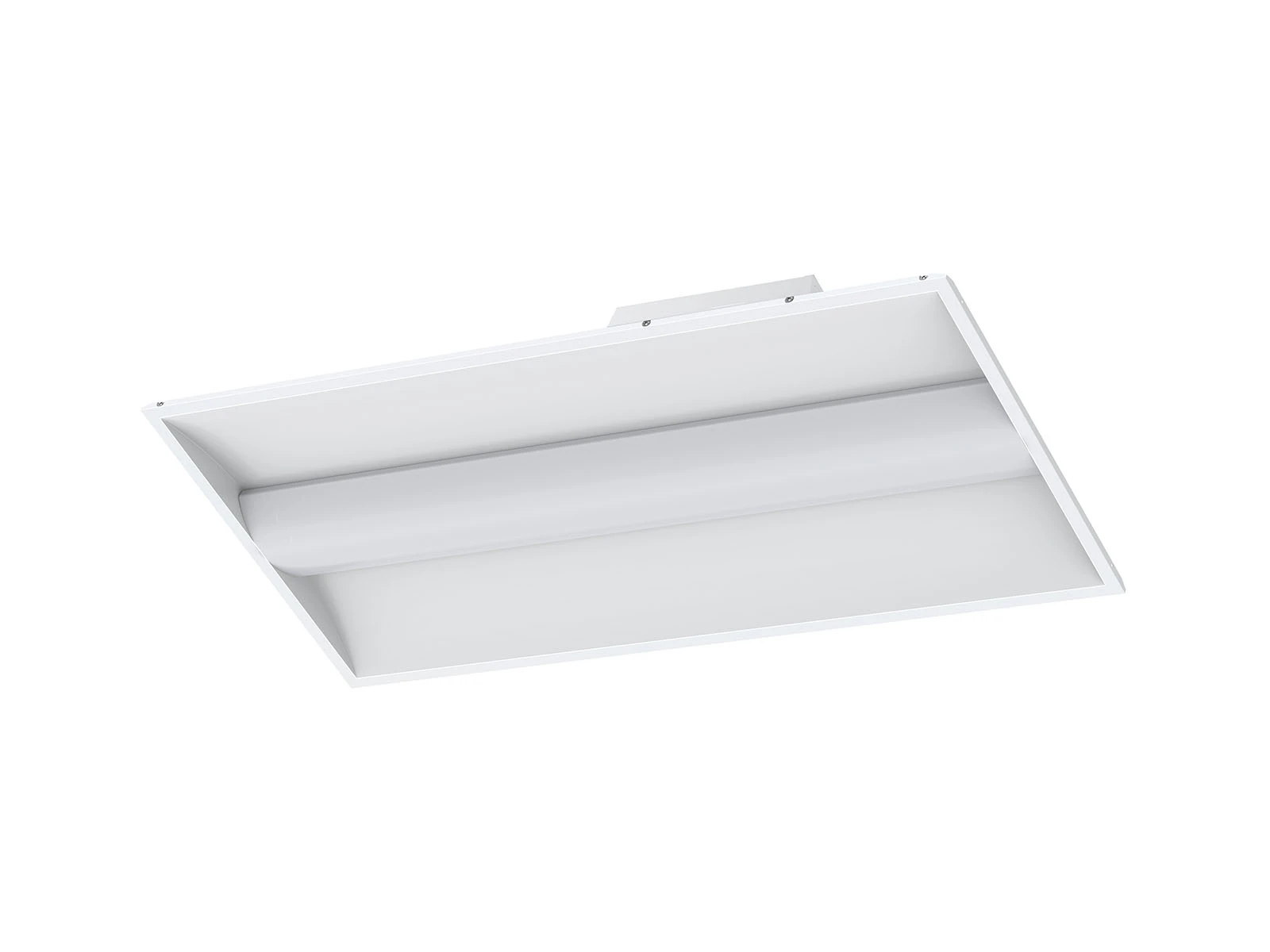

TR01 LED Troffer 2

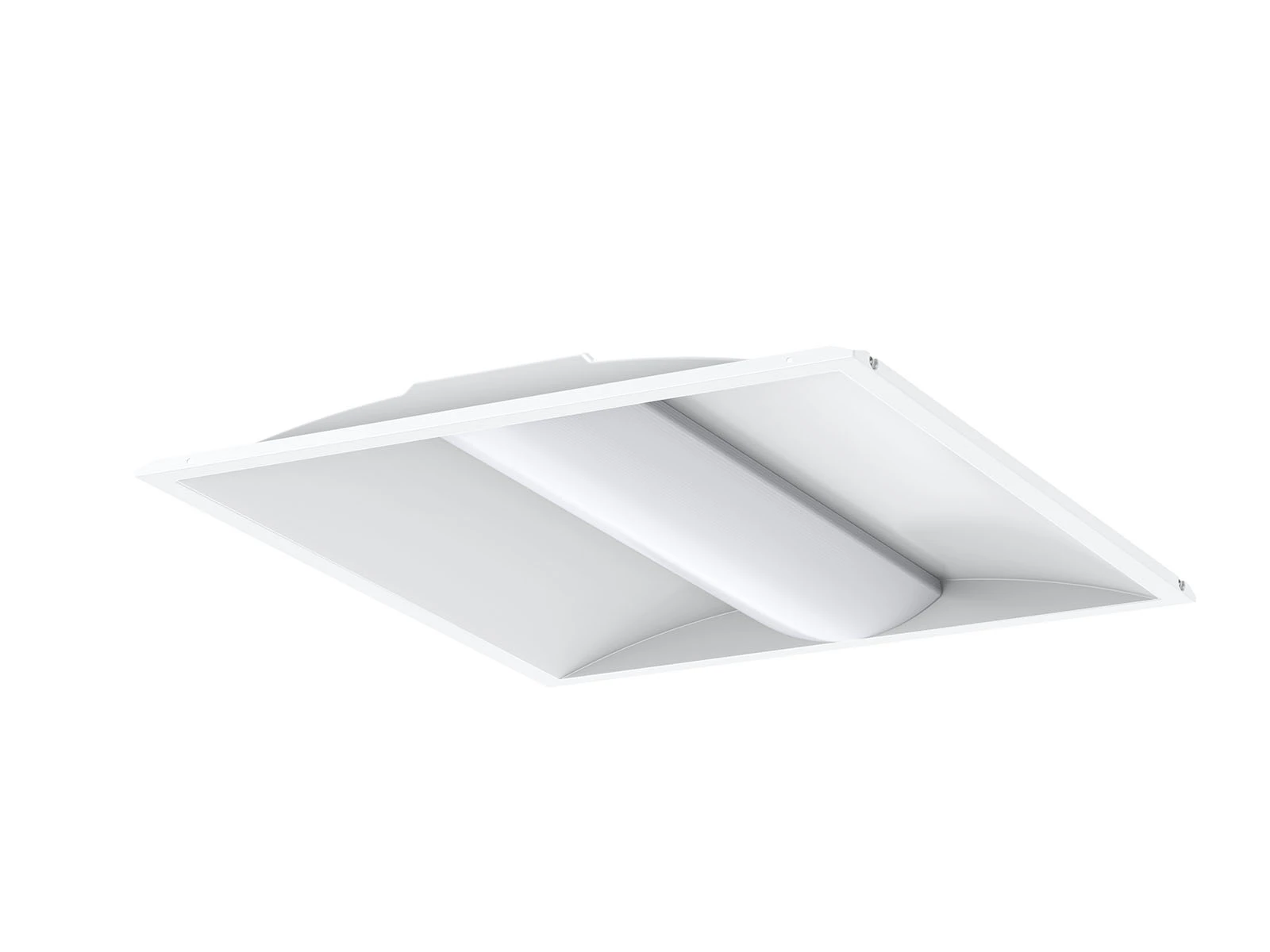

TR01 LED Troffer 3

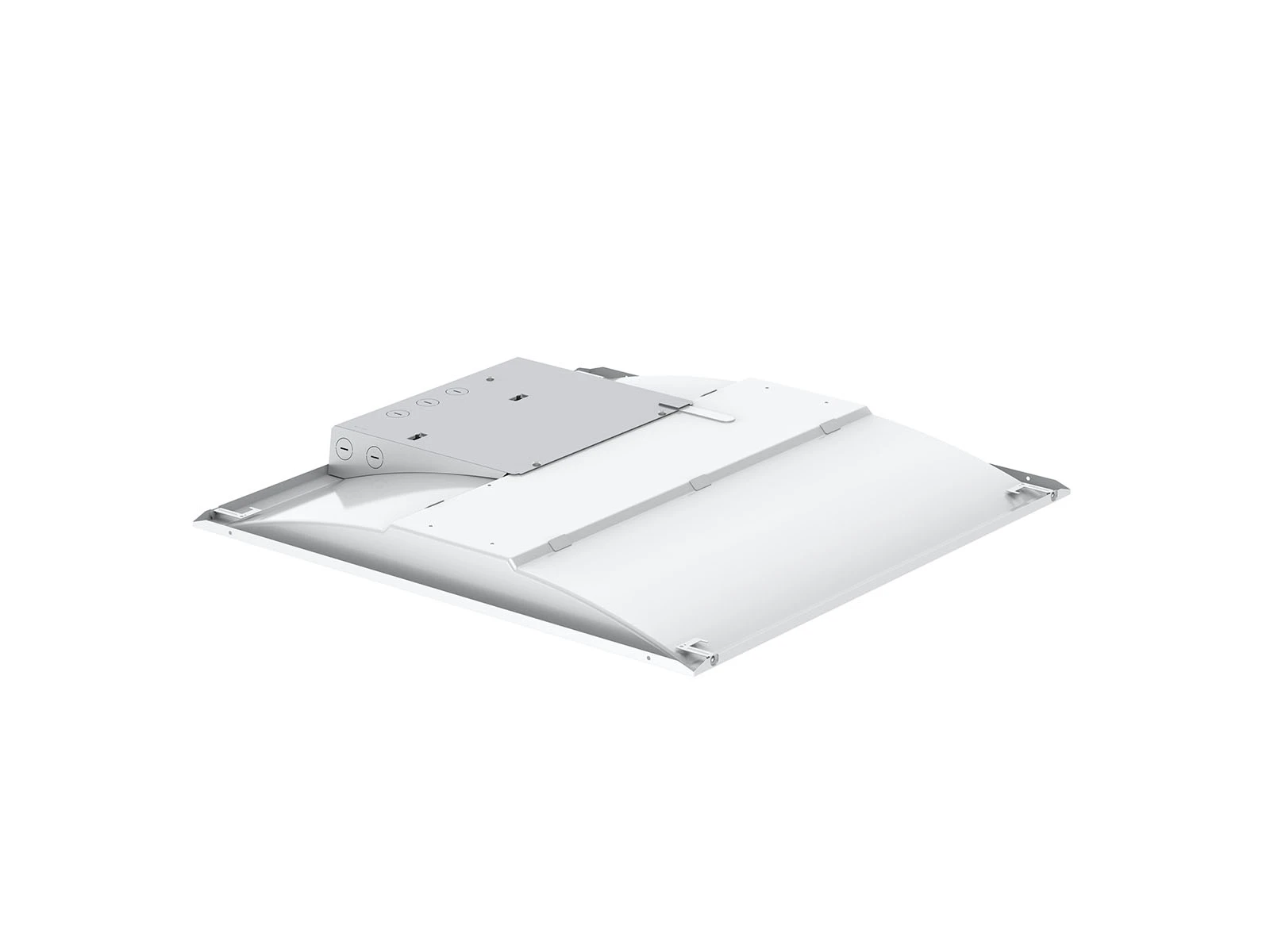

TR01 LED Troffer 4
TR01 LED Troffer
LED Troffers & Panel Lights
TR01 Series LED Troffer comes with multiple CCT and multiple lumens output, which allows us to chose the most suitable solutions to your projects in one fixture they could be added additional functions such as motion sensor and emergency battery drivers.
uldlc515warranty5cct-select5w-select3cct-select3w-select0-10vflicker-freedry-location80cri120deg
Datasheet IES Testing Report

Features

  • AC120-277v and A C120-347vfor options
  • Flicker free driver available
  • Motion sensor for option
  • Emergency battery drivers for option
  • Mounting: recessed, suspension or surface mounting
  • Wet Location
  • Three Troffer versions

Dimension

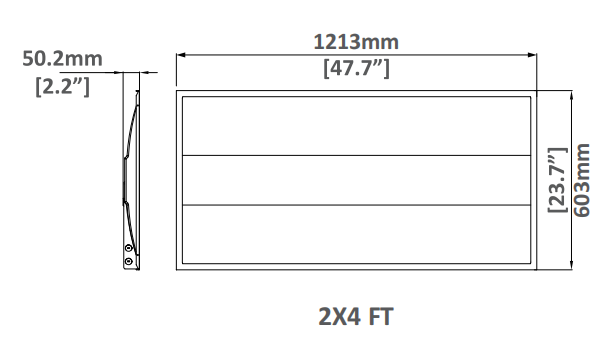

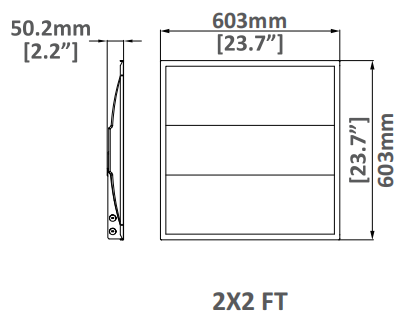

TR01 troffer 2×4 FT sizeTR01 troffer 2×2 FT size

Performance Summary

Model Size (inch) Watts CCT Efficacy Volt DIM Beam Angle Sensor
TR01-22-40W-X-YY 2X2 40W

1 CCT

2700K-6500K options

 135LM/W

120-277V

120-347V

 0-10V 120° Yes
TR01-24-50W-X-YY 2X4 50W

1 CCT

2700K-6500K options
TR01-22-40W-X-A3C3 2X2

3 Watts Selectable

20W/30W/40W

 3 CCT Selectable
35K/40K/50K
TR01-24-50W-X-A3C3 2X4

3 Watts Selectable

30W/40W/50W

 3 CCT Selectable
35K/40K/50K
TR01-22-40W-X-A5C5 2X2

5 Watts Selectable

20W/25W/30W/35W/40W

 5 CCT Selectable
30K/35K/40K/50K/65K
TR01-24-60W-X-A5C5 2X4

5 Watts Selectable

30W/35W/40W/50W/60W

 5 CCT Selectable
30K/35K/40K/50K/65K
TR01-24-72W-X-A5C5 2X4

5 Watts Selectable

30W/40W/50W/60W/72W

 5 CCT Selectable
30K/35K/40K/50K/65K

Remarks: All above efficacy are subject to 4000K,  please check IES files for accurate data.
