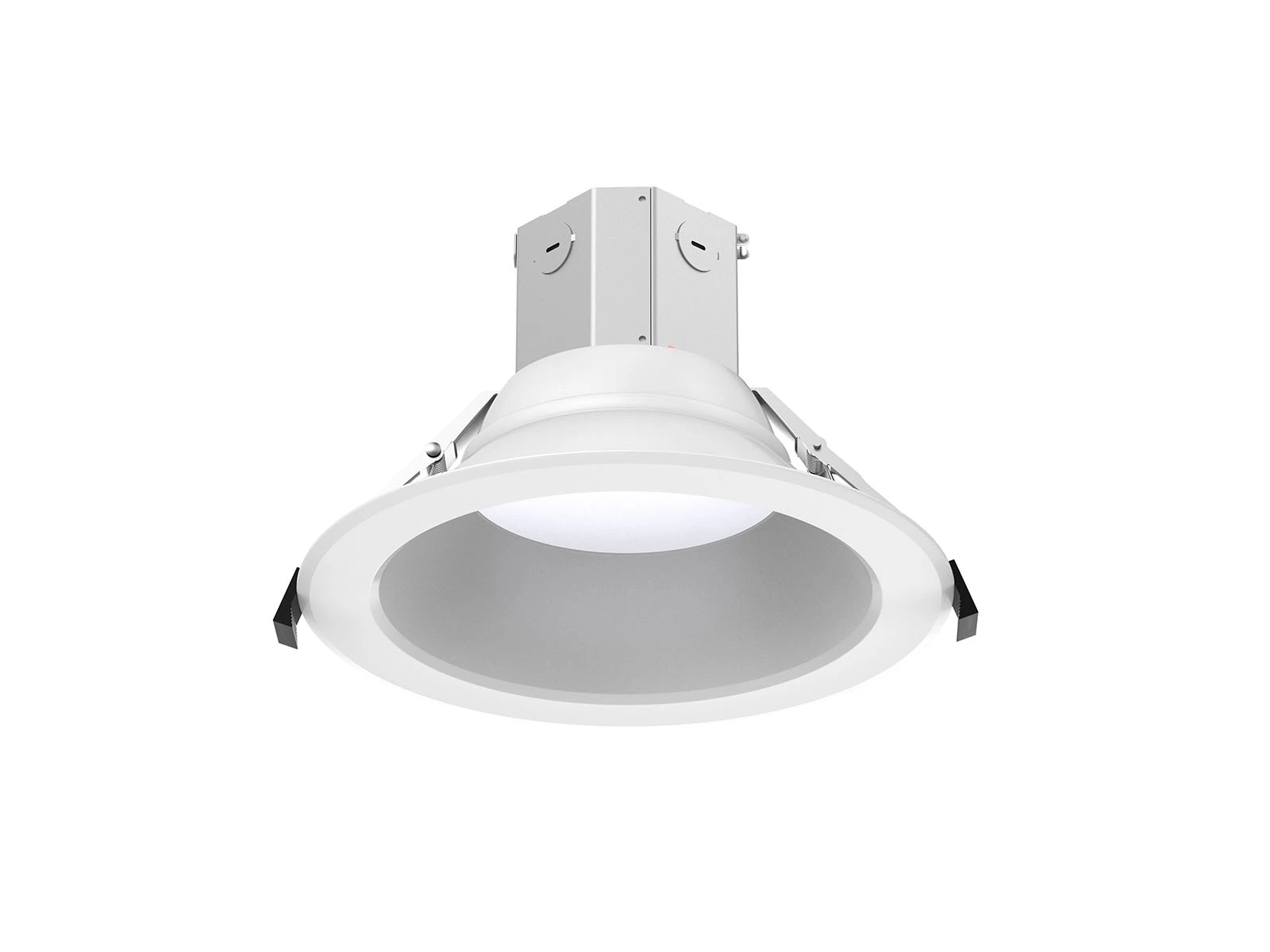

DL254-J LED Downlight
LED Downlights
DL254-J series "canless" Recessed Commercial Downlight is economical LED options with field-adjustable lumen output and color temperature. Available in 4" 6" and 8" options. Offered with     either 80 or 90 CRI, high voltage AC120-347V. Integrated J-box provides convenient wires connection and installation.
etlic-rated5warranty5cct-select5w-selecttriac0-10vwet-location80cri90cri80deg90deg
Datasheet

Features

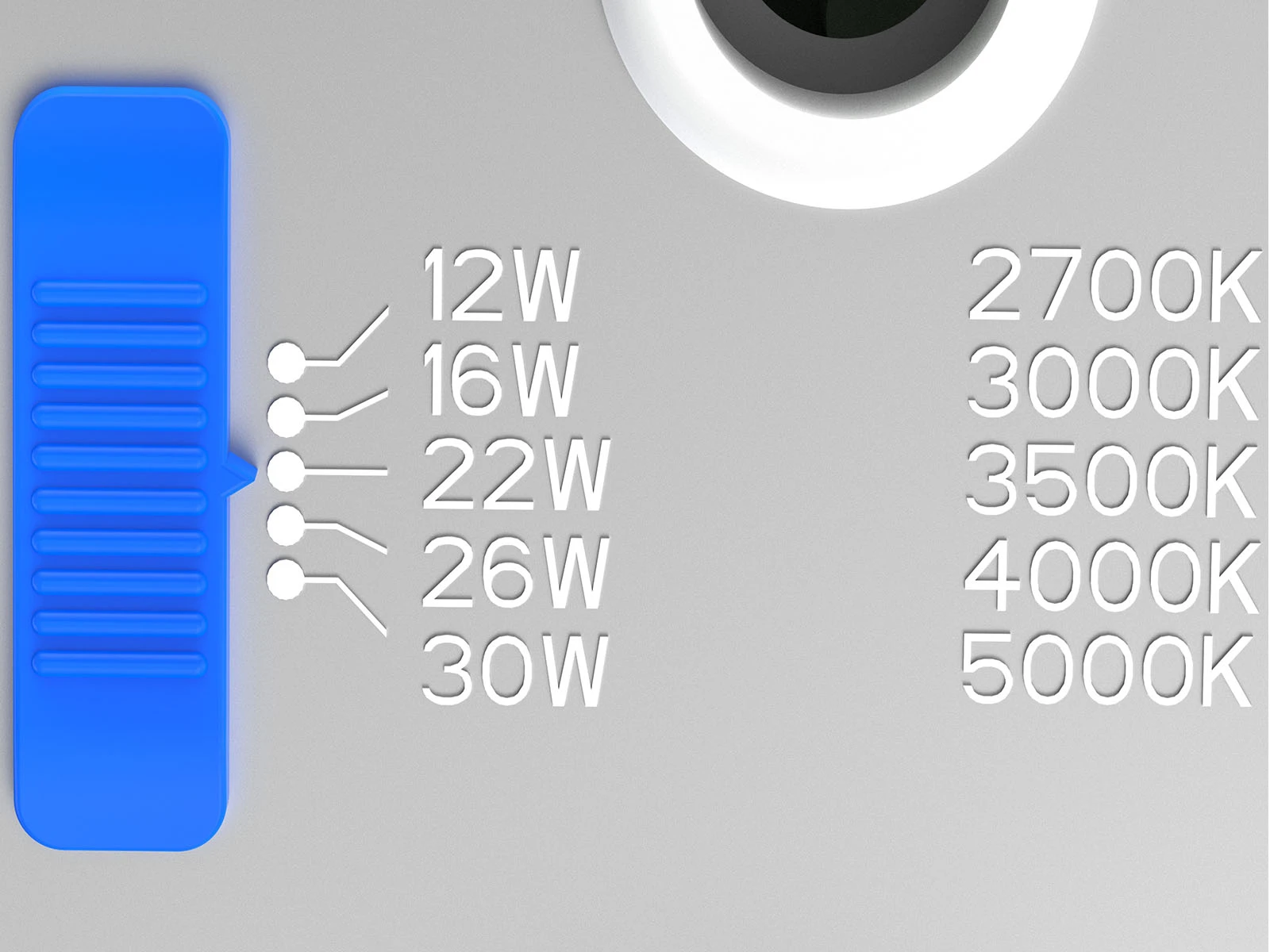

  • 5 Wattage Select and 5 CCT Select technologies offer SKU reduction.
  • High light efficiency 100LPW.
  • Ideal for new construction, remodel, and retrofit applications.
  • Smooth reflector trim offers clean, modern appearance.

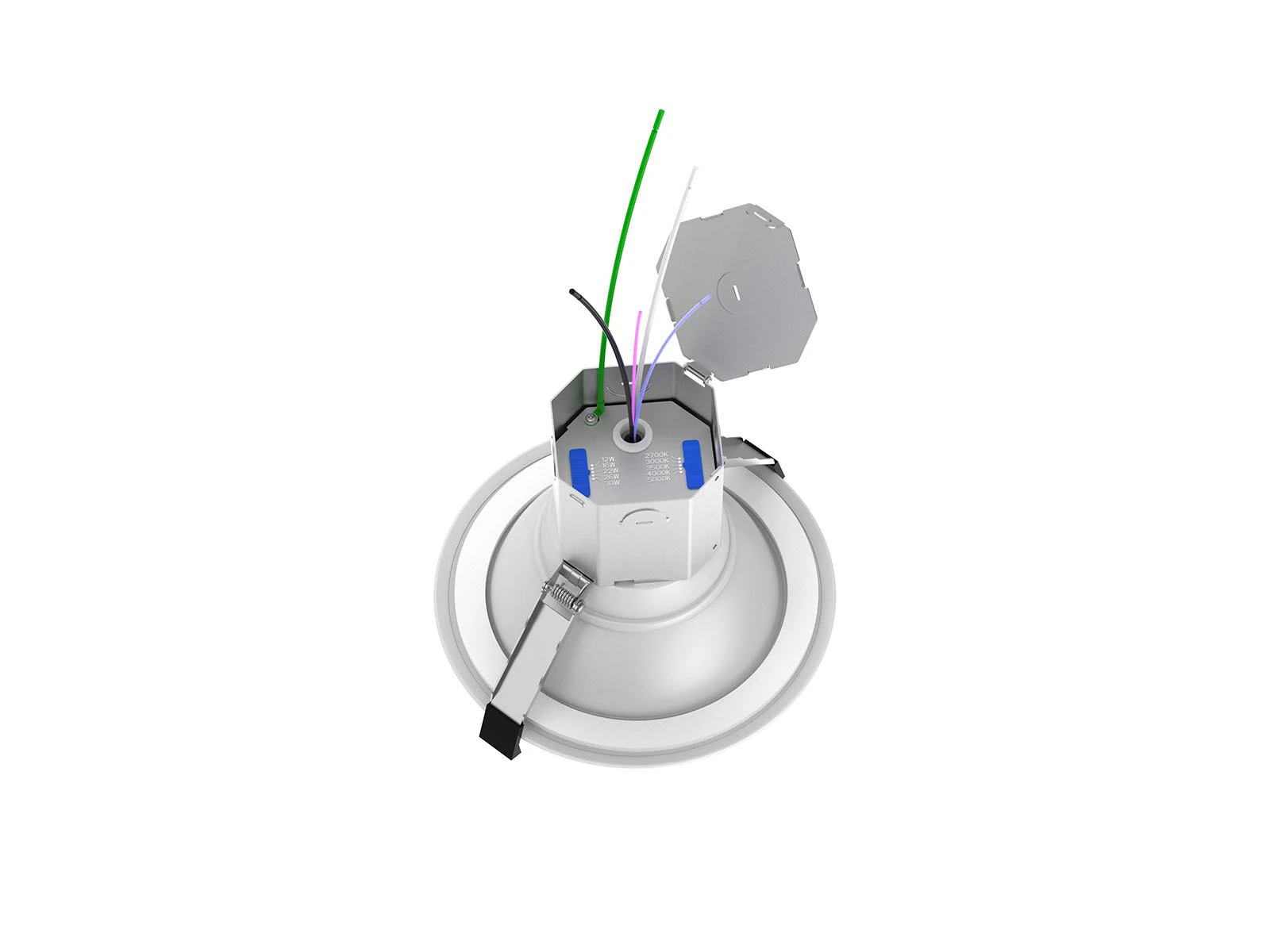

  • Integrated J-box provides convenient wires connection and installation.
  • High voltage AC120-347V, 0-10V dimming LED driver.
  • Type IC rated. • Wet Location.

Dimension

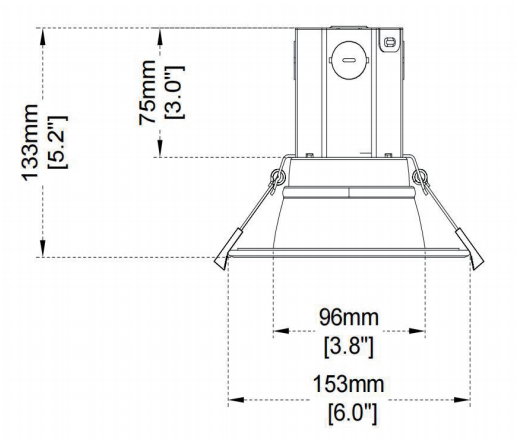

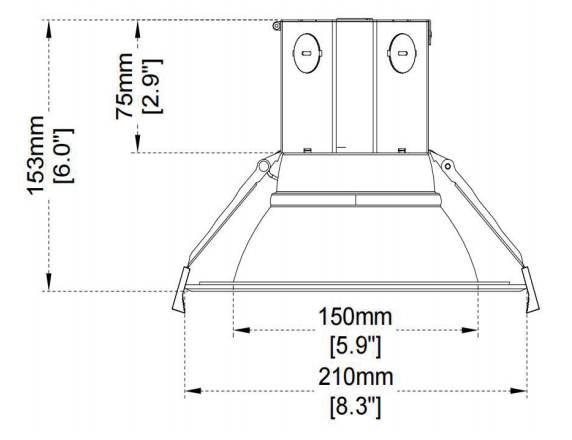

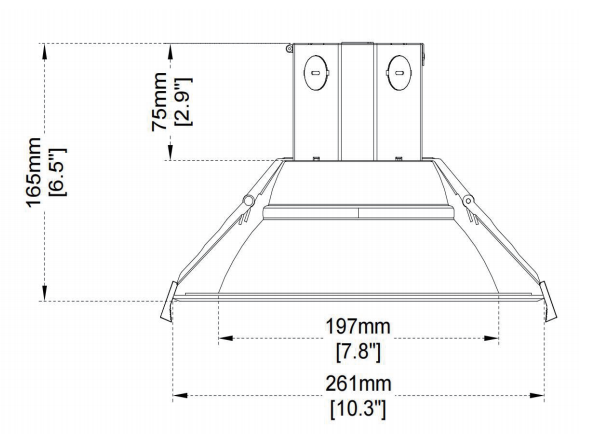

DL254J downlight 4 inch sizeDL254J downlight 6 inch sizeDL254J downlight 8 inch size

Performance Summary

Model NO. #

Size (inch)

 Watts CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle ETL certified
DL254-4-16W-A5C5-JD 4" 6/8/10/12/16W Selectable 5CCT Selectable
2700K
3000K
3500K
4000K
5000K		 100lm/W 1600 LM @16W AC120V Triac

>80

>90

 80° NO
DL254-6-30W-A5C5-JD 6" 12/16/22/26/30W Selectable 100lm/W 3000 LM @30W 80° NO
DL254-4-16W-M-A5C5-J 4" 6/8/10/12/16W Selectable 100lm/W 1600 LM @16W AC120-347V 0-10V

>80

>90

 80° NO
DL254-6-30W-M-A5C5-J 6" 12/16/22/26/30W Selectable 100lm/W 3000 LM @30W 80° YES
DL254-8-35W-M-A5C5-J 8" 16/22/26/30/35W Selectable 100lm/W 3500 LM @35W 90° YES

Remarks: All above eficacy and lumens are subject to white finish @4000K CRI80, please check IES files for accurate data.

                 CCT & Power Selectable models ship preset at the highest CCT.
