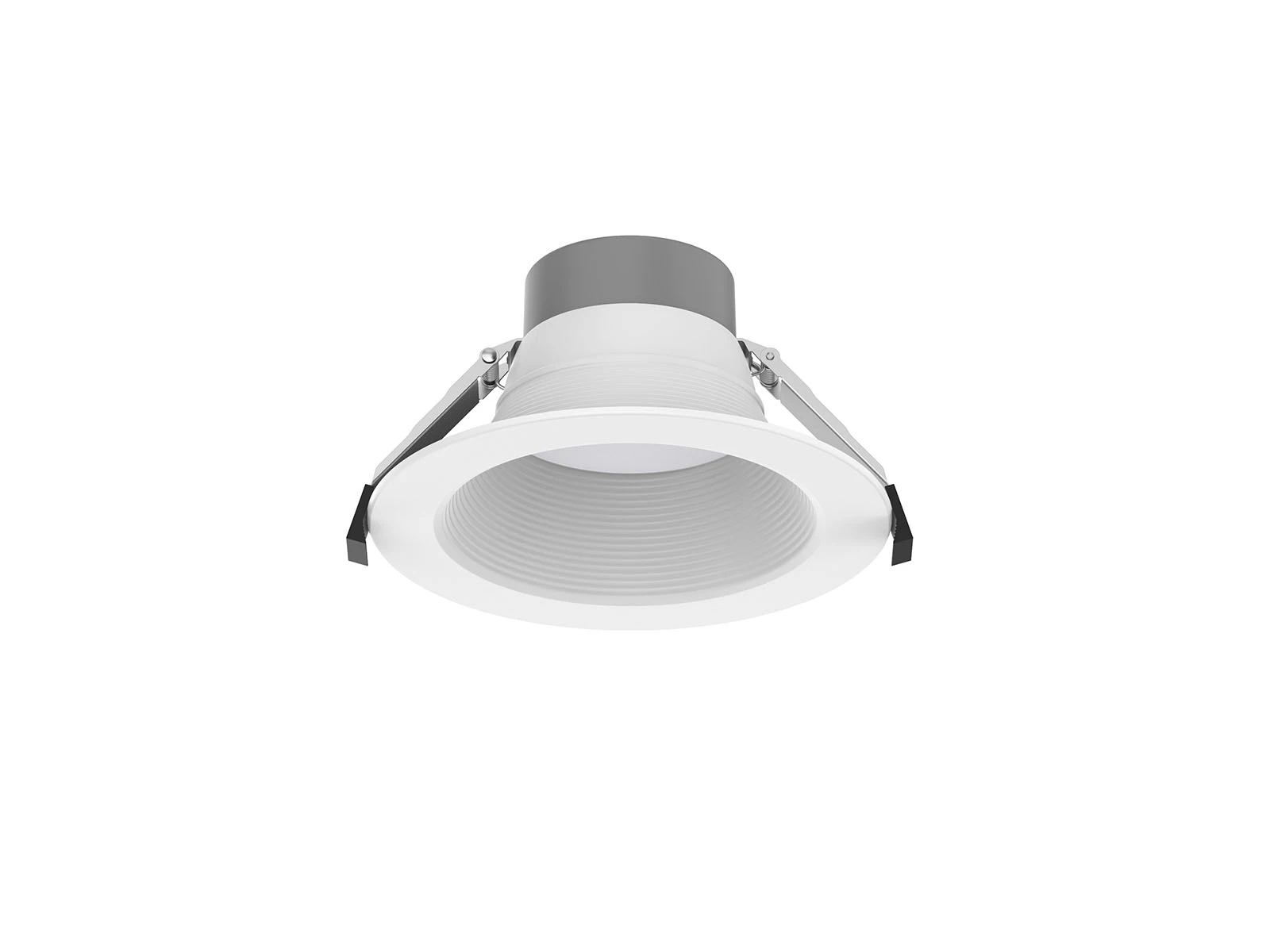

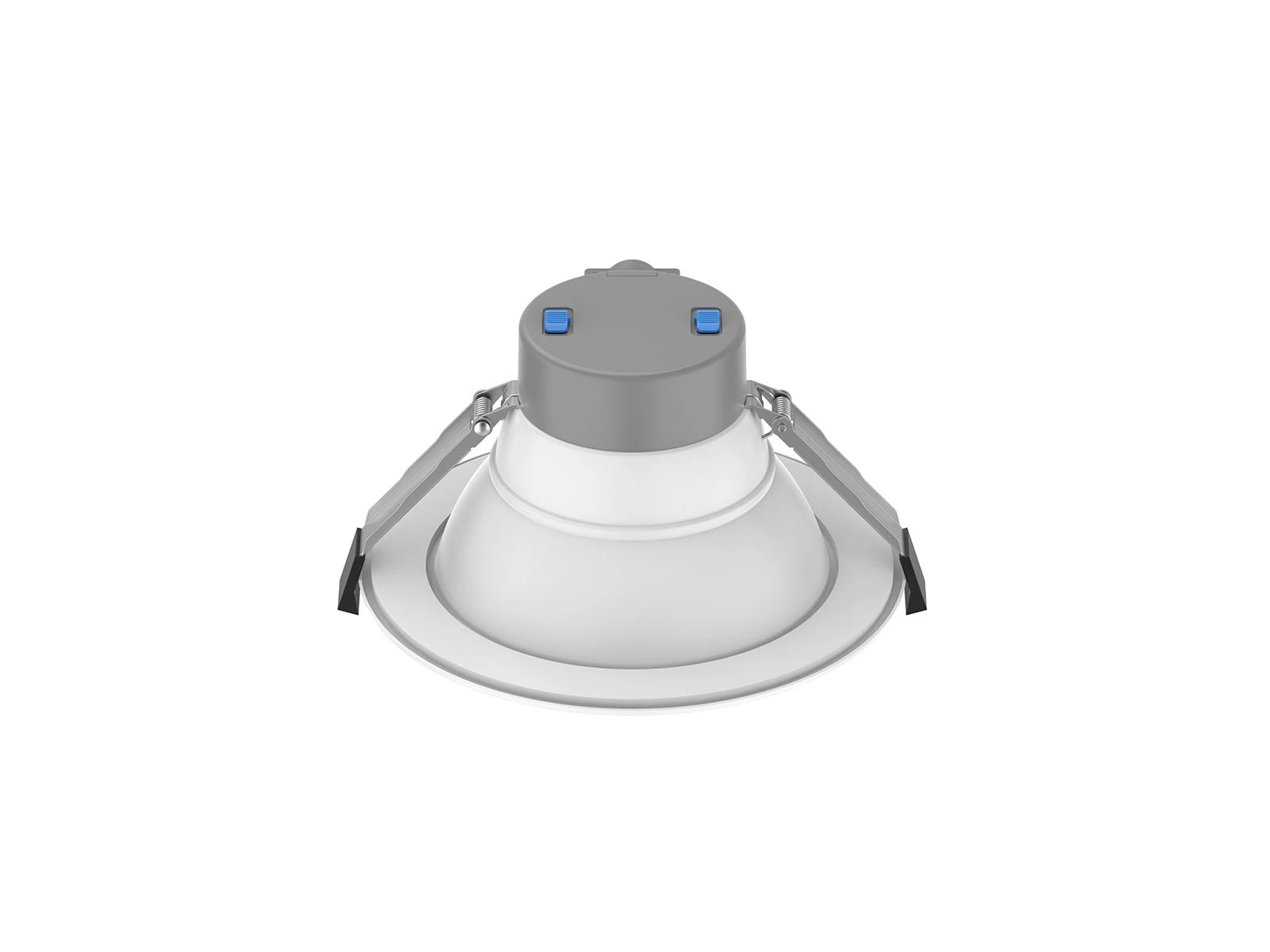

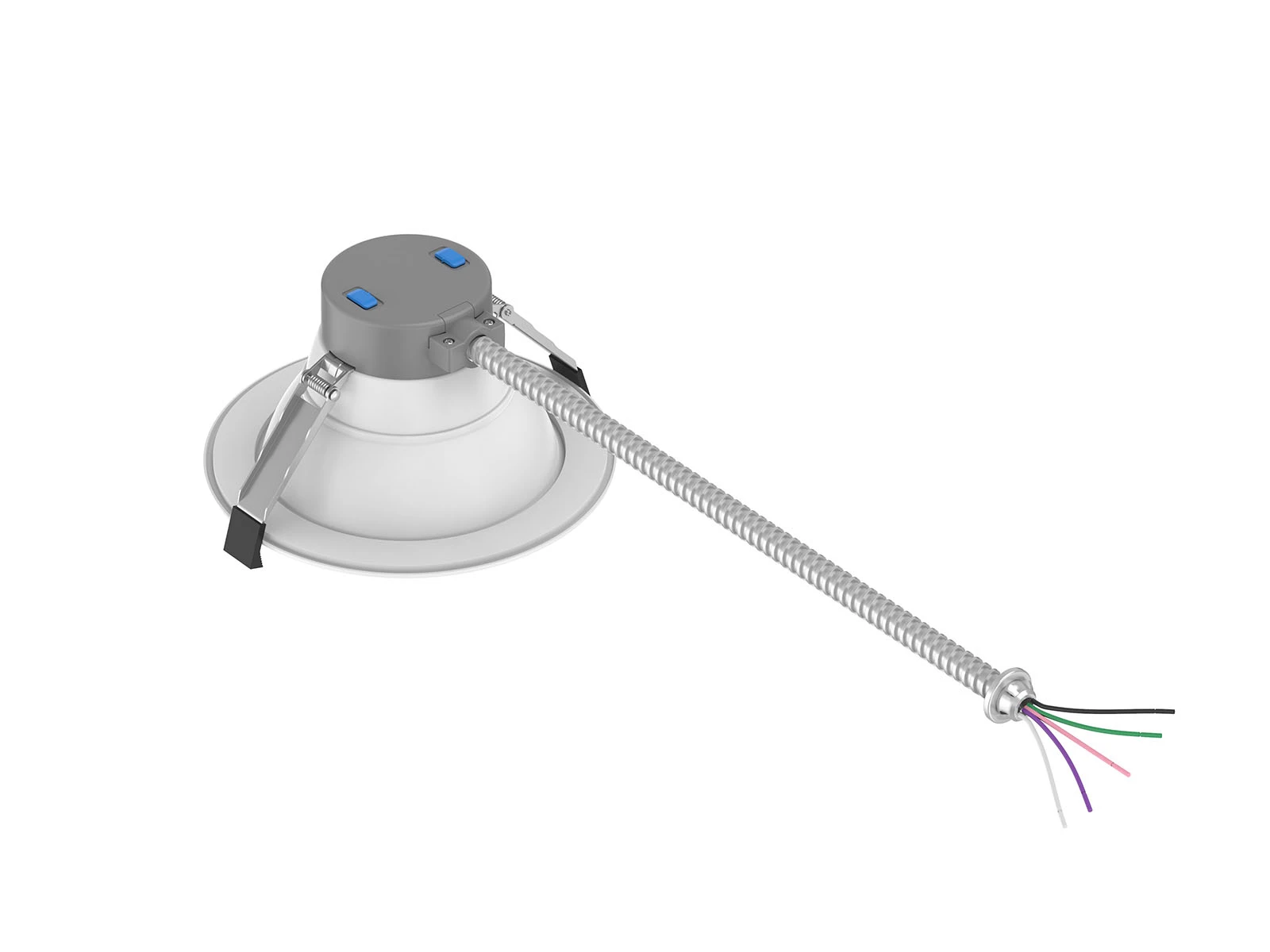

DL254 LED Downlight
DL254 LED Downlight 2
DL254 LED Downlight 3
DL254 LED Downlight 4
DL254 LED Downlight
DL254 LED Downlight 2
DL254 LED Downlight 3
DL254 LED Downlight 4
DL254 LED Downlight
LED Downlights

DL254 recessed LED downlight features tool-free installation with built-in spring clips design, allowing secure mounting directly to the ceiling without the need for a junction box. It offers 5 wattage and5 CCT options, with high light efficiency 120 LPW. The durable aluminum housing provides excellent heat dissipation and long-lasting performance. Available in 4", 6", 8", or 10" diameter options. AC120-277V voltage and 0-10V dimming LED driver provide versatile control. Type IC rated and wet location rated, ensuring durability in a variety of environments.

etlfcctitle24energy-staric-rated5warranty5cct-select5w-select0-10vwet-location80cri80deg90deg
Datasheet IES Testing Report

Features

  • The product is available in 4"/6"/8"/10" sizes to meet different venue needs.
  • 5 Wattage and 5 CCT are selectable by dip switch, one product with multiple uses.
  • High light efficiency 100-110 LM/W, with flicker-free driver.
  • Integrated lamp design, giving it a simple and elegant overall appearance.
  • Suitable for new buildings, renovation projects, and upgrades.
  • Two trim options: Bevel and Baffle styles.
  • Suitable for damp location.

Dimension

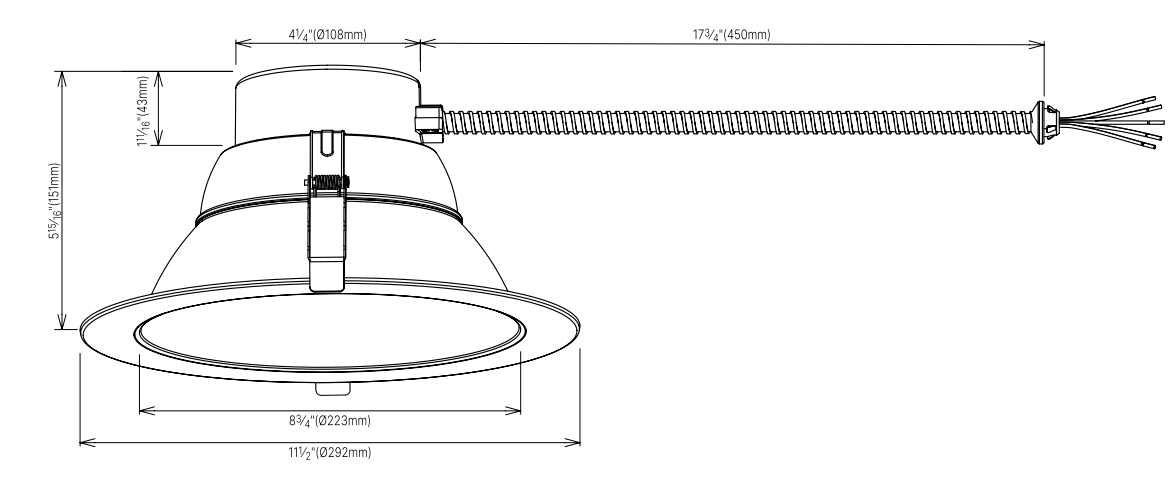

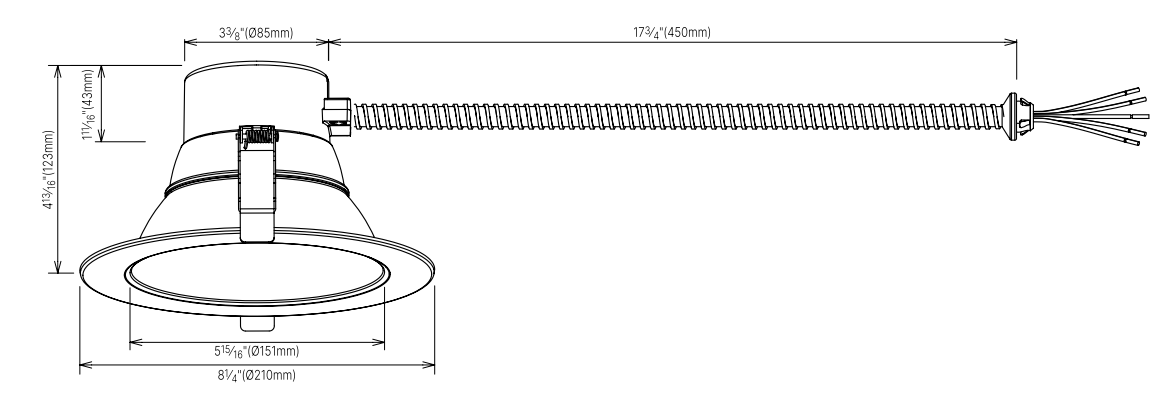

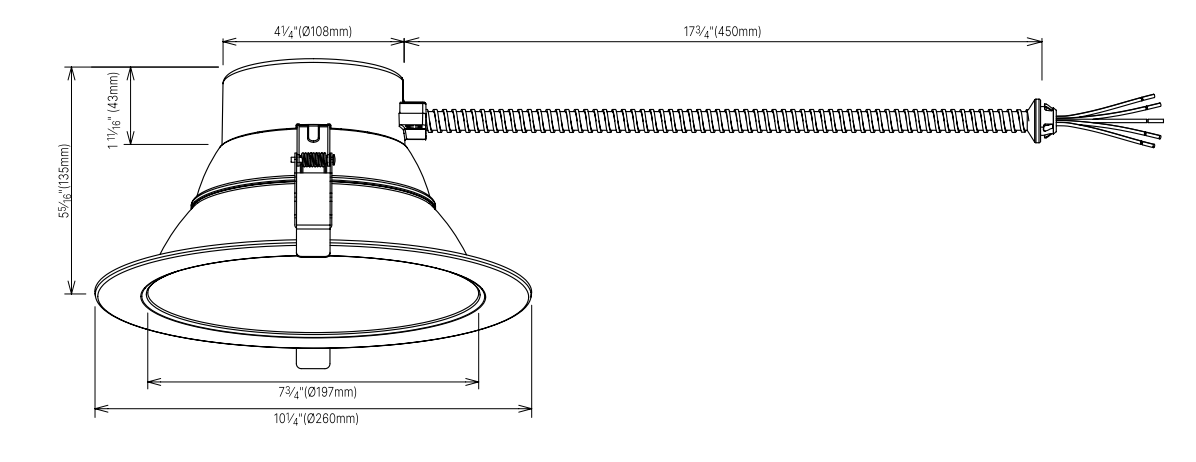

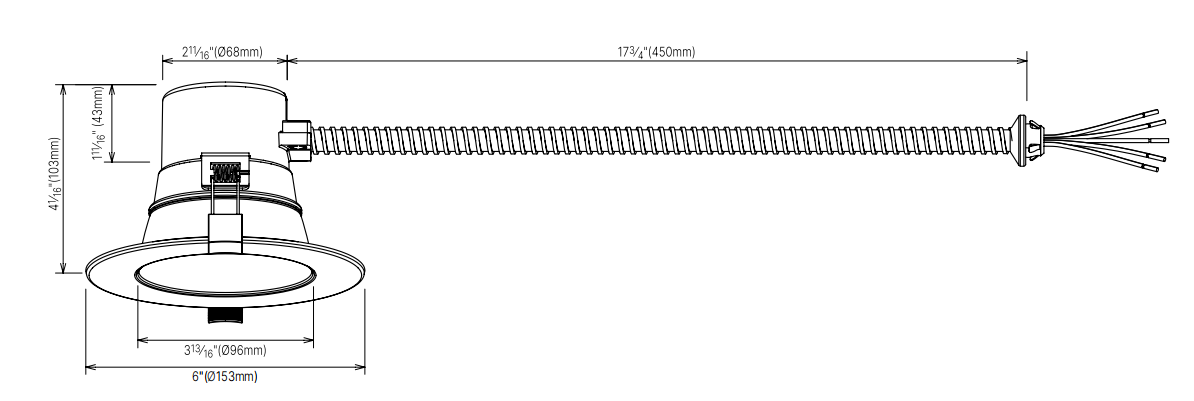

DL254 downlight 4 inch sizeDL254 downlight 6 inch sizeDL254 downlight 8 inch sizeDL254 downlight 10 inch size

Performance Summary

Model NO. Watts CCT Efficacy (lm/W) Lumens (±10%) Voltage DIM CRI Beam angle
DL254-4-16W-A5C5

5 Wattege selectable

16W/12W/10W/8W/6W

5CCT Selectable

2700K+3000K+3500K +4000K+5000K

 100-110 16W: 1550~1700
12W: 1200~1350
10W: 1000~1150
8W: 840~920
6W: 630~700		 AC120-277V 0-10V 80 80°
DL254-6-30W-A5C5

5 Wattege selectable

30W/26W/22W/16W/12W

 100-110 30W: 2650~3000
26W: 2450~2750
22W: 2150~2400
16W: 1650~1800
12W: 1250~1400
DL254-8-35W-A5C5

5 Wattege selectable

35W/30W/26W/22W/16W

 100-110 35W: 3500~3800
30W: 3000~3300
26W: 2800~3000
22W: 2300~2550
16W: 1800~2000		 90°
DL254-10-40W-A5C5

5 Wattege selectable

40W/35W/30W/26W/22W

 100-110 40W: 3850~4200
35W: 3600~3900
30W: 3150~3450
26W: 2850~3150
22W: 2500~2800
