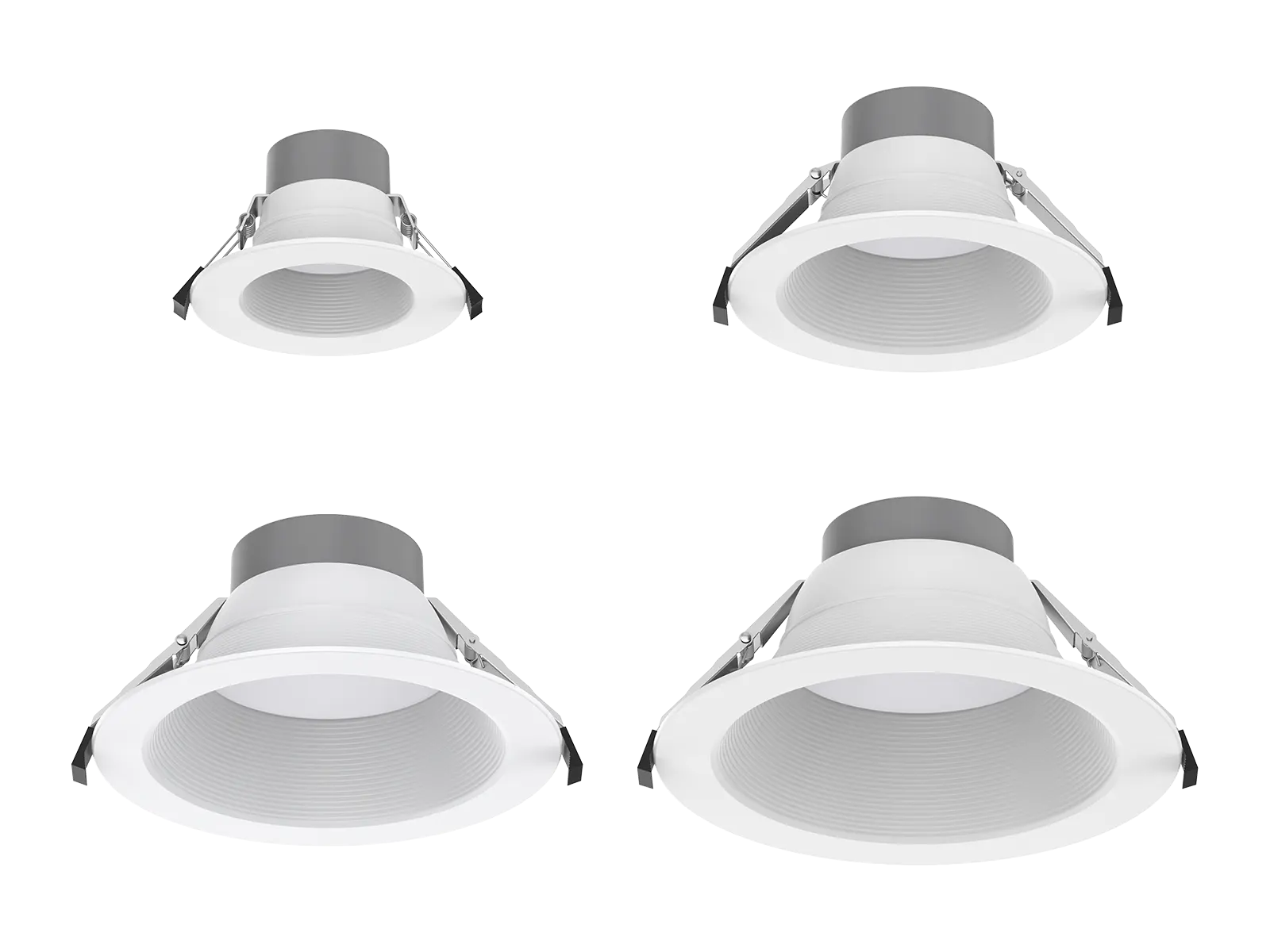

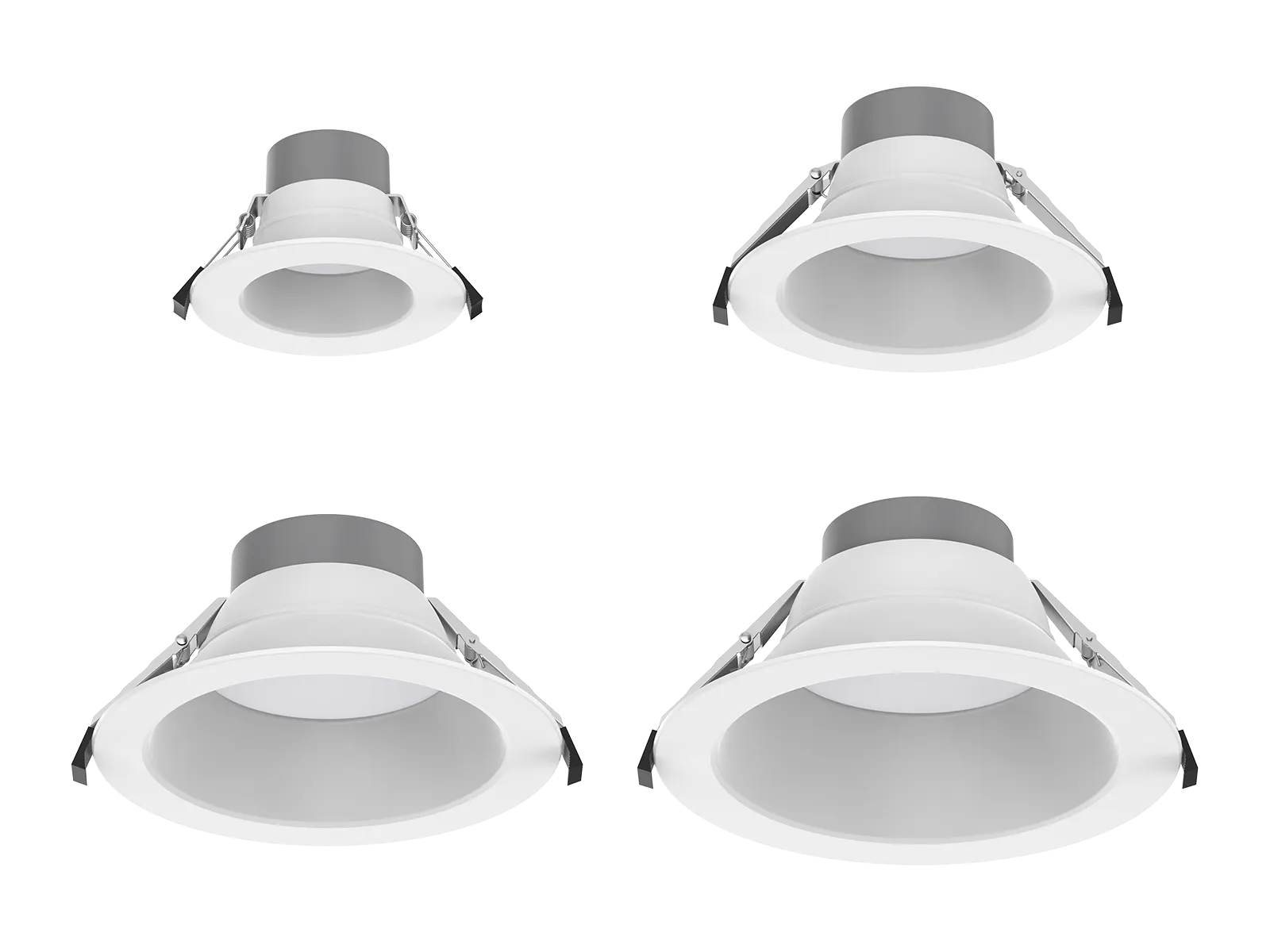

DL254 Premium LED Downlight
LED Downlights

DL254 canless recessed downlight features tool-free installation with built-in spring clips design, allowing secure mounting directly to the ceiling without the need for a   junction box. The durable aluminum housing provides excellent heat dissipation and  long-lasting performance. AC120-277V/ 120-347V and 0-10V dimming LED driver provide versatile control. It offers 4 sizes and 5Watts& 5CCT options, with high lumen efficiency 140 LM/W. It is aesthetically pleasing offering trim styles in either smooth or baffle options, plus, color finish inserts in either black, chrome, bronze or White+Matt  Silver to match any setting.




ic-rated5warranty90degfcc80criwet-location0-10v5cct-select5w-selecttitle24etl

Features

  • The product is available in 6"/8"/10" sizes to meet different venue needs.
  •  5 Wattage and 5 CCT are selectable by dip switch, one product with multiple uses.
  •  High light efficiency 130-140 LM/W, with flicker-free driver.
  •  Integrated lamp design, giving it a simple and elegant overall appearance.
  •  Suitable for new buildings, renovation projects, and upgrades.

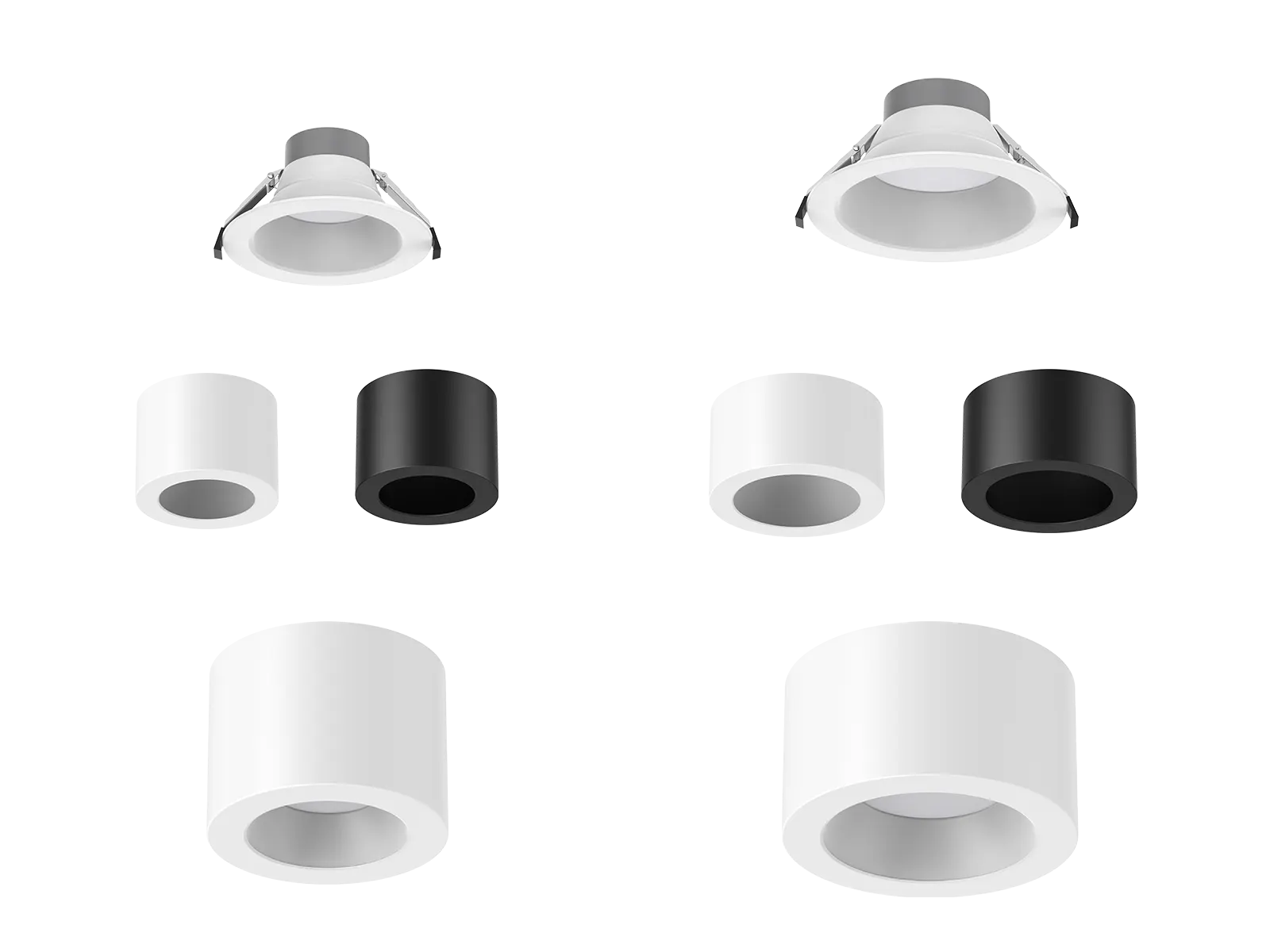

  •  Two trim options: Smooth and Baffle styles.
  •  Wet Location.

Dimension

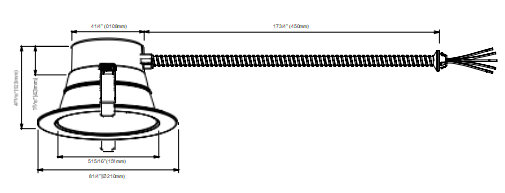

DL254 Premium LED Downlight 6 inch size(1)

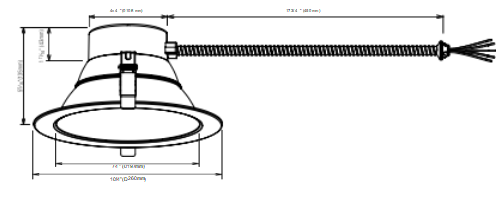

DL254 Premium LED Downlight 8 inch size(1)

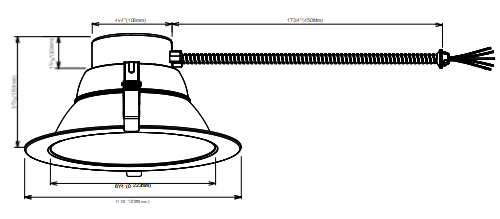

DL254 Premium LED Downlight 10 inch size(1)



Performance Summary

Model NO.

Watts

CCT

Efficacy

(lm/W)

Lumens (±10%)

Voltage

DIM

CRI

Beam

angle



DL254-6-40W-A5C5



5 Wattege selectable

40W/35W/30W/26W/22W

5CCT Selectable

2700K+3000K+3500K

+4000K+5000K



125-135

40W: 4900~5300

35W: 4400~4750

30W: 3850~4150

26W: 3350~3650

22W: 2850~3150

AC120-277V

0-10V

80



80°



DL254-8-45W-A5C5



5 Wattege selectable

45W/40W/35W/30W/26W



130-140

45W: 6050~6550

40W: 5500~6000

35W: 4800~5300

30W: 4200~4550

26W: 3700~4050



90°



DL254-10-52W-A5C5



5 Wattege selectable    52W/42W/35W/30W/26



130-140

52W: 6700~7300

42W: 5600~6000

35W: 4800~5300

30W: 4200~4550

26W: 3700~4050



90°
