DL004 LED Downlight
LED Downlights
DL004 fire rated commercial downlight, compliant with fire safety standards (UL263 and ASTM E119), 2 hours fire rating. It constructed from iron housing,  fireproof internal structure. Good function of heat dissipation ensure fixture mainten similar lumen ouptput as regular commercial downlight. Ideal for new construction, remodel and retrofit applications.
ic-rated5warranty5cct-select5w-select0-10vwet-location90cri90degetl
Datasheet IES Testing Report

Features

  •  2 hours fire rated(UL263)

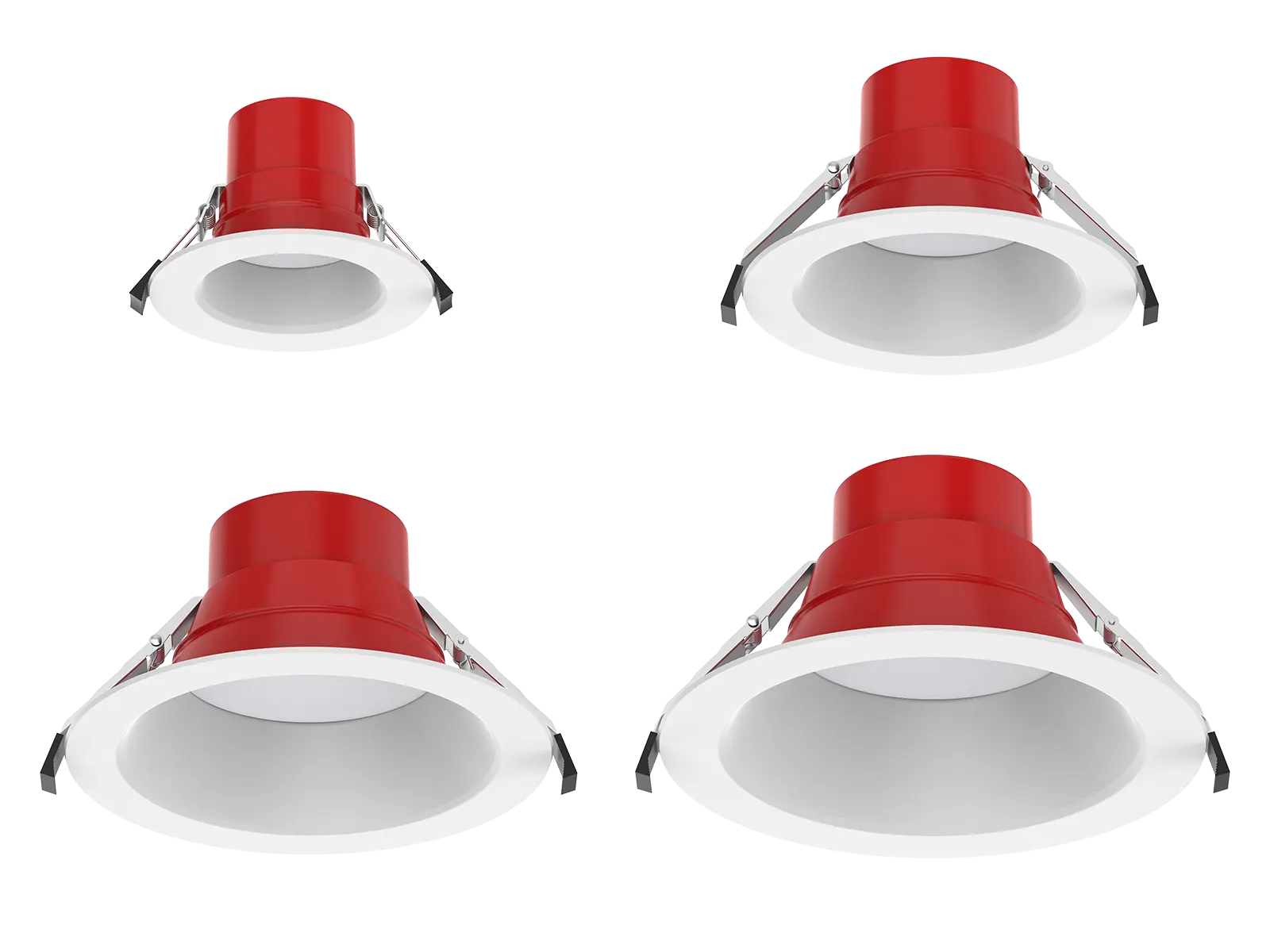

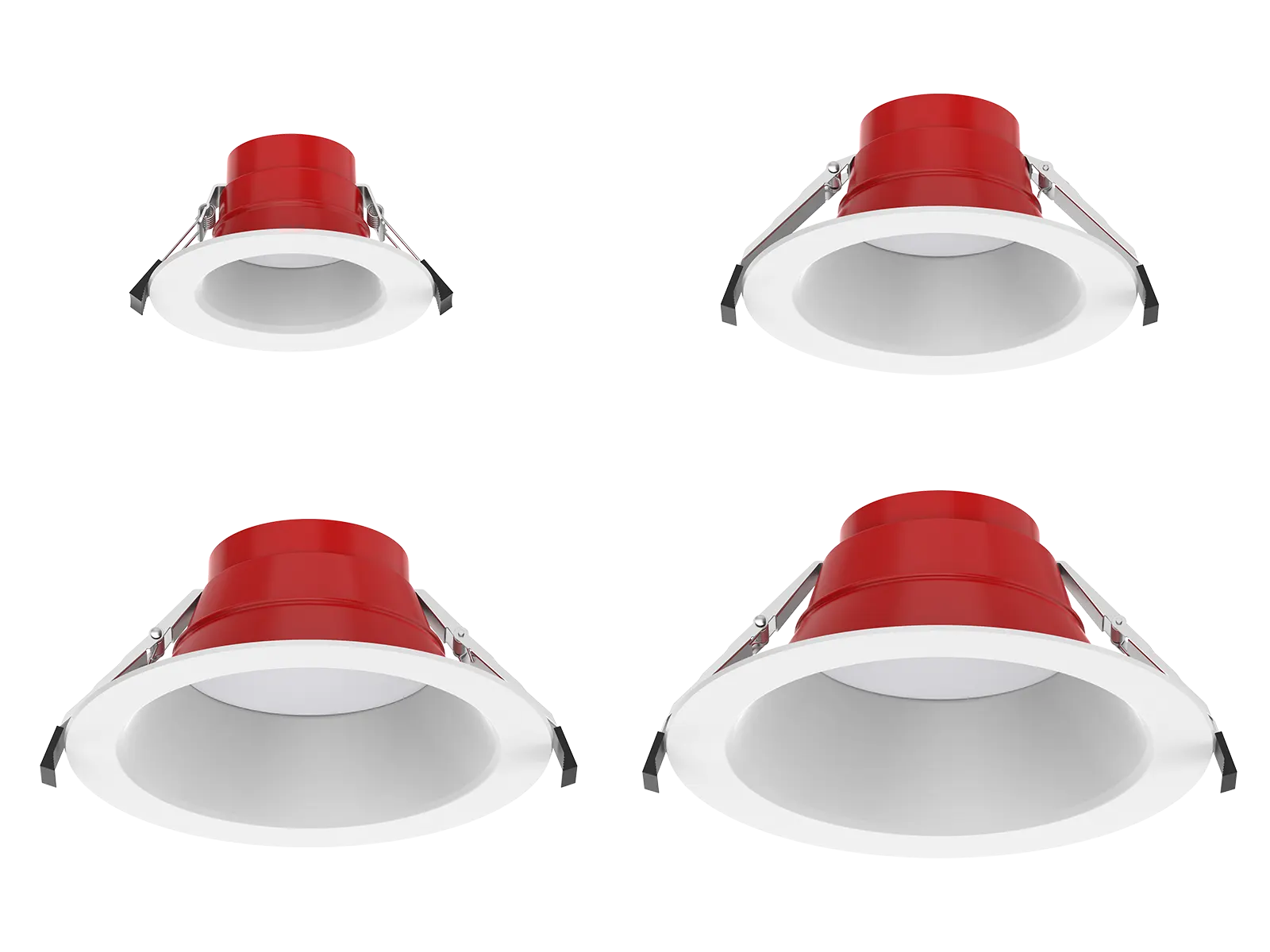

  •  The product is available in 4"/6"/8"/10" sizes to meet different venue needs
  •  5 Wattage and 5 CCT are selectable by dip switch, one product with multiple uses
  •  High lumen efficiency with 100lm/W
  •  Universal voltage 120-277V/120-347V
  •  0-10V dimming available
  •  IC rated
  •  Wet location

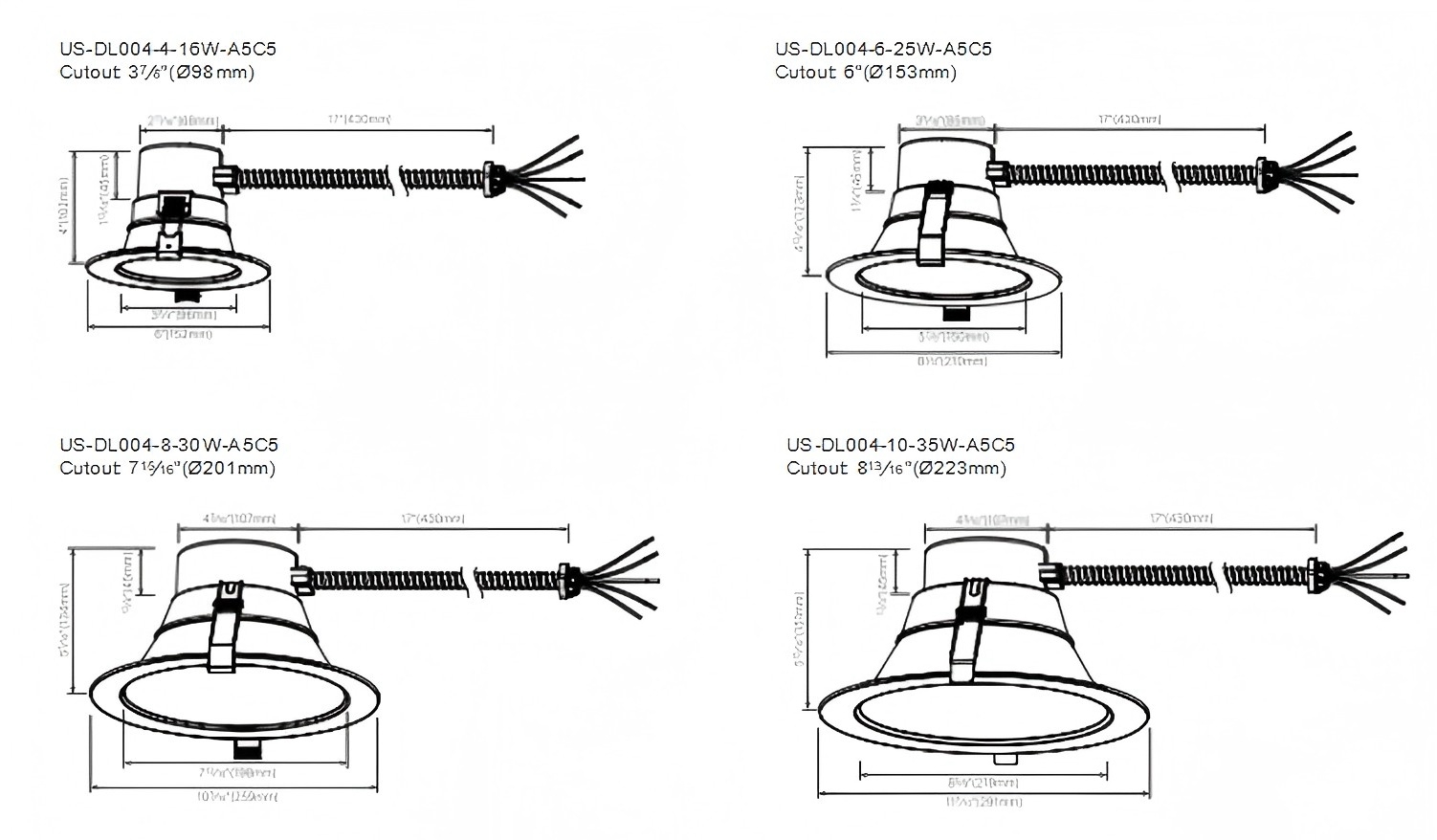

Dimension

DL004 downlight 4&6&8&10 inch size(1)

Performance Summary

Model NO.

Watts

CCT

Efficacy

(lm/W)

Lumens (±10%)

Voltage

DIM

CRI

Beam

angle

US-DL004-4-16W-A5C5

5 Wattege selectable  16W/12W/10W/8W/6W

5CCT Selectable

2700K+3000K+3500K

+4000K+5000K

90lm/W

540/720/900/1080/1440lm

AC120-277V

AC120-347V

0-10V

90



80°

US-DL004-6-25W-A5C5

5 Wattege selectable

25W/22W/18W/15W/12W

90lm/W

1080/1350/1620/1980/2250lm

US-DL004-8-30W-A5C5

5 Wattege selectable

30W/25W/22W/18W/16W

90lm/W

1350/1620/1980/2250/2700lm



90°

US-DL004-10-35W-A5C5

5 Wattege selectable

35W/30W/25W/22W/18W

90lm/W

1620/1980/2250/3150/lm

Remarks: All above efficacy and lumens are subject to white finish @4000K, black finish is less 10-15%, please check IES files for accurate data.
