DL342 LED Downlight

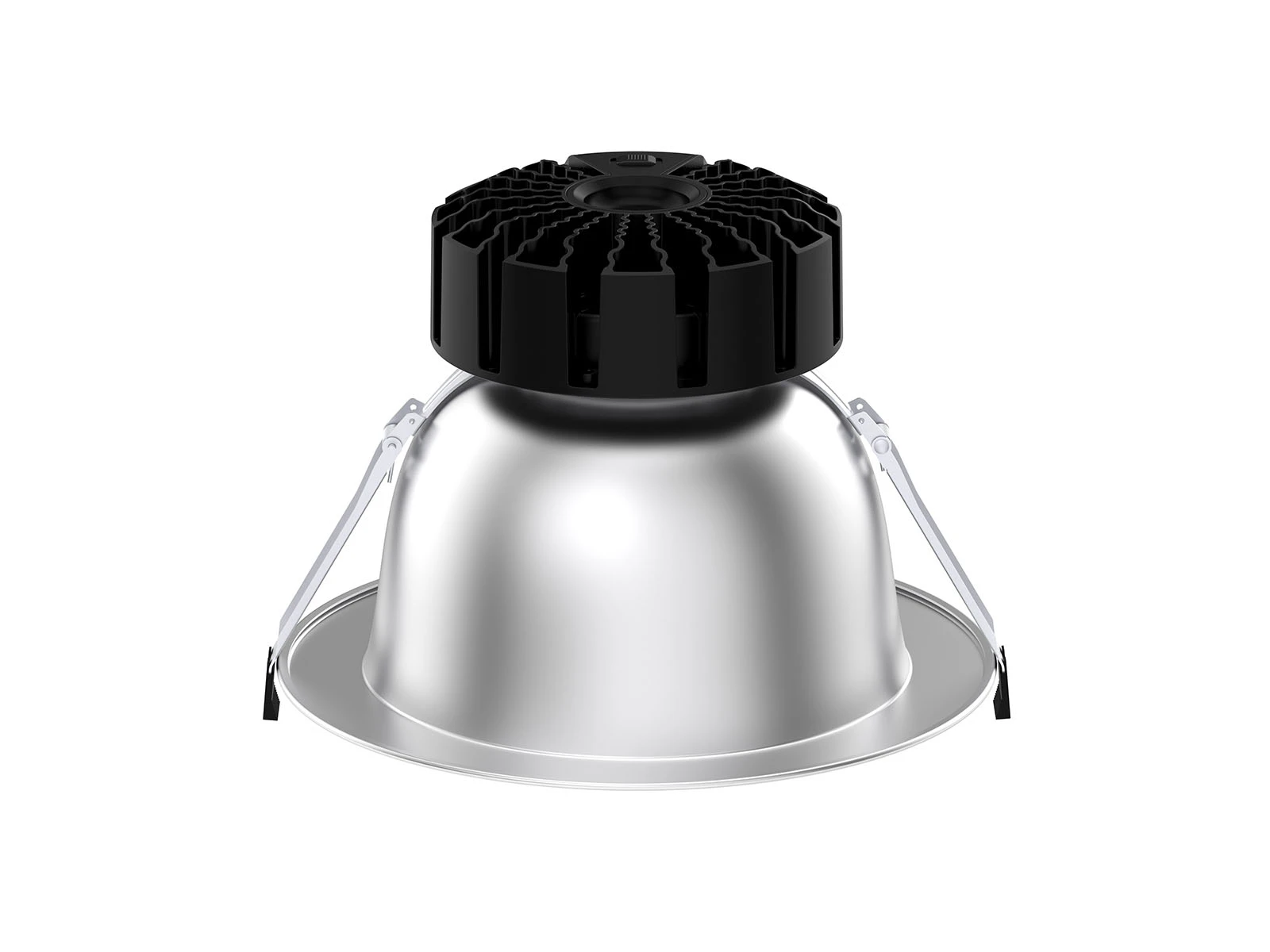

DL342 LED Downlight 2

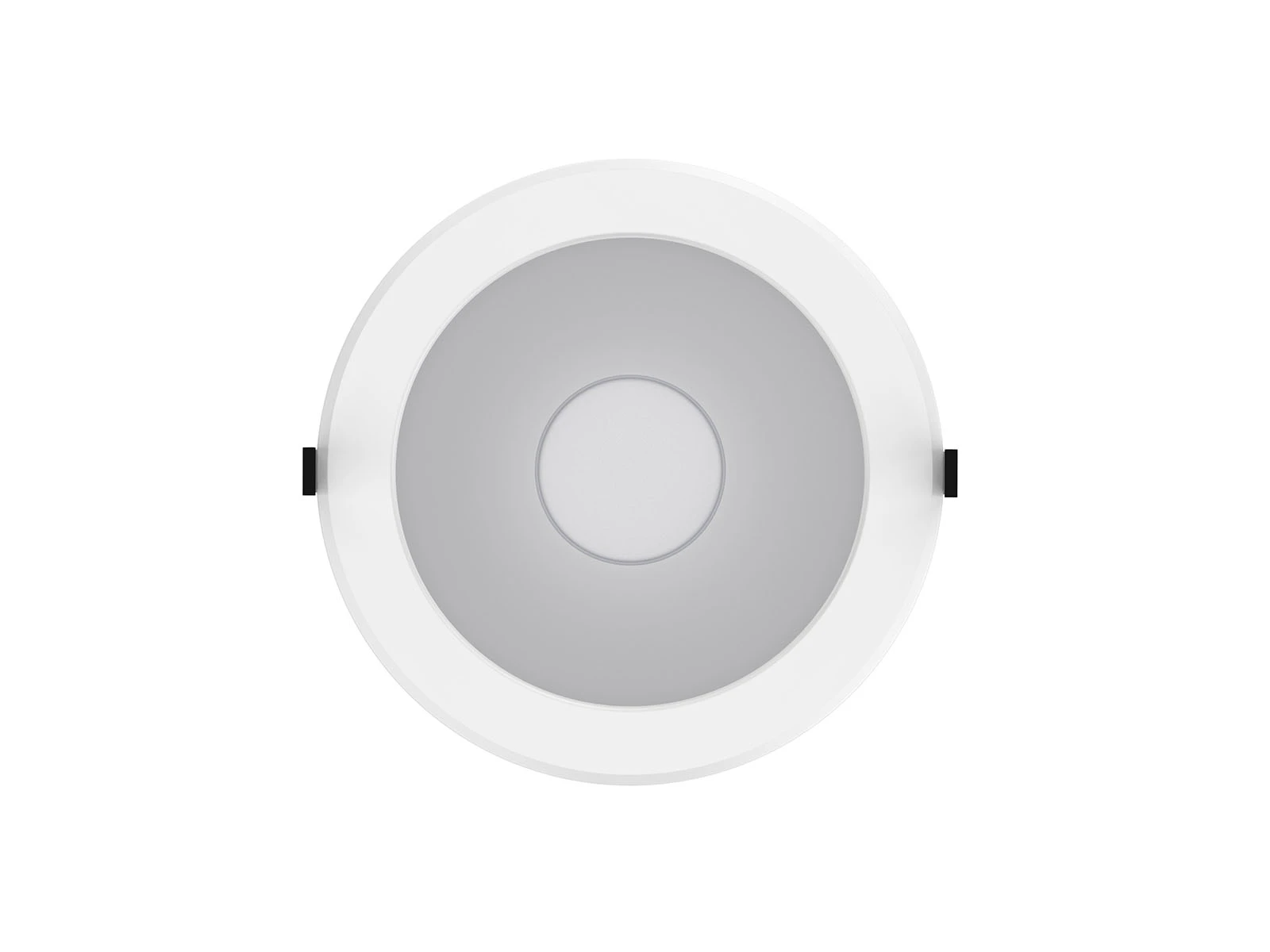

DL342 LED Downlight 3

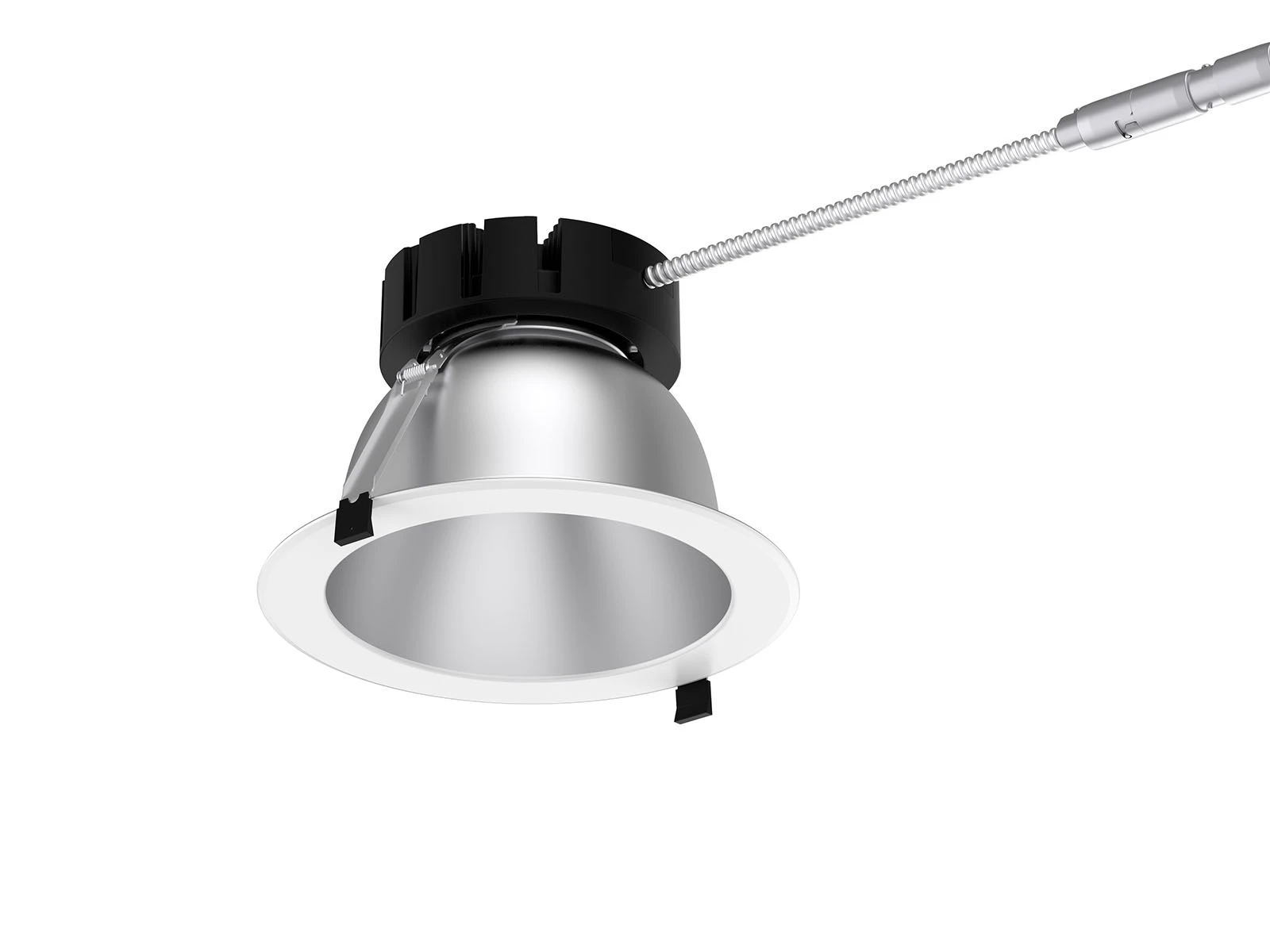

DL342 LED Downlight 4
DL342 LED Downlight
DL342 LED Downlight 2
DL342 LED Downlight 3
DL342 LED Downlight 4
DL342 LED Downlight
LED Downlights
This retrofit kits is a deep reflector design.lt has complete size: 4inch, 6inch, 8inch, 9.5inch, two beam angles 50'/70"for 4inch and 6inch, 40"/60"for 8inch and 9.5inch. Besides, it adopls high lumen SMD light source which supports adjustable CCT and adjustable power, wet localion design is suitable for wider application area.
etlenergy-staric-rated5warranty3cct-select3w-select0-10vwet-location80cri40deg50deg60deg70deg
Datasheet IES Testing Report

Features

  • Complete size options: 4/6/8/9.5inch.
  • High lumen efficiency,100LP W.
  • 40 degree shielding angle.
  • Interchangeable CCT (3000K+4000K+5000K) with slide switch.
  • Adjustable power with slide switch.
  • External flicker free driver with 1-10vdimming way.
  • Two beam angles reflectors interchangeable: 50°/70° for 4inch and 6inch, 40°/60° for 8inch and 9.5inch.
  • Wet location.

Dimension

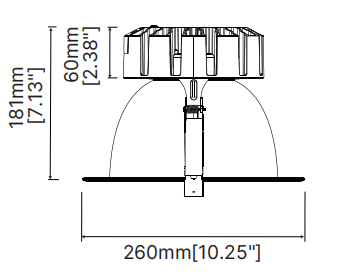

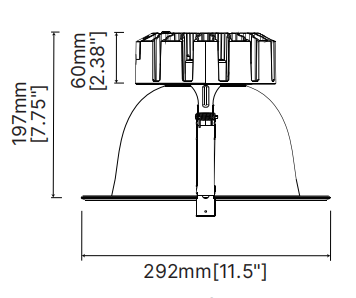

DL342 downlight 4 inch sizeDL342 downlight 6 inch sizeDL342 downlight 8 inch sizeDL342 downlight 10 inch size

Performance Summary

Code No. DL342-4-20W DL342-6-40W DL342-8-60W DL342-10-60W
Dimension(Inch) Ø6"×5" Ø8-1/4"×6-1/8" Ø10-1/4"×7-1/8" Ø11-1/2"×7-3/4"
Cutout (Inch) 110-133mm(4-5/16"~5-1/4") 160-190mm(6-5/16"~7-1/2") 205-241mm(8-1/16"~9-1/2") 225-270mm(8-7/8"~10-5/8")
Watt(W) 20/15/10W 40/30/20W 60/50/40W
Rated Input Voltage(V) AC120-277V
Input Voltage(V) AC110-300V
LED Module Input DC36V 485/360/240mA DC36V 1000/780/500mA DC36V 1500/1250/1000mA
Light Source SMD
SDCM <6
CCT(K) 1-CCT: 2700K/3000K/3500K/4000K/5000K   ||   3-CCT: 3000K + 4000K + 5000K
CCT Selection DIP Switch YES
Luminous Flux (lm) ±5% Non-DIM 1-CCT -
DIM 10W:850-950 20W:2000-2200 40W:3900-4300 40W:3900-4300
15W:1250-1350 30W:2850-3150 50W:4800-5200 50W:4800-5200
20W:1700-1850 40W:3600-4000 60W:5700-6200 60W:5700-6200
Non-DIM 3-CCT -
DIM 10W:850-950 20W:2000-2200 40W:3900-4300 40W:3900-4300
15W:1250-1350 30W:2850-3150 50W:4800-5200 50W:4800-5200
20W:1700-1850 40W:3600-4000 60W:5700-6200 60W:5700-6200
CRI ≥80
Beam Angle (°) 50°/70° 40°/60°
UGR -
LED Driver Driver built-out
Dimming  Option 1-10V
Sensor No
Emergency Kits No
Electrical Class With ground wire
Ingress Protection (IP Rating) Wet location
Impact Resistance (IK Rating) -
Product Finishing(Base) Black RAL9005
Materials of Optics PC+AL1070
Materials of Housing Magnesium alloy AZ91D
Lifetime (hr) 50,000h
Glow wire test (℃ ) 750℃
Operating Temp. (℃ ) -20℃ ~40℃
Storage Temp. (℃ ) -20℃ ~65℃
Installation Recessed
