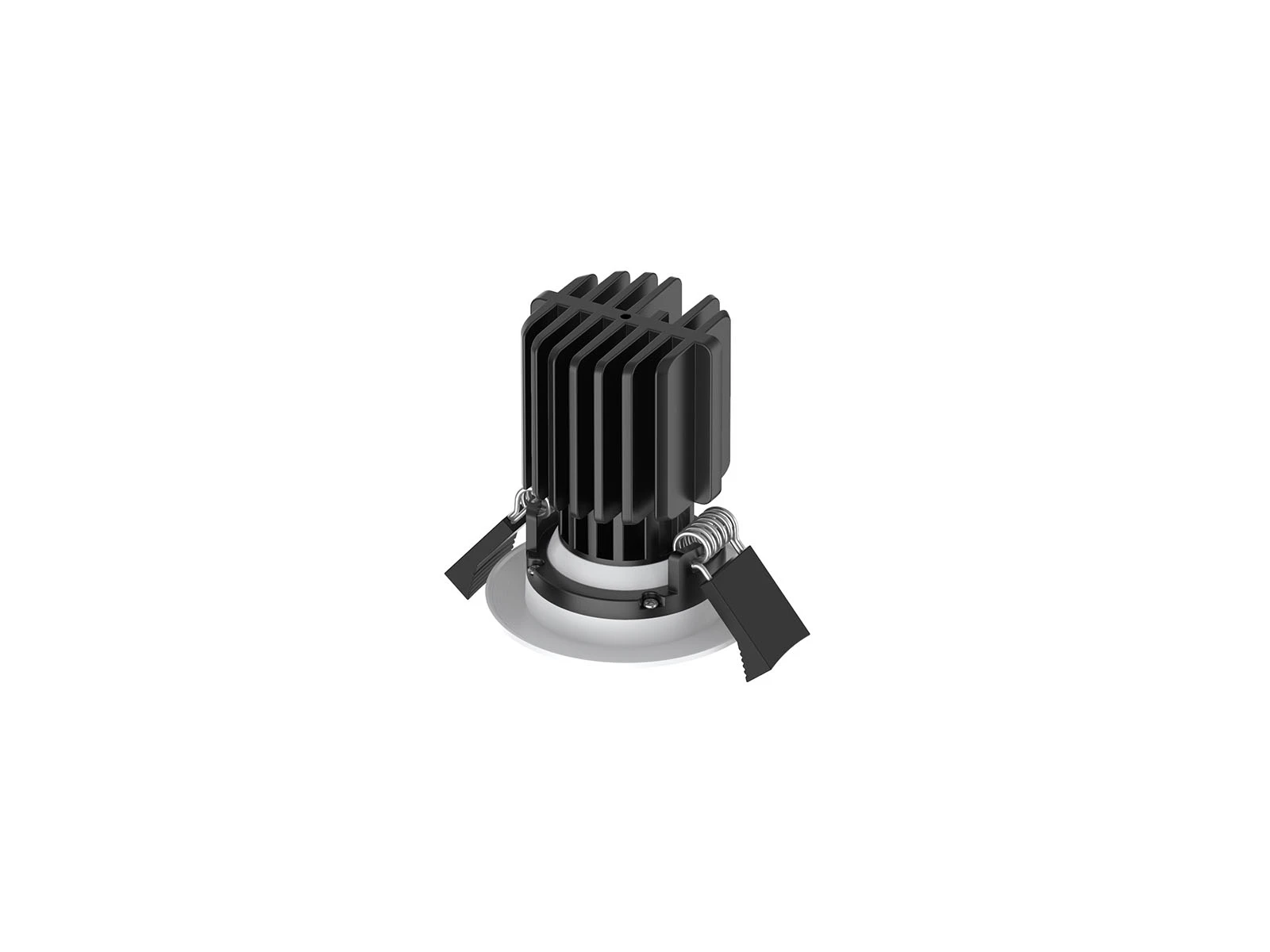

CL001 LED Downlight 2

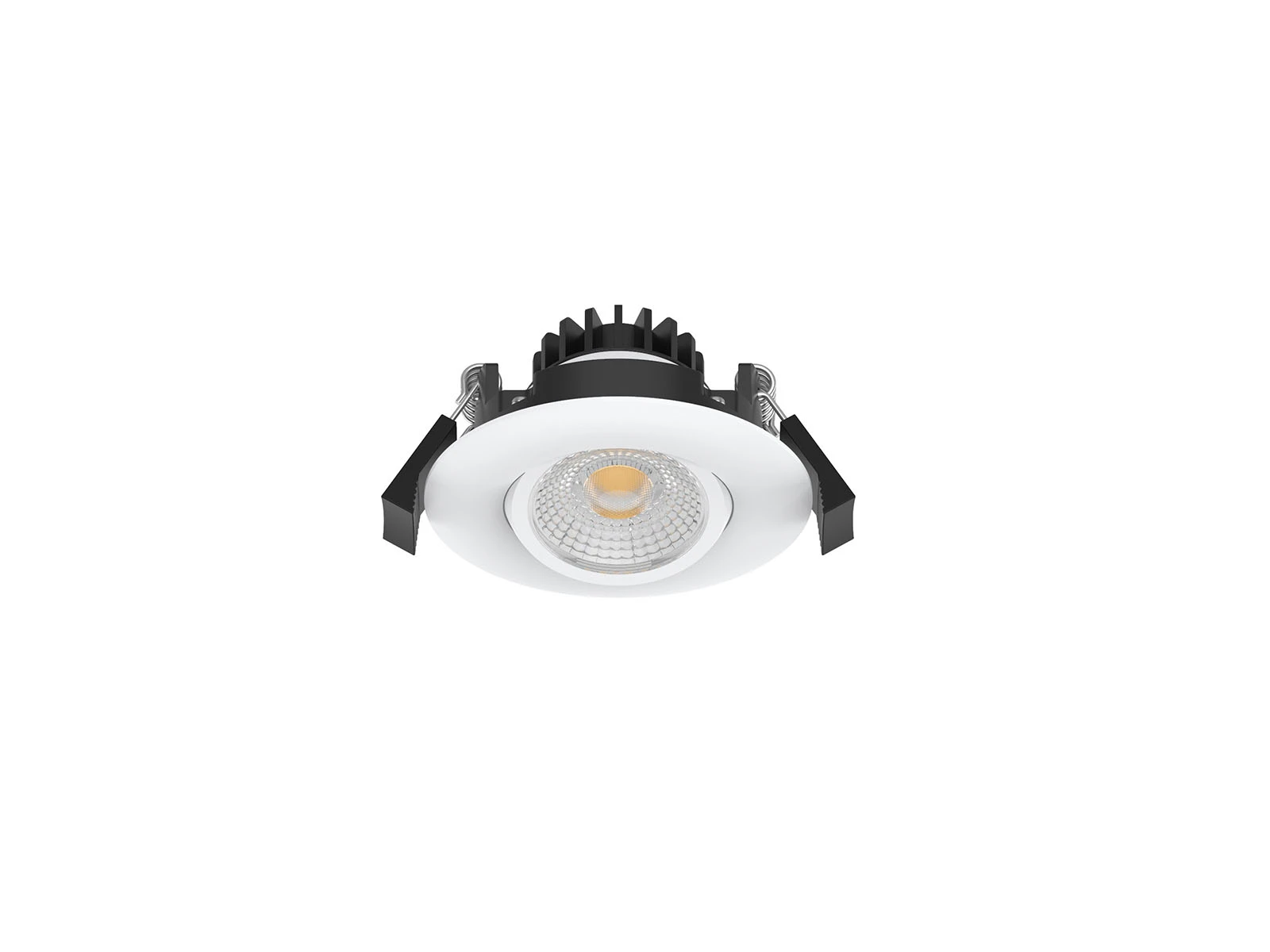

CL001 LED Downlight 3

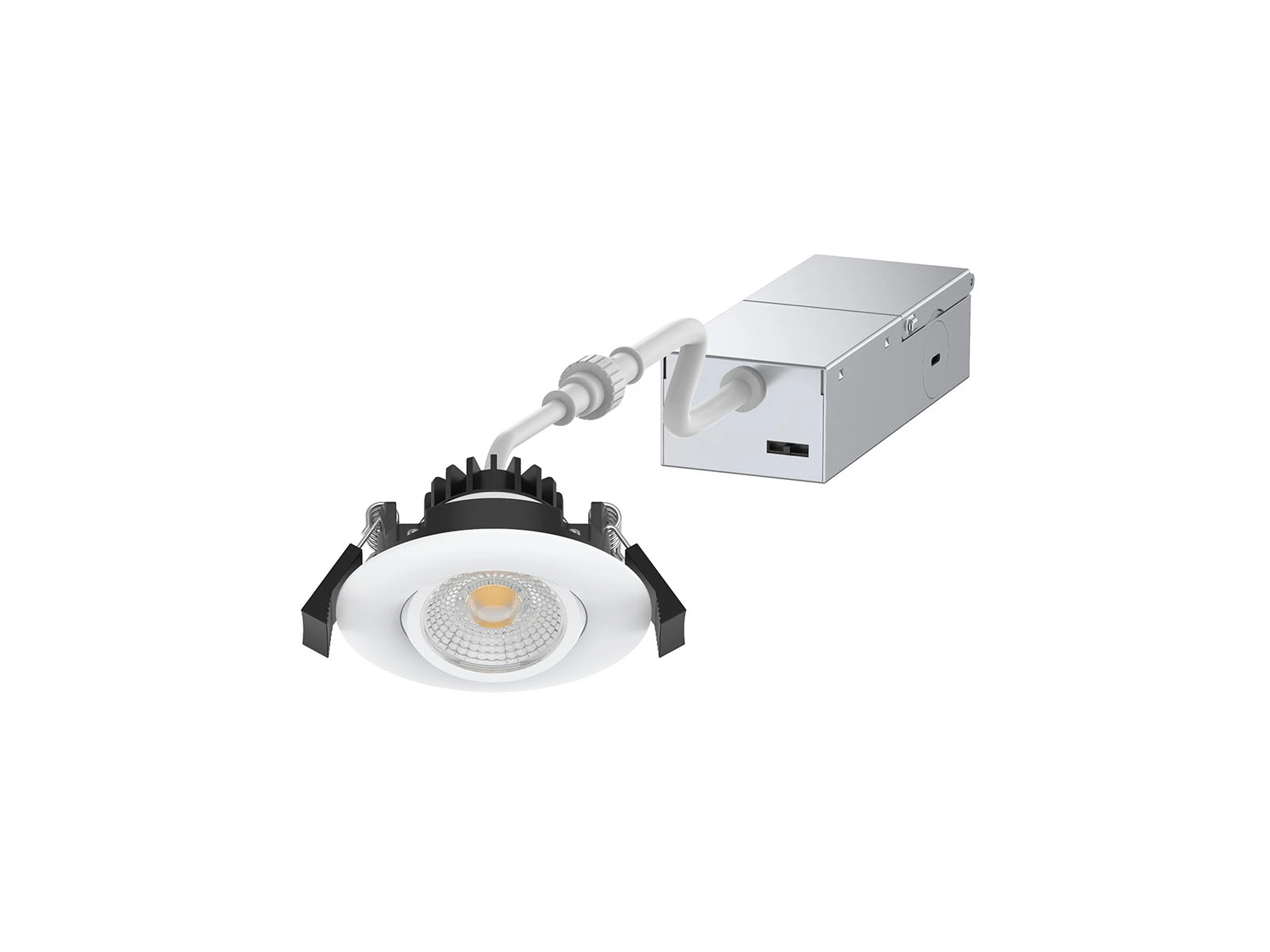

CL001 LED Downlight 4
CL001 LED Downlight
CL001 LED Downlight 2
CL001 LED Downlight 3
CL001 LED Downlight 4
CL001 LED Downlight
LED Downlights
CL001 recessed downlight features a horizontal rotation of 30°and a full 360°vertical rotation, ensuring smooth, seamless movement without any dead zones. Available in 2-inch, 3-inch, 4-inch, and 6-inch sizes, this versatile fixture is suitable for both indoor and outdoor lighting applications. Constructed from high-quality ADC12 aluminum,it is ideal for use in bedrooms, living rooms, corridors, and other residential areas.
etl5warranty5cct-selecttriacwet-location90cri36deg
Datasheet IES Testing Report

Features

  • 360 degree rotate horizontally and 30 degree rotate vertically, with smooth movement and no dead angles.
  • Full range of sizes available: 2/3/4/6 inches, with cutout sizes conforming to standard North American dimensions.
  • Made of ADC12 aluminum alloy, providing good heat dissipation.
  • Round and square shapes are available.
  • Triac dimming.
  • 5 CCT selectable by dip switch.
  • Isolated flicker-free driver.
  • High color rendering index: CRI 90.

Dimension

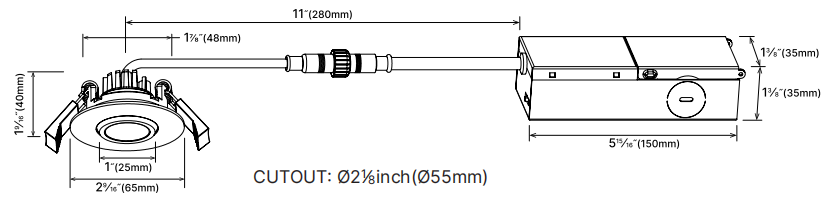

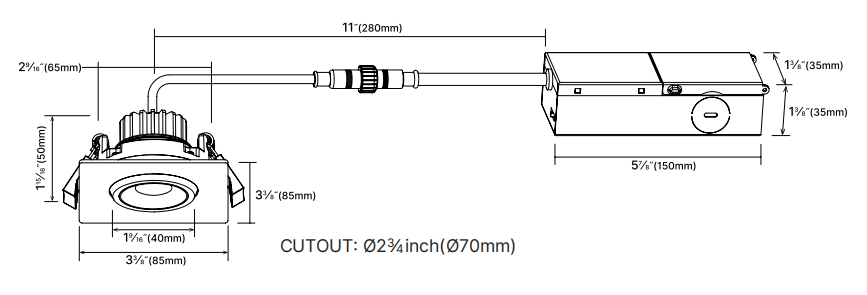

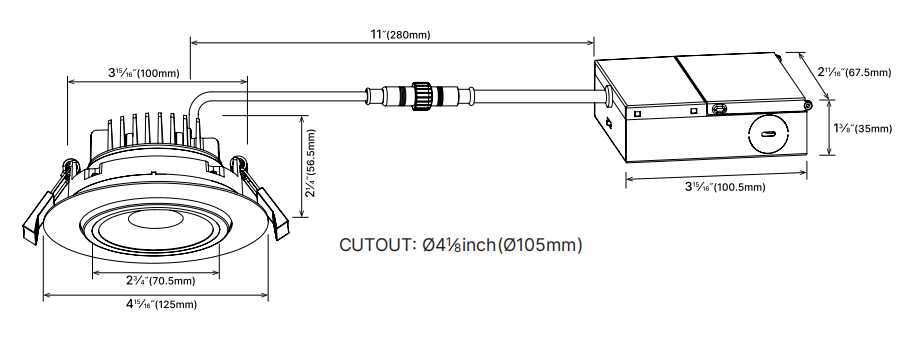

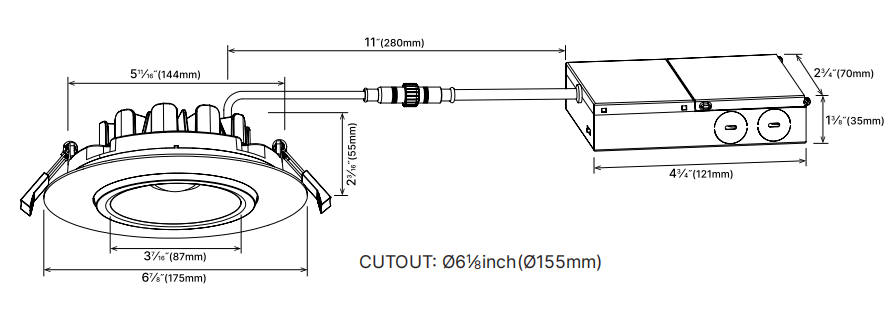

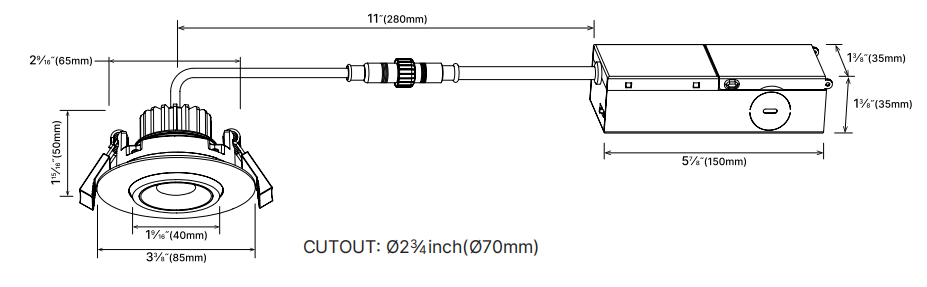

CL001A downlight 2 inch sizeCL001A downlight 3 inch sizeCL001B downlight 3 inch sizeCL001A downlight 4 inch sizeCL001A downlight 6 inch size

Performance Summary

Model NO. Size (inch) Watts CCT Efficacy Lumens (±10%) Voltage CRI DIM Beam Angle
US-CL001A-2-5W-DC5 2 5W 5CCT Selectable
2700K+3000K+3500K+4000K+5000K		 90lm/W 400lm~450lm AC120V 90 Triac 40°
US-CL001A-3-8W-DC5 3 8W 700lm~800lm 36°
US-CL001B-3-8W-DC5 3 8W 700lm~800lm
US-CL001A-4-12W-DC5 4 12W 1020lm~1140lm
US-CL001A-6-22W-DC5 6 22W 1760lm~1980lm
