TKL01 LED Track Light

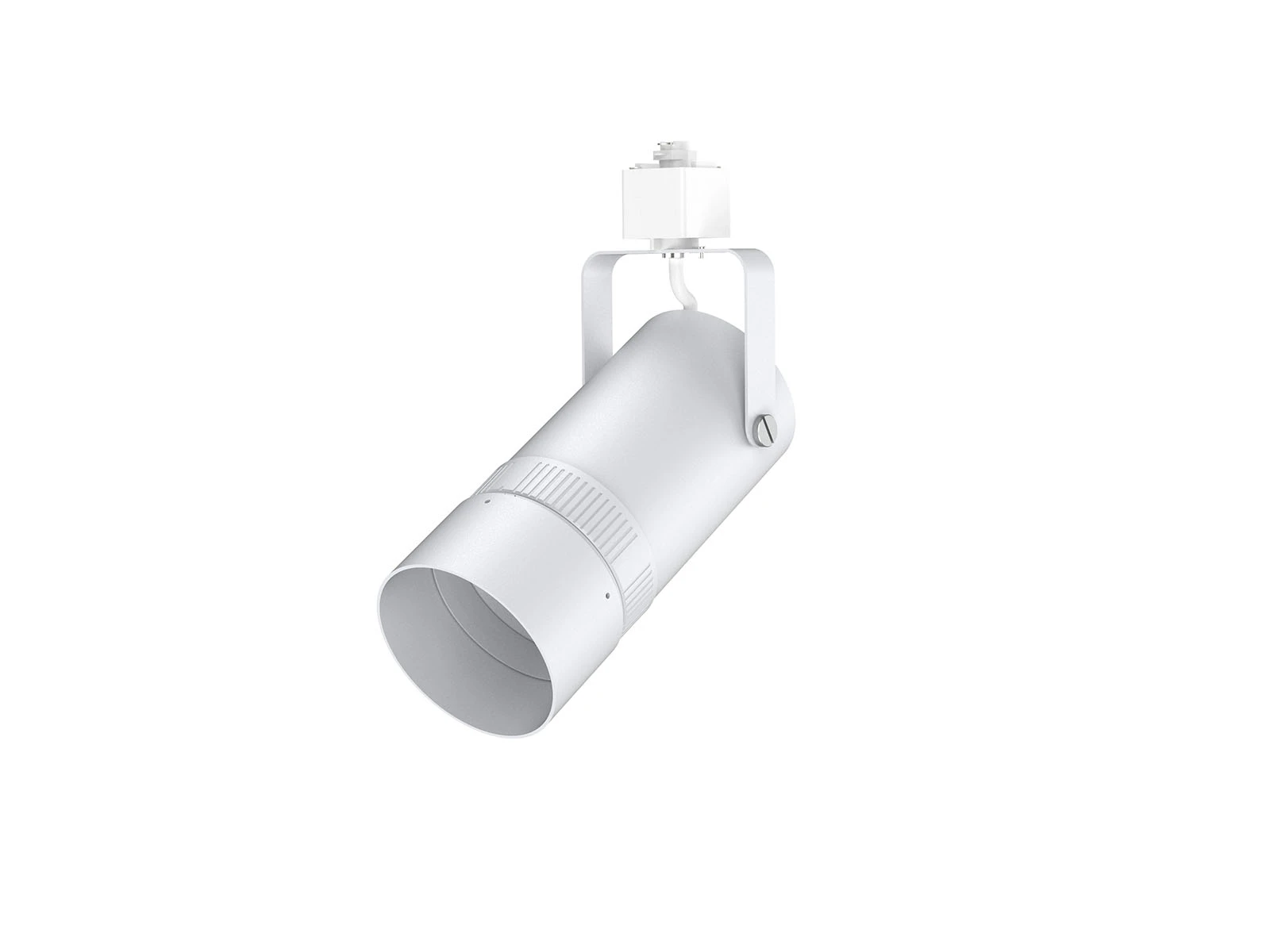

TKL01 LED Track Light 3

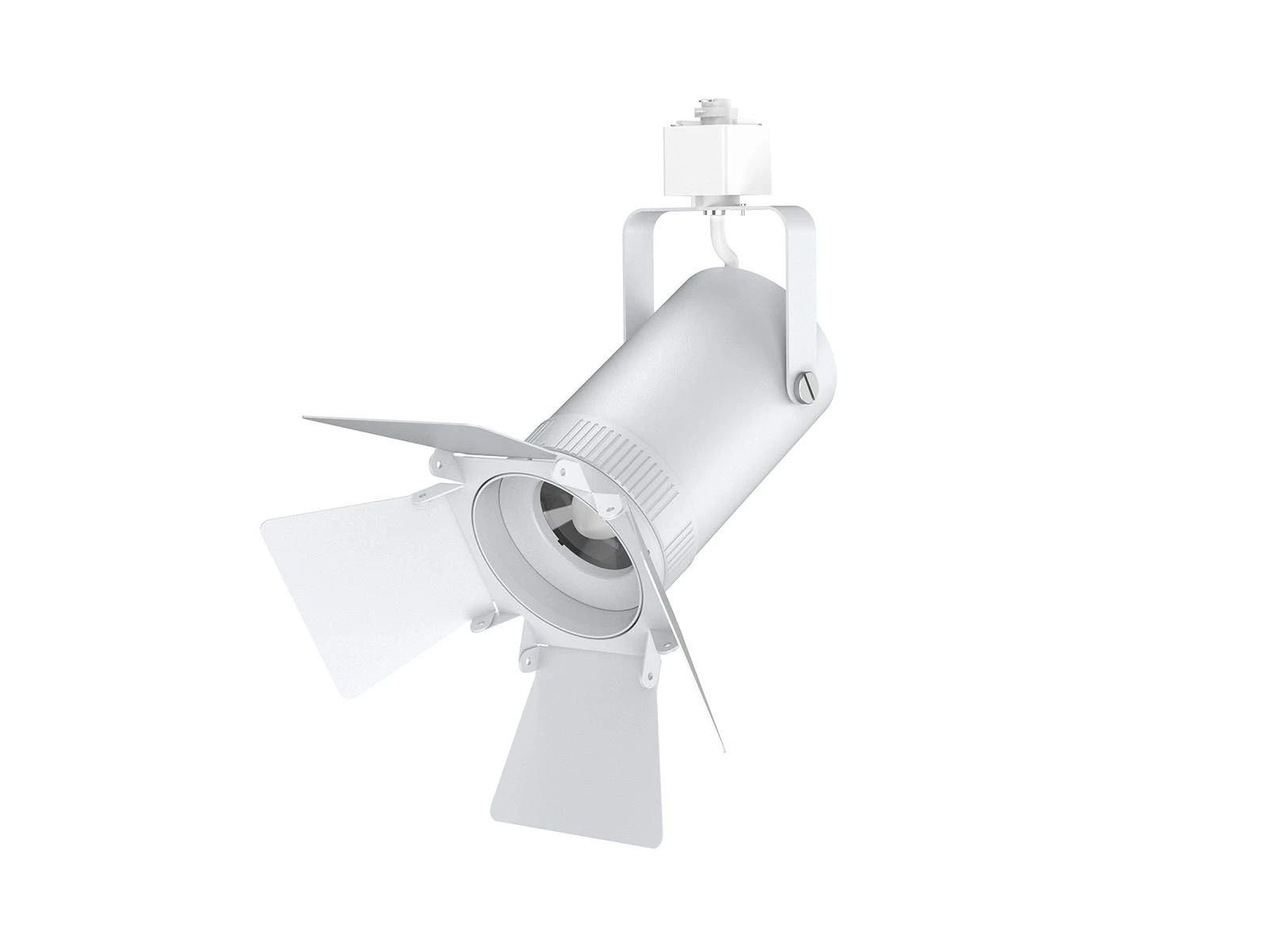

TKL01 LED Track Light 4

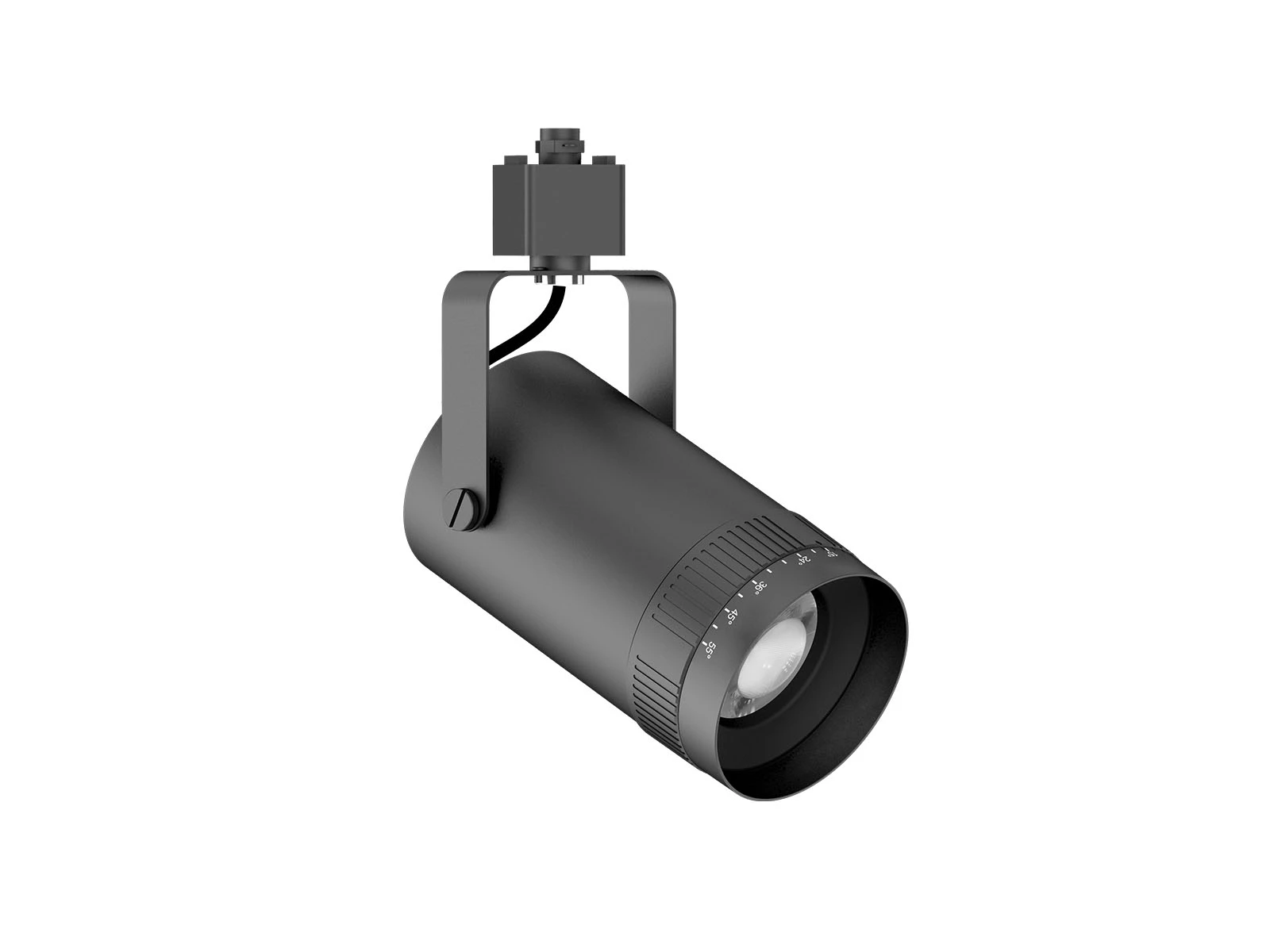

TKL01 LED Track Light 5

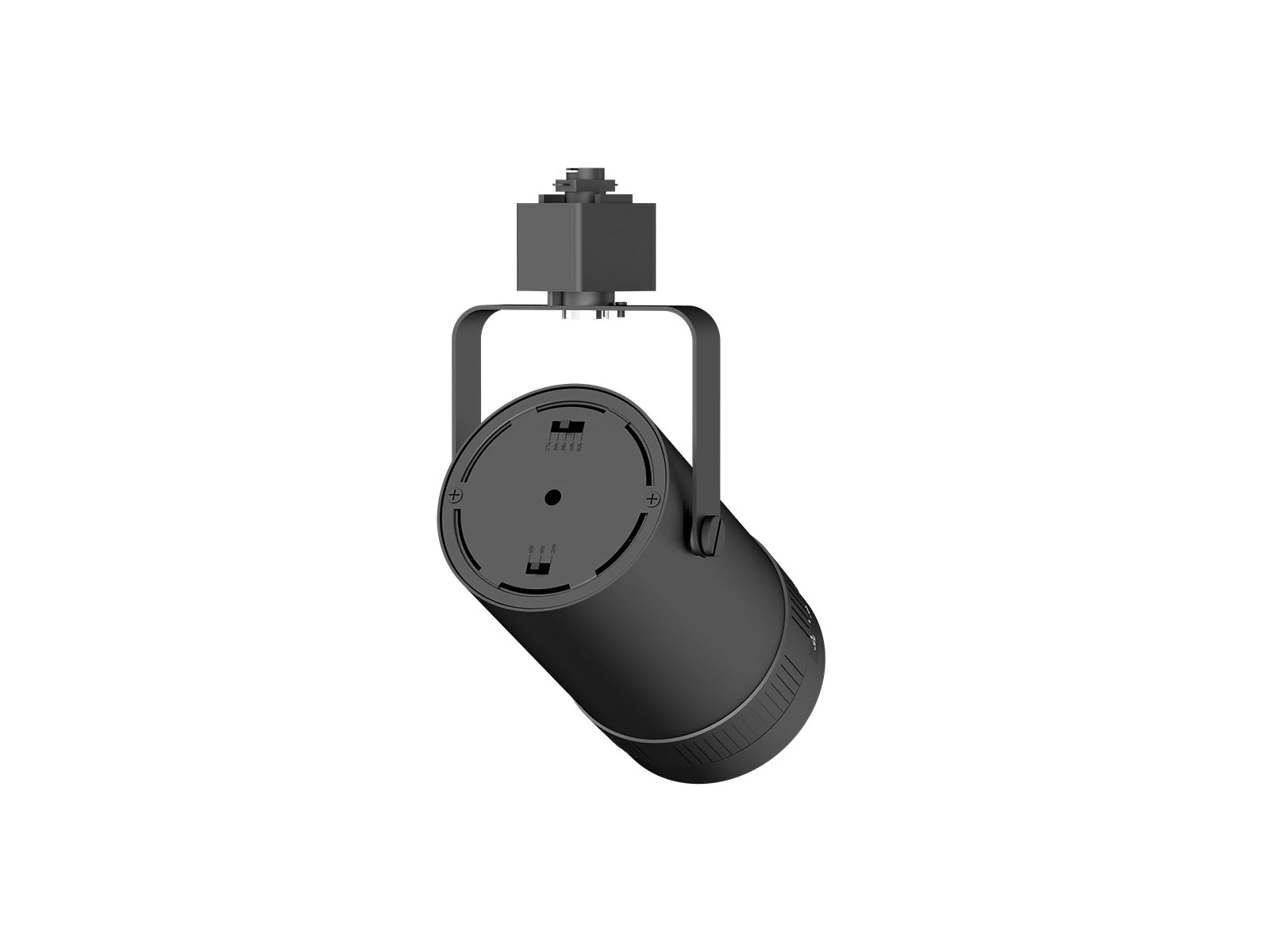

TKL01 LED Track Light 6
TKL01 LED Track Light
TKL01 LED Track Light 3
TKL01 LED Track Light 4
TKL01 LED Track Light 5
TKL01 LED Track Light 6
TKL01 LED Track Light
LED Track Lights
LED track light ZOOM TKL01 series is an indoor and commercial luminaire with an adjustable beam angle. The angle of the beam can be enlarged from 15°to 55°as required. Power and 5 CCT adjustable and triac dimming function is the best choice for museums and galleries, high CRI90 COB chip makes colors appear brighter and more vivid.
ul5warranty5cct-select3w-selecttriacdry-location90cri15-55deg
Datasheet IES Testing Report

Features

  • Field CCT & Power & Beam angle Adjustable 75 SKU in 1 fixture.
  • Adjustable beam angle by hand from 15° to 55° in one lamp.
  • 5CCT Selectable (2700K/3000K/3500K/4000K/5000K).
  • High CRI90 makes colors appear brighter and more vivid.
  • Rotation 350° (horizontal), adjustable to 180° (vertical).
  • High lumen COB chip and PMMA lens offer a uniform light output.
  • ADC12 Aluminum Die Casting housing provides excellent heat dissipation.
  • Compatible with HALO 3 wires single circuit track system.
  • Regular white and black finish for options, customized finish is available.

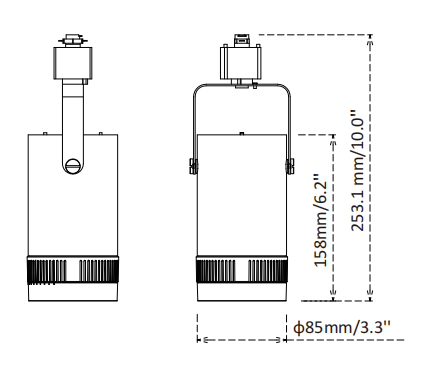

Dimension

TDL01 track light size

Performance Summary

Model NO. Size (mm) Watts CCT Efficacy Lumens (±10%) Voltage DIM CIR Beam Angle
TKL01-7W φ85*H253 7W Single CCT
2700K-6500K		 90lm/W 630LM AC120V Triac CRI>90 15°-55°
Adjustable
TKL01-10W φ85*H253 10W 900LM
TKL01-15W φ85*H253 15W 1350LM
TKL01-20W φ85*H253 20W 1800LM
TKL01-20W-A3C5 φ85*H253 10W/15W/20W Selectable 27/30/35/40/50K 5CCT Selectable 90lm/W 800-1700LM

Remarks: All above efficacy and lumens are subject to white finish @4000K,  black finish is less 10-15%, please check IES files for accurate data.
