DL003 LED Downlight
LED Downlights
DL003 downlight is a smart design that includes a junction box for standard installation and can be adapted for flush mounting with additional accessories, making it versatile for different environments. It offers 5 selectable colors temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K.
5warranty5cct-selecttriacdamp-location90cri110degetl
Datasheet IES Testing Report

Features

  •  Ultra thin flush mount downlight with 11/16'' thickness

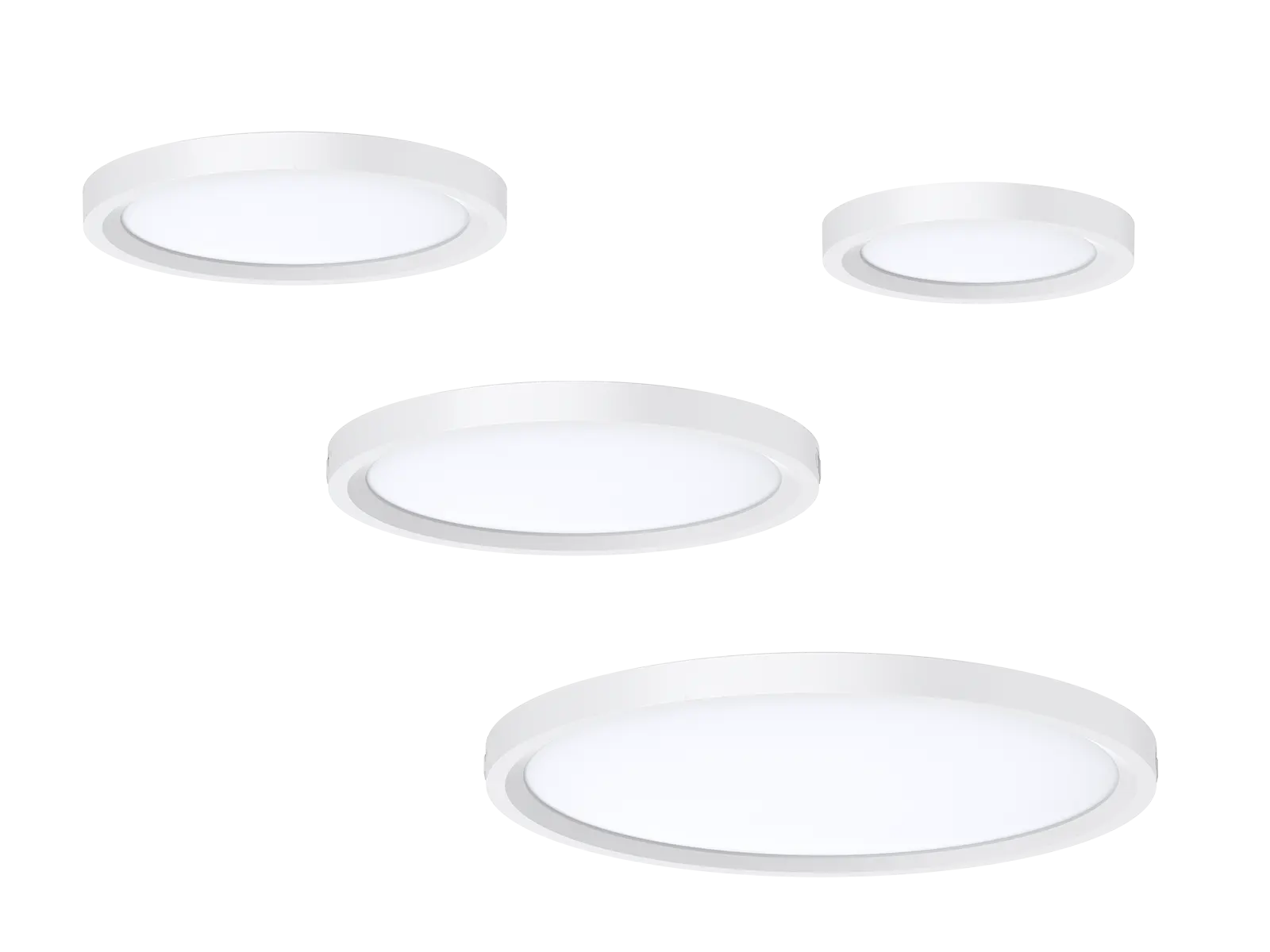

  •  Available in 5''/7''/9''/12'' diameters
  •  5 field-adjustable CCT in
  • 2700K+3000K+3500K+4000K+5000K
  •  PMMA light guide optimizes light uniformity
  •  Triac dimming @ AC120V

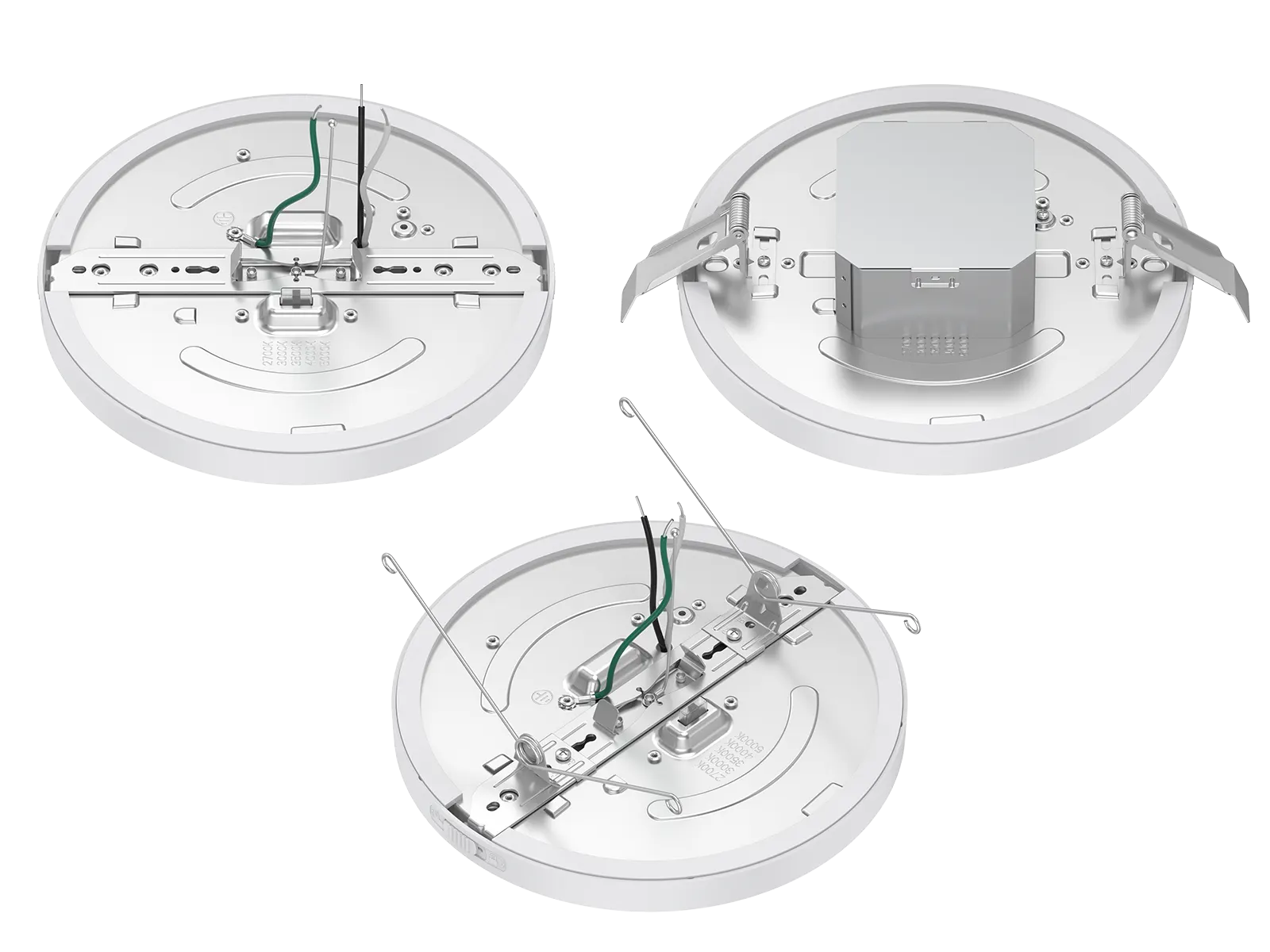

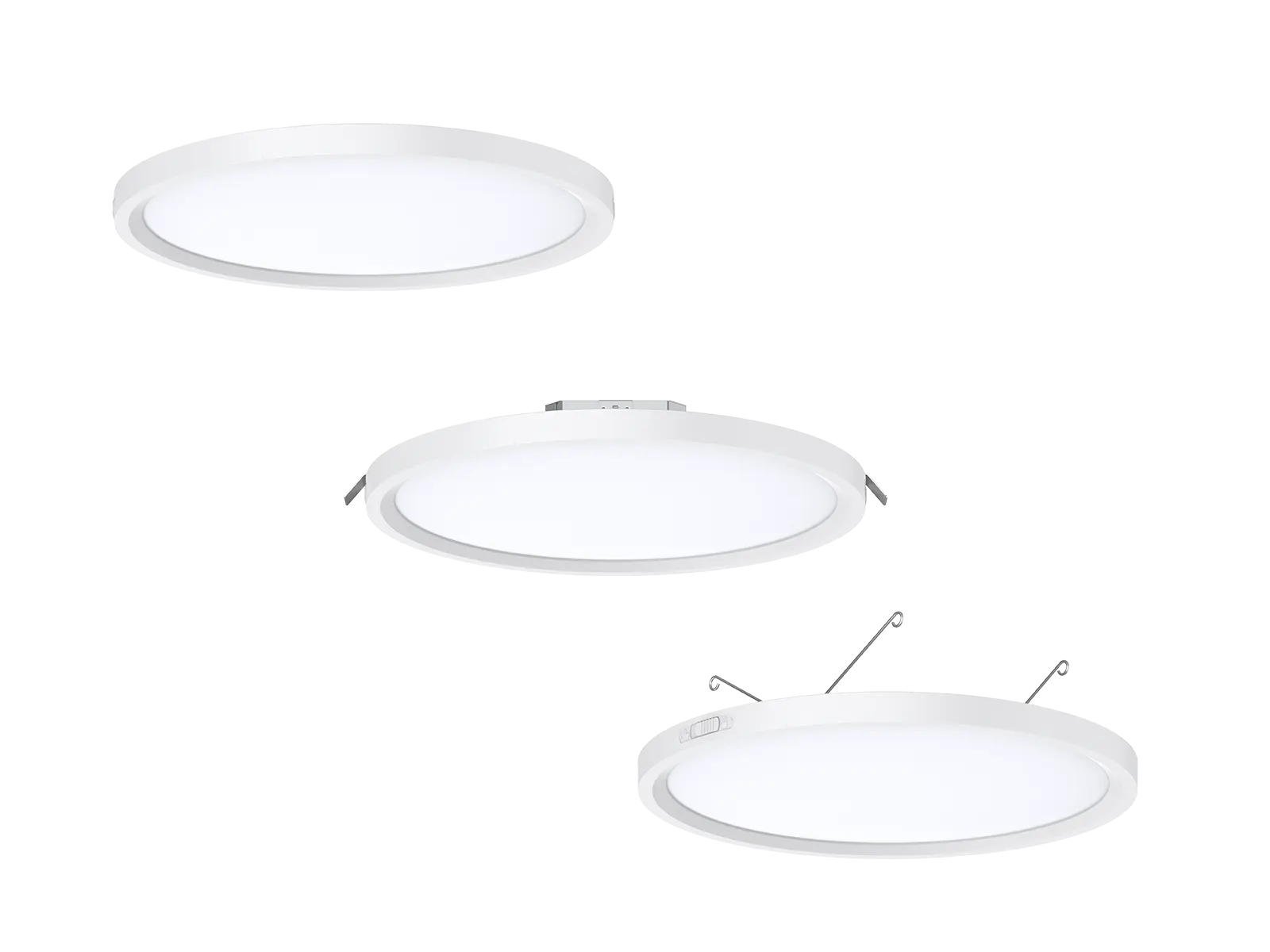

  •  1 lamp with 3 installation methods:pre-offered junction box, recessed can ,direct ceiling
  •  Damp Location
  •  IC rated

Dimension

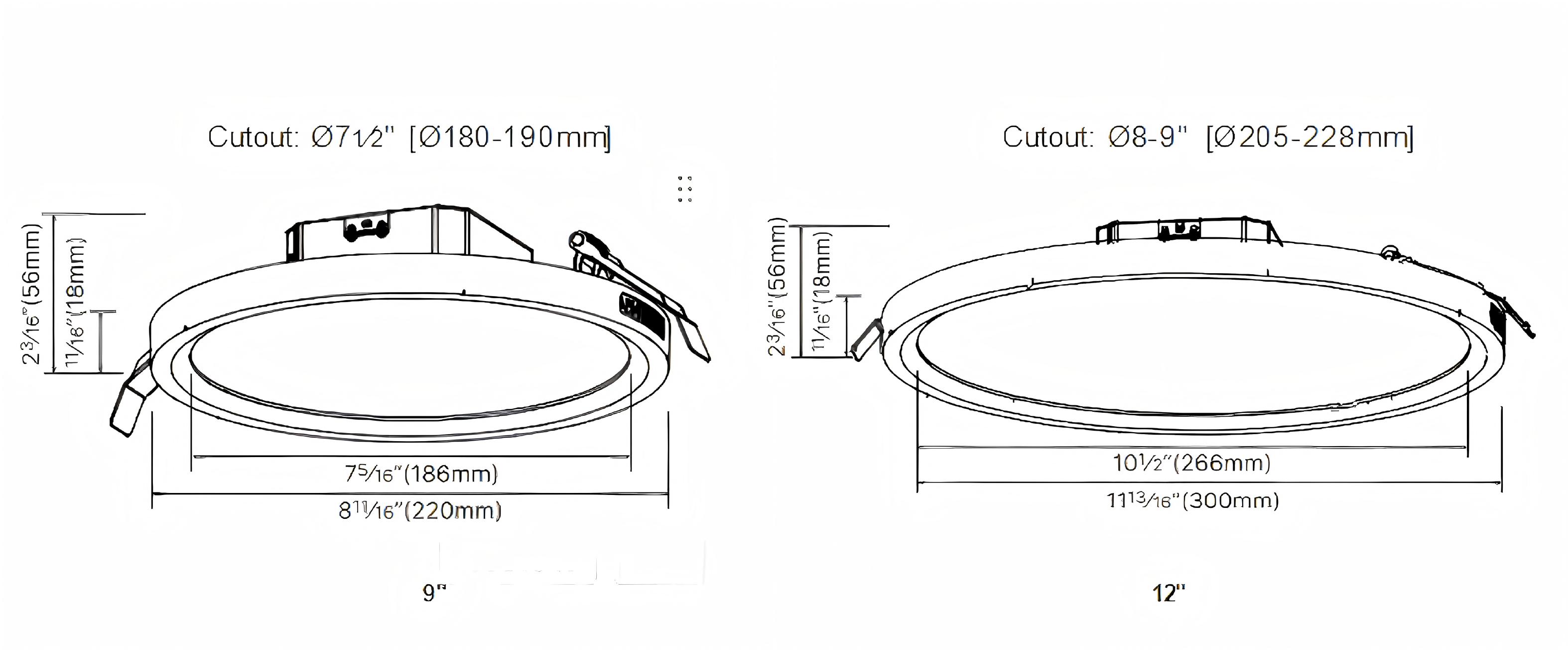

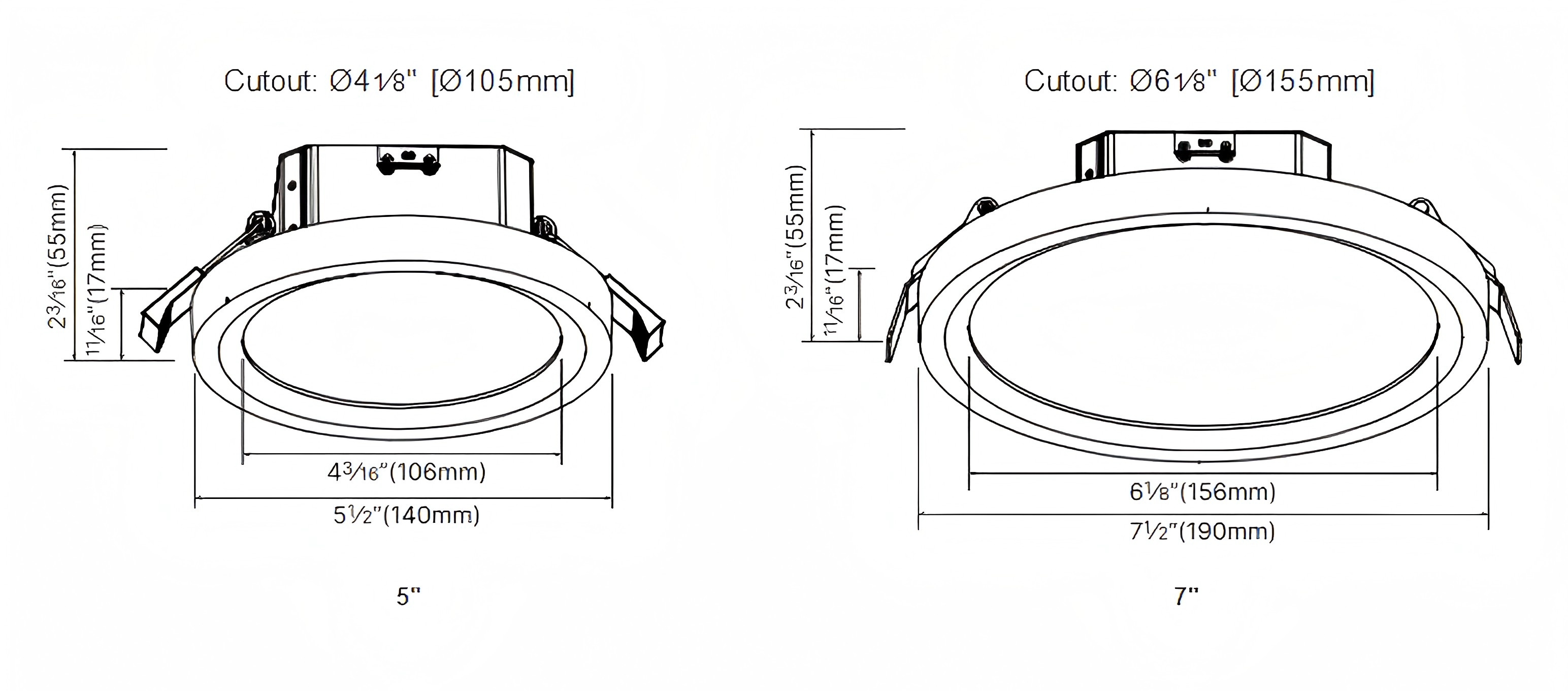

DL003 downlight 5&7 inch sizeDL003 downlight 9&12 inch size(1)

Performance Summary

Model NO.

Size (inch)

Watts

CCT

Efficacy

Lumens (±10%)

Voltage

CRI

DIM

Beam

Angle

DL003-5-10W-DC5

5

10W

5CCT Selectable

2700K+3000K+3500K+4000K+5000K

70-85lm/W

750-900lm

 AC120V

90

Triac

110°

DL003-7-12W-DC5

7

12W

80-90lm/W

950-1100lm

DL003-9-18W-DC5

9

18W

80-90lm/W

1400-1600lm

DL003-12-24W-DC5

12

24W

80-90lm/W

1900-2100lm

Remarks: All above efficacy and lumens are subject to white finish @4000K, black finish is less 10-15%, please check IES files for accurate data.
