DL001 LED Downlight

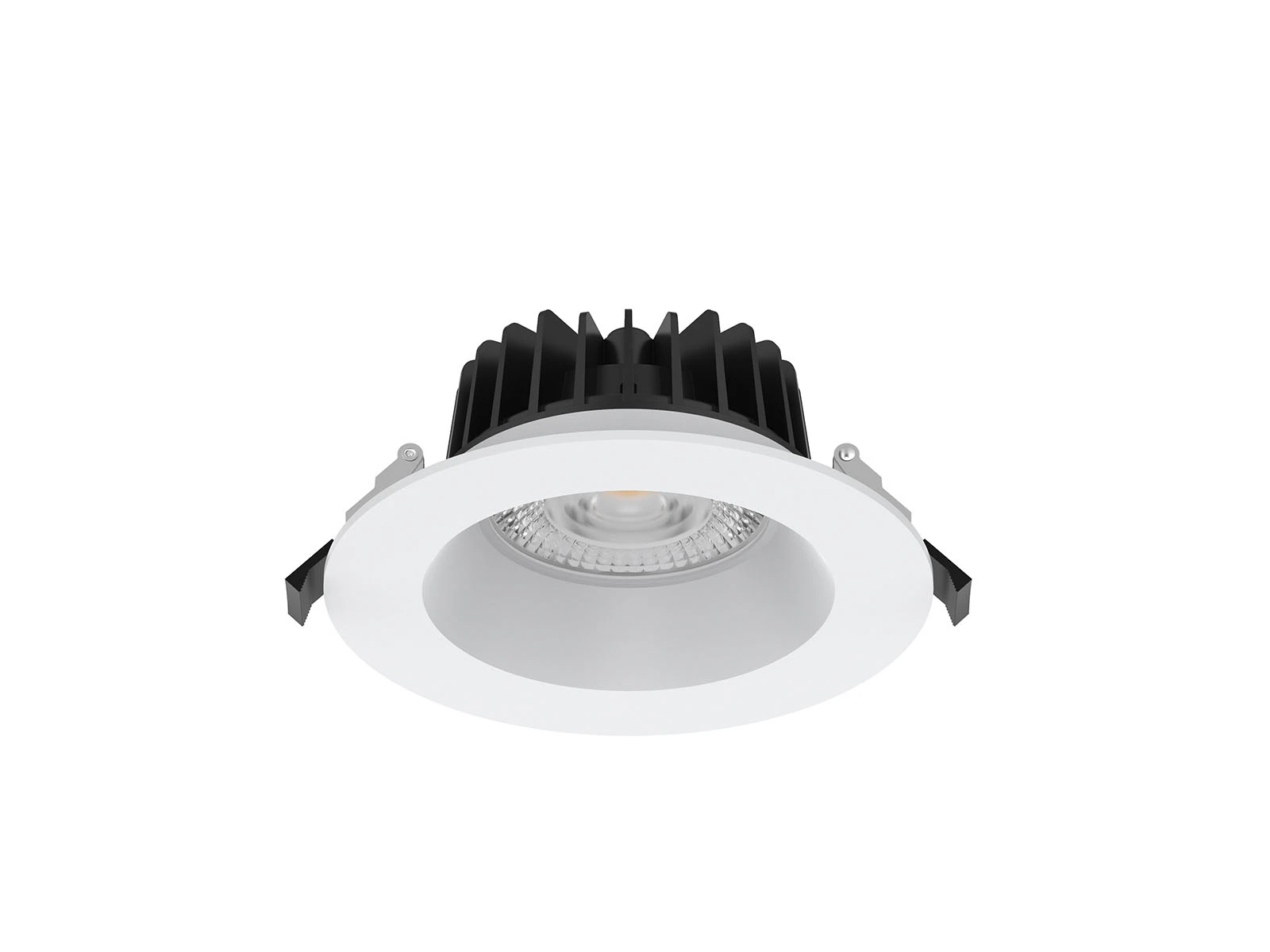

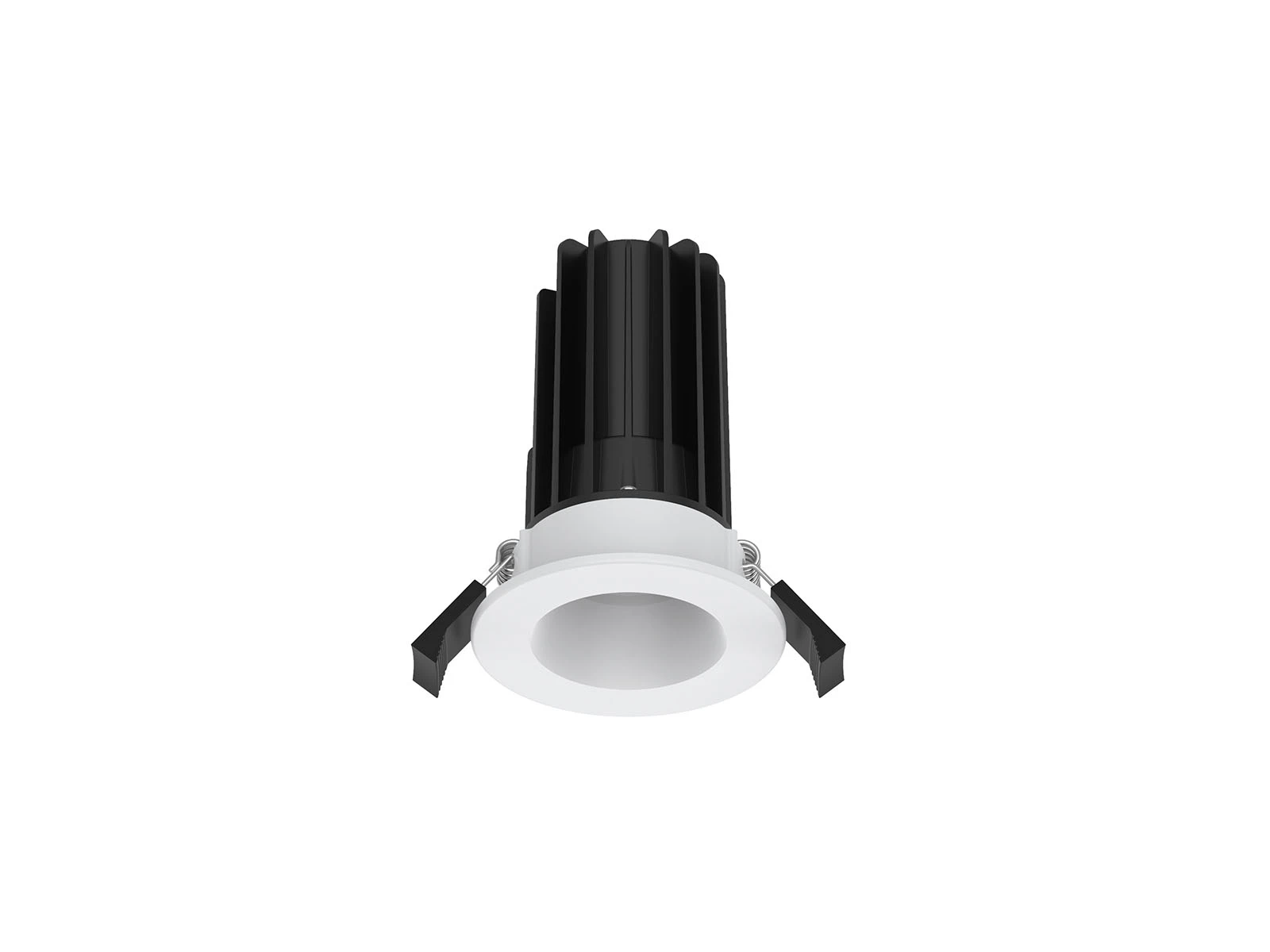

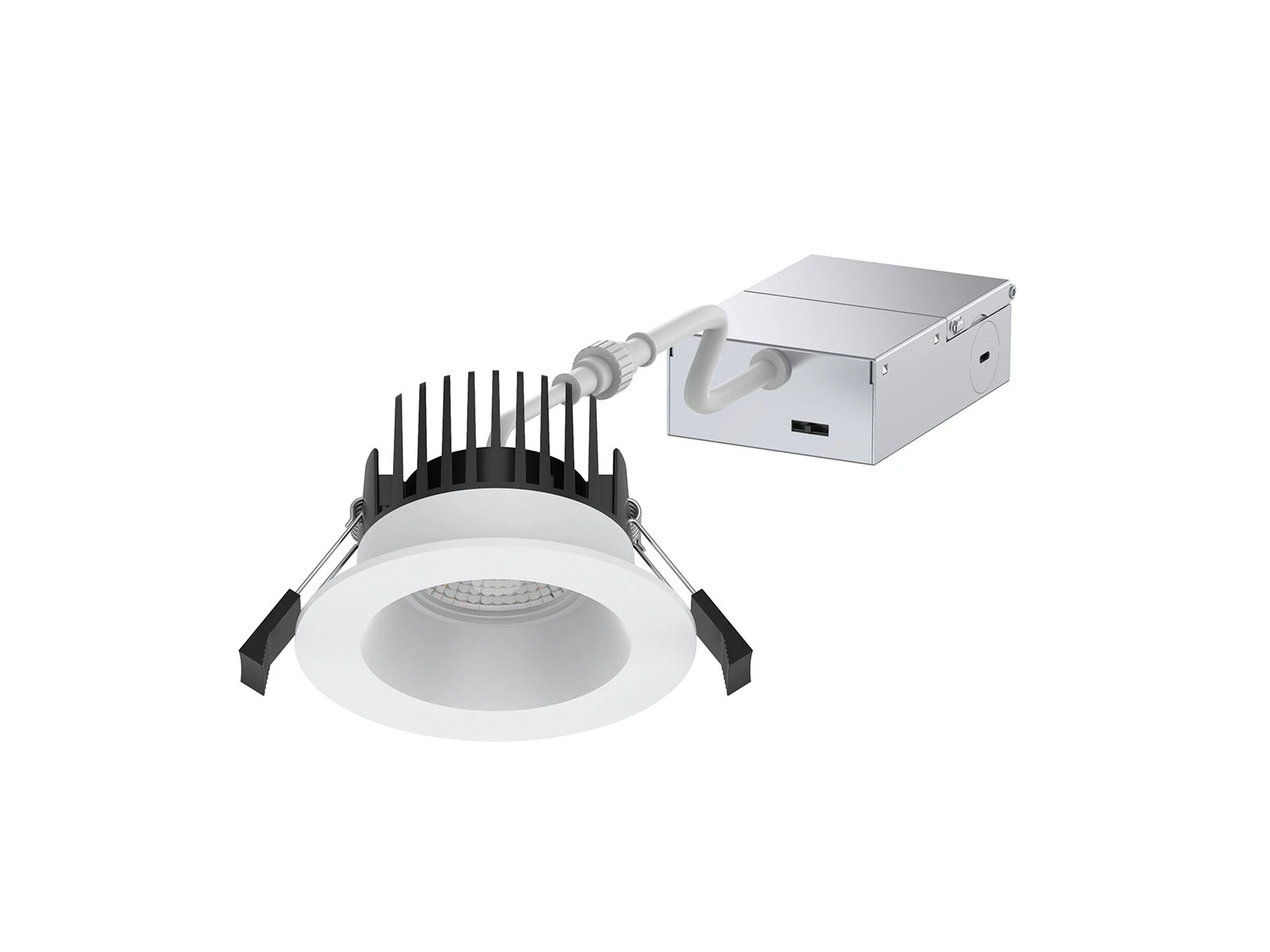

DL001 recessed downlight with both circular and square hole sizes, featuring an integrated heat sink module. The front covers are interchangeable and available in Baffle and Bevel, ensuring low UGR visual comfort. Whole series is offered in 3-inch, 4-inch, and 6-inch sizes, making it an ideal for various indoor lighting applications. Constructed from high-quality die-cast alloy aluminum(ADC12), suitable for use in residential and commercial applications.

Datasheet IES Testing Report

Features

Modular minimalist design, with interchangeable square and round trims
Two trim options available: Baffle and Bevel, providing uniform and soft lighting
Full range of sizes available: 3/4/6 inches, with cutout sizes conforming to standard North American dimensions
Made of ADC12 aluminum alloy, providing good heat dissipation
Triac dimming
5 CCT selectable by dip switch
Isolated flicker-free driver
High color rendering index: CRI 90

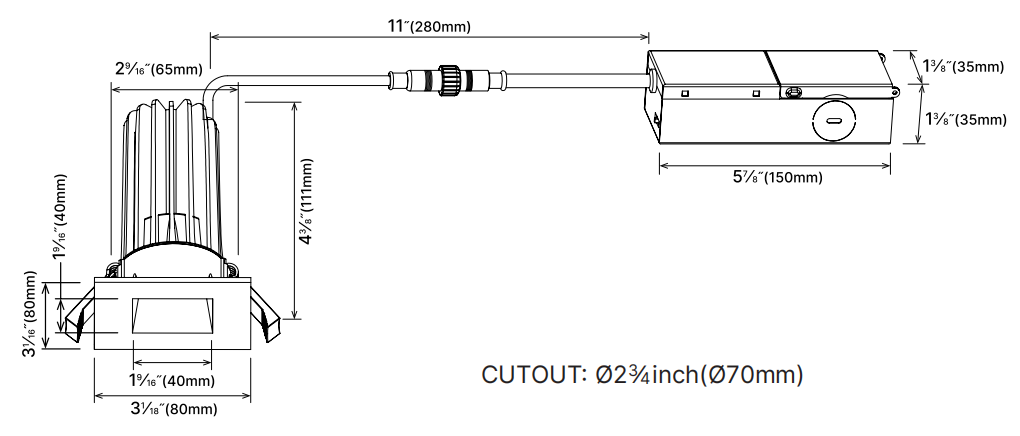

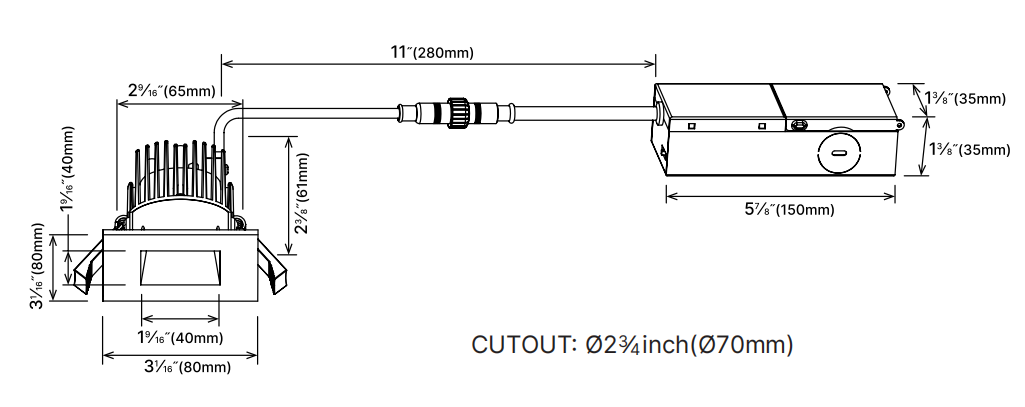

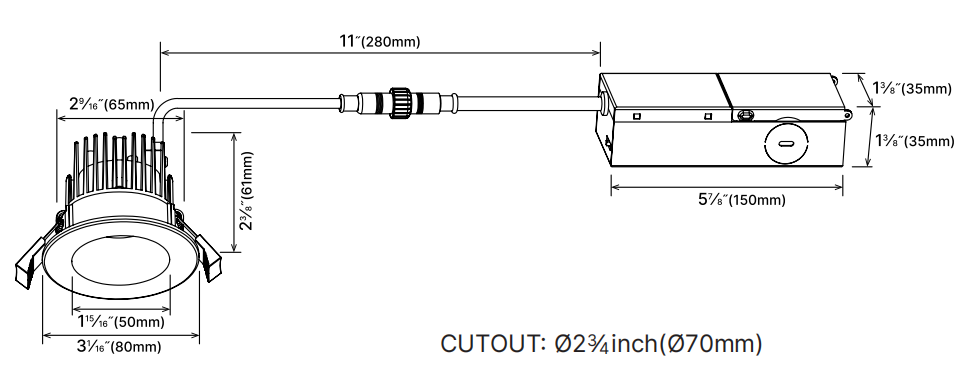

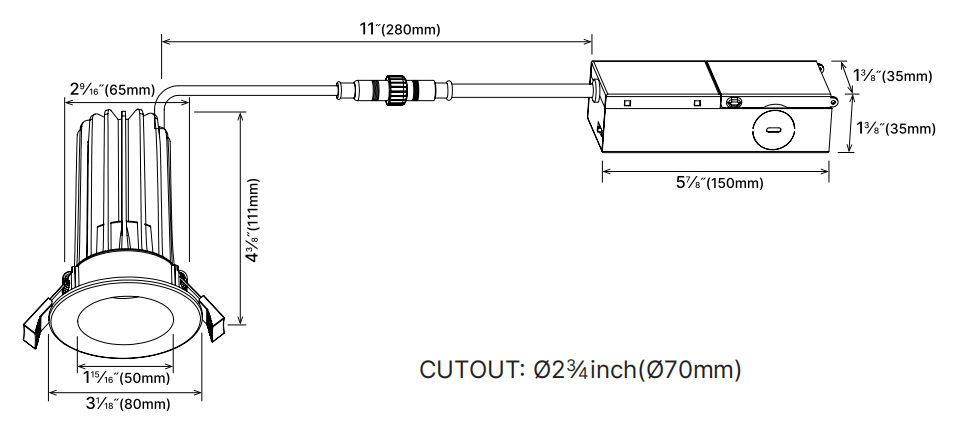

Dimension

Performance Summary

Model NO.	Size (inch)	Watts	CCT	Efficacy	Lumens (±10%)	Voltage	CRI	DIM	Beam Angle
US-DL001A-3-8W-DC5	3	8W	5CCT Selectable 2700K+3000K+3500K+4000K+5000K	80lm/W	640lm~720lm	AC120V	90	Triac	36°
US-DL001A-3-15W-DC5	3	15W			1150lm~1350lm
US-DL001B-3-8W-DC5	3	8W			560lm~640lm
US-DL001B-3-15W-DC5	3	15W			1000lm~1200lm
US-DL001A-4-15W-DC5	4	15W	5CCT Selectable 2700K+3000K+3500K+4000K+5000K	80lm/W	1200lm~1350lm	AC120V	90	Triac	36°
US-DL001A-4-24W-DC5	4	24W			1800lm~2160lm
US-DL001B-4-15W-DC5	4	15W			1050lm~1200lm
US-DL001B-4-24W-DC5	4	24W			1800lm~1920lm
US-DL001A-6-24W-DC5	6	24W	5CCT Selectable 2700K+3000K+3500K+4000K+5000K	100lm/W	2160lm~2400lm	AC120V	90	Triac	36°
US-DL001B-6-24W-DC5	6	24W	5CCT Selectable 2700K+3000K+3500K+4000K+5000K	100lm/W	2160lm~2400lm	AC120V	90	Triac	36°
