CL002 LED Downlight
CL002 LED Downlight 2
CL002 LED Downlight 3
CL002 LED Downlight 4
CL002 LED Downlight
CL002 LED Downlight 2
CL002 LED Downlight 3
CL002 LED Downlight 4
CL002 LED Downlight
LED Downlights
CL002 seamlessly integrates the features and aesthetics of downlights and Gimbal wall washing lights into a versatile design. This product is suitable for both down lighting and Gimbal wall washing applications, making it adaptable to a wide range of environments. The design specification is 3/4 inch, featuring ADC12 die-cast alloy aluminum for internal components and SCGG material for external fire resistance. CL002 is an ideal choice for both residential and commercial lighting solutions.
etl5warranty5cct-selecttriacwet-location90cri36deg
Datasheet IES Testing Report

Features

  • Unique minimalist curved exterior design.
  • 85 degree rotate vertically for both sides.
  • Can be used as general recessed lighting, as well as for accent and wall-washing lighting, making it widely applicable.
  • 3/4 inch sizes are available, with cutout sizes conforming to standard North American dimensions.
  • Made of die-cast aluminum, providing good heat dissipation.
  • Triac dimming. 5 CCT selectable by dip switch.
  • Isolated flicker-free driver.
  • High color rendering index: CRI 90.

Dimension

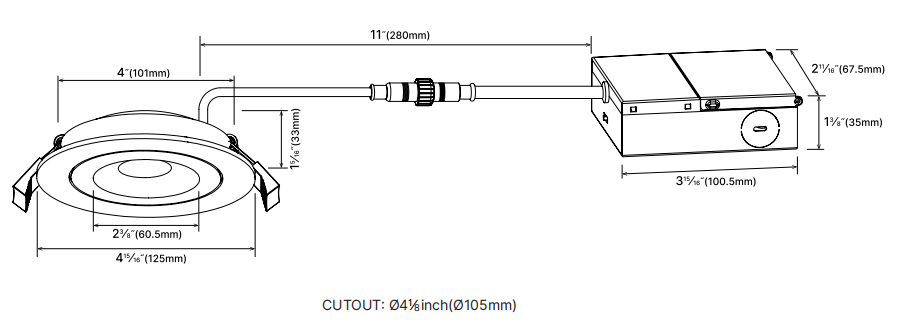

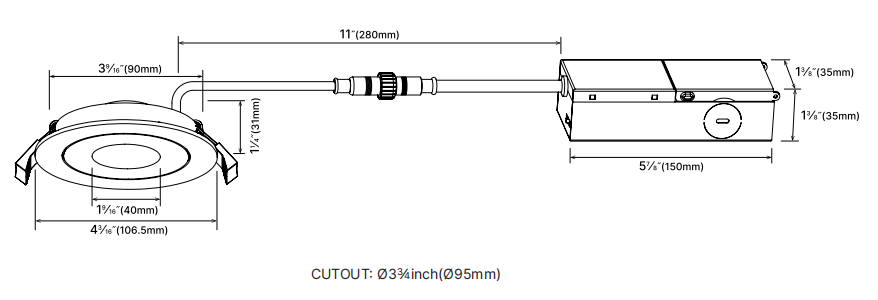

CL002 downlight 3 inch sizeCL002 downlight 4 inch size

Performance Summary

Model NO. Size (inch) Watts CCT Efficacy Lumens (±10%) Voltage CRI DIM Beam Angle
US-CL002-3-6W-DC5 3 6W 5CCT Selectable
2700K+3000K+3500K+4000K+5000K		 100lm/W 570lm~630lm AC120V 90 Triac 36°
US-CL002-4-10W-DC5 4 10W 90lm/W 800lm~900lm
