DL269 Series: Where Modern Design Meets Outdoor Resilience

| By

Professional-Grade Cylinder Lighting Engineered for Lasting Performance

Table of Contents

Reimagining Outdoor Illumination

Beyond merely lighting exterior spaces, the DL269 series redefines them. With its clean, minimalist silhouette and a distinctive wavy reflective cup, this surface-mounted downlight delivers a distinctly modern aesthetic. The design masterfully blends sharp contemporary lines with a subtle, inviting warmth, creating visual interest that endures day and night. Engineered for the outdoors, it offers not just style, but unwavering durability and superior light quality.

Engineered for Endurance & Visual Comfort

Crafted from die-casting aluminum housing and sealed with tempered glass, the DL269 is built to withstand the elements, achieving a robust IP65 waterproof rating and IK06 impact resistance. Its deep, bright silver reflector is key to minimizing glare, ensuring comfortable visibility. The series offers two professional optical paths to suit any application:

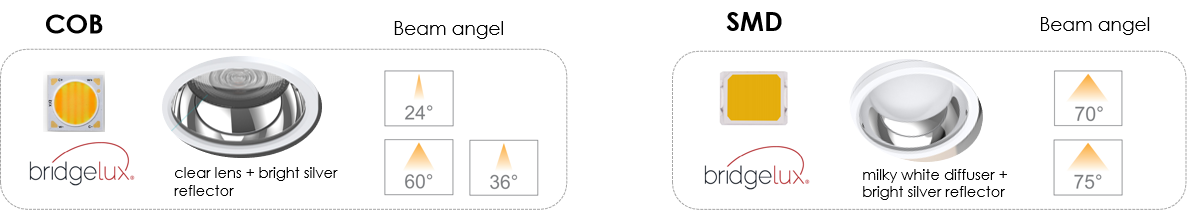

· Type A (COB with Lens): Delivers precise, focused beams (24°/36°/60°) with ultra-low glare (UGR<19), perfect for accent and architectural highlighting.

· Type B (SMD with Diffuser): Provides wide, uniform illumination (70°/75°) with a soft light quality (UGR<25), ideal for general area and pathway lighting.



Why the DL269 Series is the Superior Choice？

· Uncompromised Performance: Features high-reliability Bridgelux LEDs and a flicker-free internal driver for consistent, eye-comfortable light.

· Precise Light Control: Choose from two specialized optics for either dramatic accent or generous area lighting, both engineered for low glare.

· Professional-Grade Quality: Outstanding CRI90 ensures true, vibrant color rendition, while selectable CCT (3000K/3500K/4000K) offers full creative control over ambiance.

· Universal Compatibility: Supports Triac & ELV dimming on models below 35W (120V), and 0-10V dimming for higher-wattage models (120-277V), ensuring seamless integration.

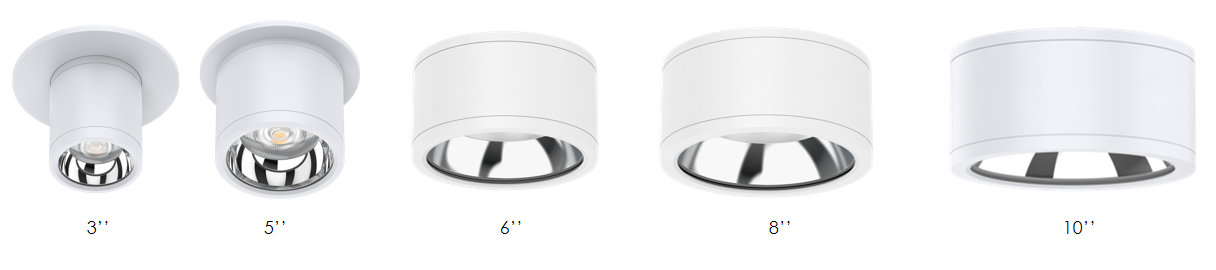

· Scalable Solution: Available in 3, 5, 6, 8, and 10-inch diameters to perfectly scale with any project size and requirement.

Technical Specifications at a Glance

· Sizes: 3", 5", 6", 8", 10"

· IP Rating: IP65 (Dust-tight & protected against water jets)

· IK Rating: IK06 (Impact resistant)

· Color Options: Selectable 3CCT (3000K/3500K/4000K)

· Color Rendering: CRI 90

· Dimming: <35W: Triac/ELV; ≥35W: 0-10V (120-277V)

The DL269 series is the definitive solution for architects and designers who refuse to compromise. It bridges the gap between sophisticated, modern design and the rigorous demands of outdoor performance. From highlighting architectural façades to safely illuminating walkways, it provides the reliability, flexibility, and aesthetic integrity required for premium commercial and residential exterior projects. Choose DL269 to elevate your outdoor environment with light that is both beautiful and built to last.
