LED Downlights
CLD001（code PD12）LED Track Light features an ultra-slim design with 1.5'' and 2'' diameters. The acrylic diffuser accessory adds a distinctive appearance. It uses high-quality CRI90 LEDs with 3CCT selectable, and supports Triac dimming at AC120V. Trim Version with 24°/36°/55° and  Acrylic Mask Version with 35°/40°/60° or 40°/60°/65°, to suit specific lighting needs. And is available with three installation options: surface mount, pendant, and track pendant.
etl5warranty3cct-select3w-selecttriac90cri15-55deg
Datasheet IES Testing Report

Features

  • The fixture delivers elegant, direct illumination with high CRI 90 LED performance.
  • Interchangeable trim and acrylic diffuser-perfect for tailoring the look to match diverse environments or design preferences.
  • 3 field-adjustable CCT in 2700K, 3000K and 4000K.
  • Wattage can be selectable via DIP switch.

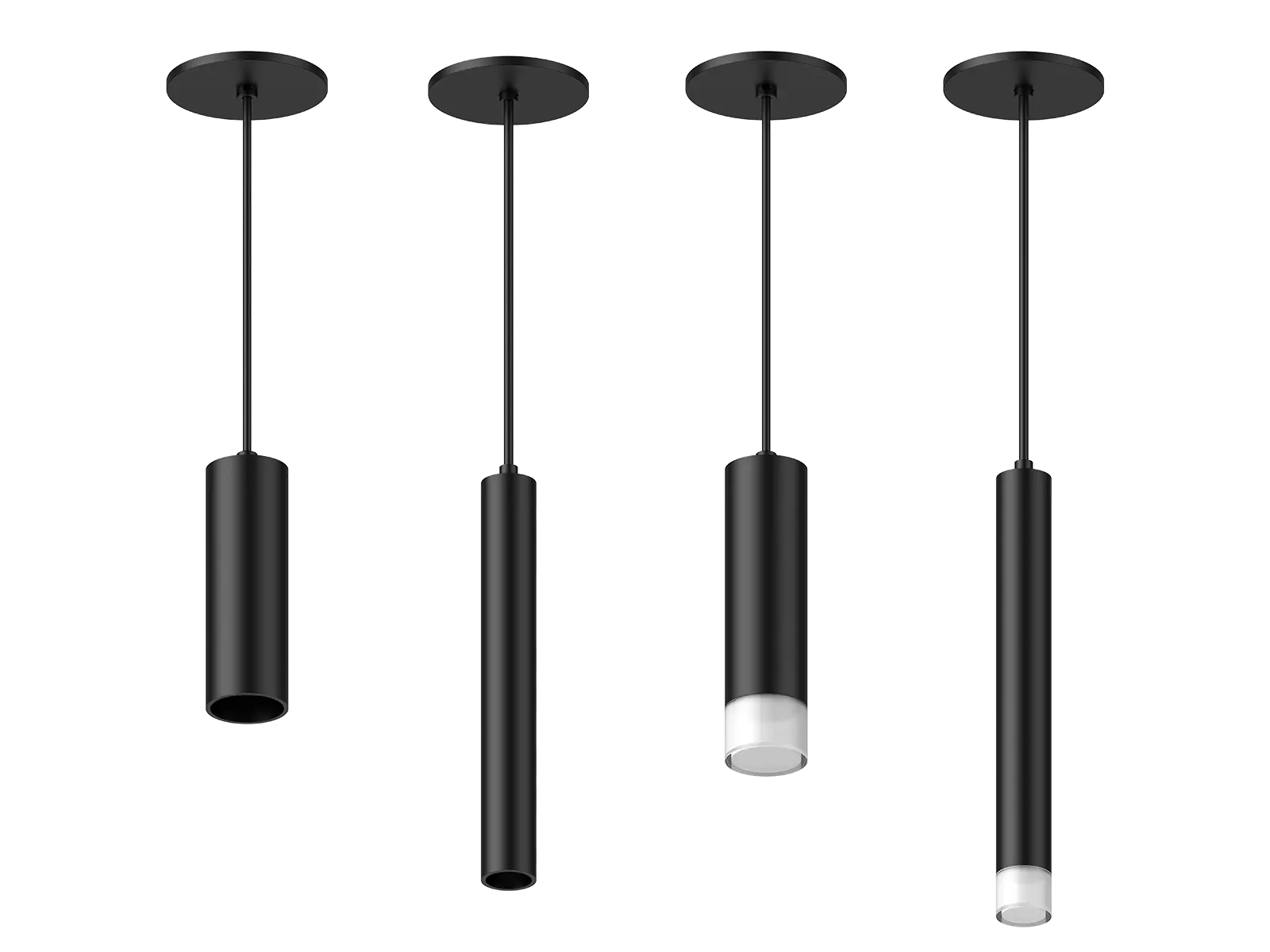

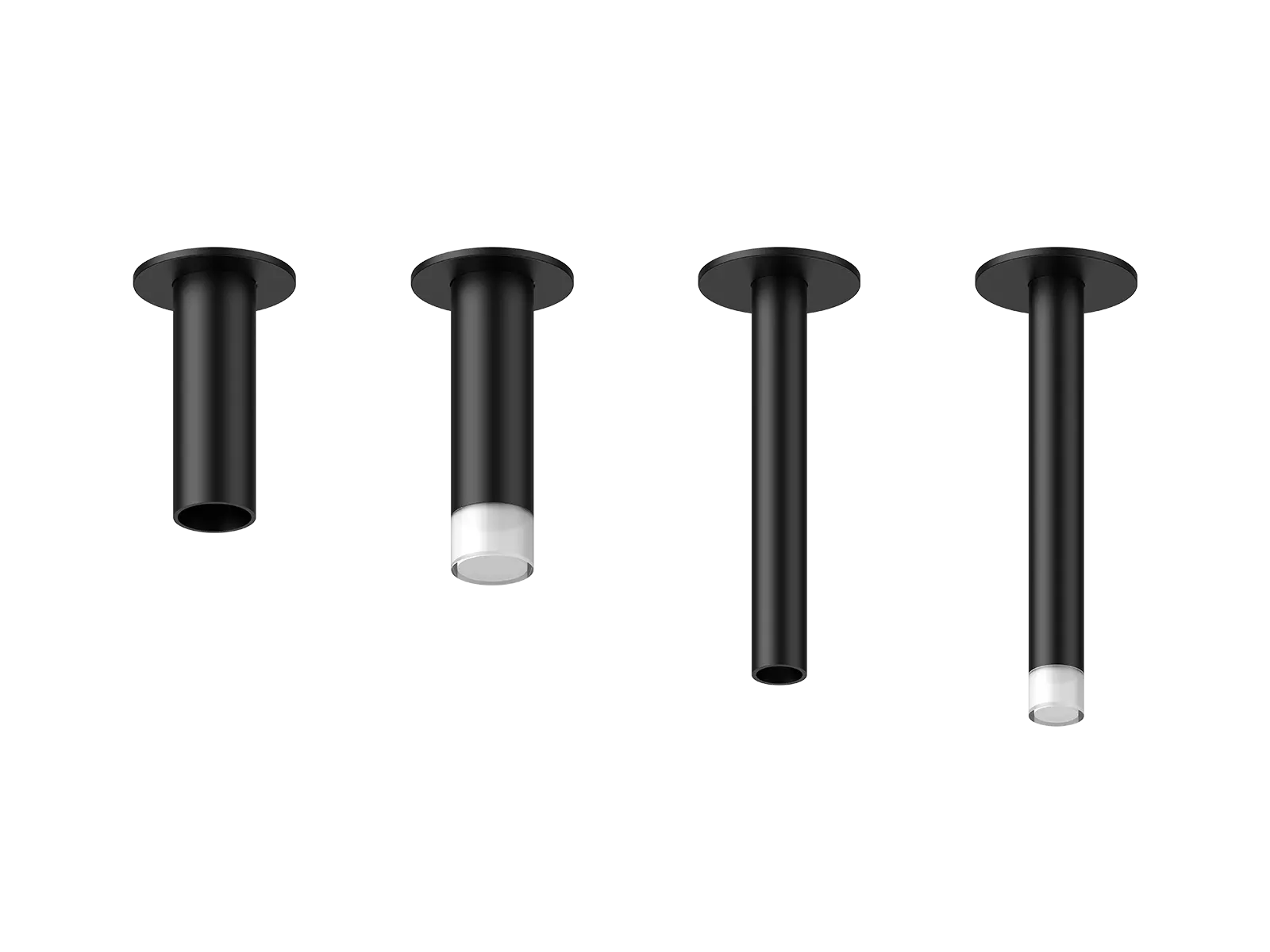

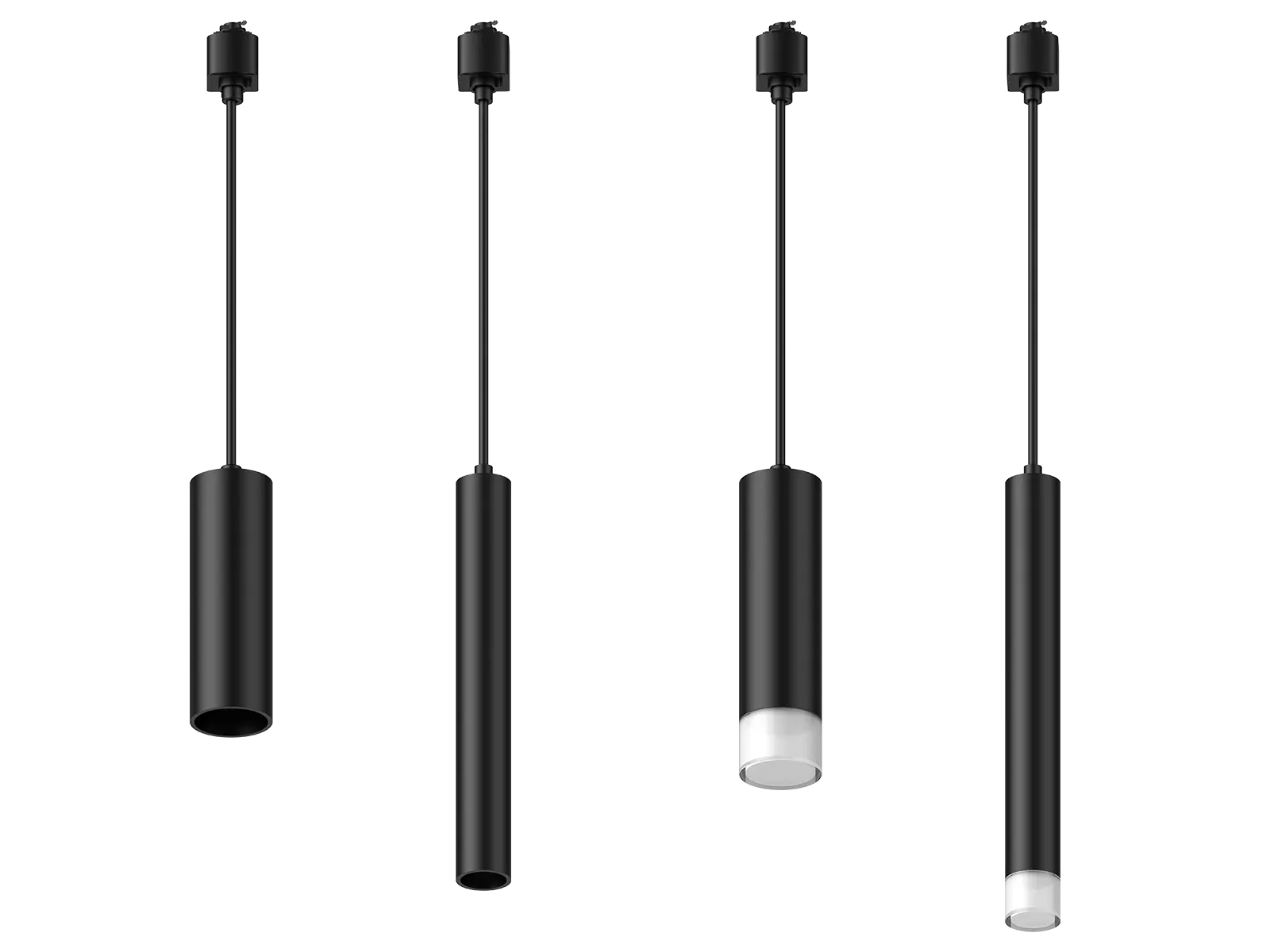

  • The cylinder can be converted to surface mounted, pendant and track pendant installation with optional accessories.
  •  AC120V Triac dimmable.

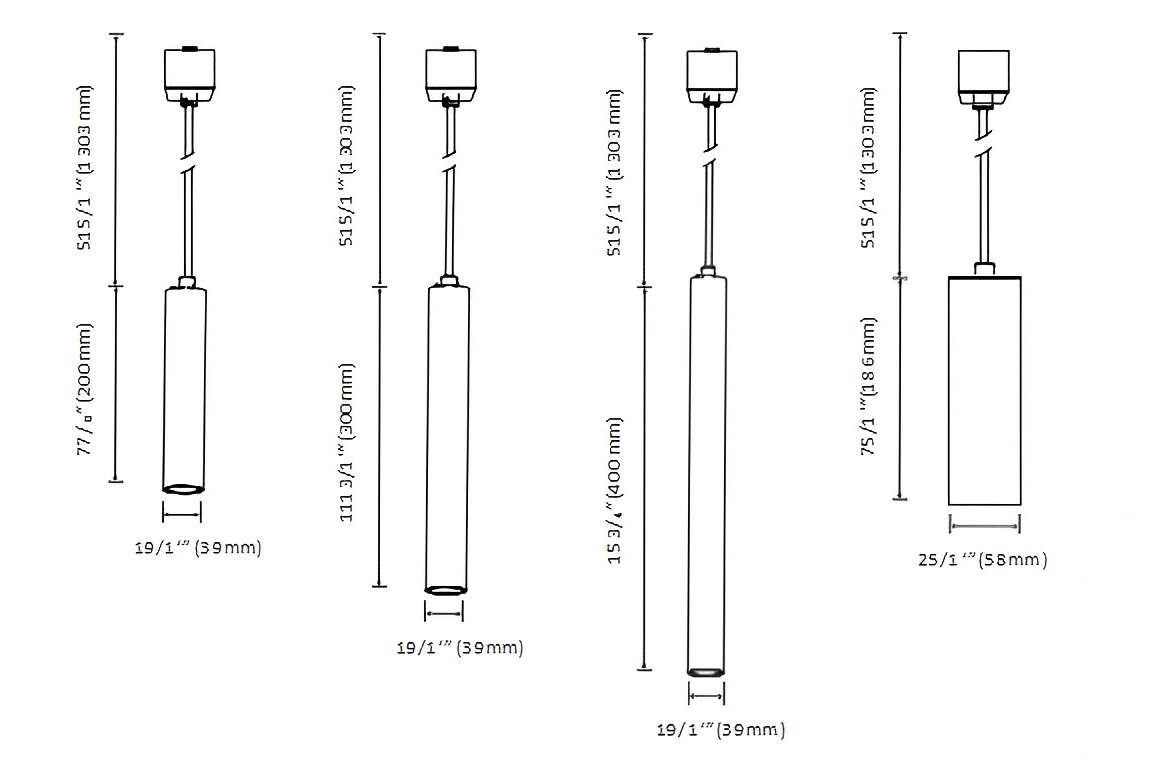

Dimension

CLD001(PD12) LED Downlight 1.5 2 inch size

Performance Summary

Model No.

Watts

CCT

Efficiency

Lumens

(±10%)

Voltage

DIM

UGR

CRI

Beam angle

CLD001-1.5-8W-DC3 Ceiling mount





8W









3CCT Selectable

2700K+3000K+4000K





70-86lm/W





595-685lm











AC120V











Triac





<22











90











24°/36°/55°

CLD001-1.5-8W-DC3 Pendant mount

CLD001-1.5-8W-DC3 Track pendant

CLD001-2-10W-D3C3 Ceiling mount



3 Wattage

Selectable

10W, 8W, 6W



10W: 70-85lm/W

8W: 75-86lm/W

6W: 78-90lm/W



10W: 730-835lm

8W: 615-705lm

6W: 454-525lm





<19

CLD001-2-10W-D3C3 Pendant mount

CLD001-2-10W-D3C3 Track pendant
